AMX Wireless Touch Panels (Wave Server) Instruction Manual page 99

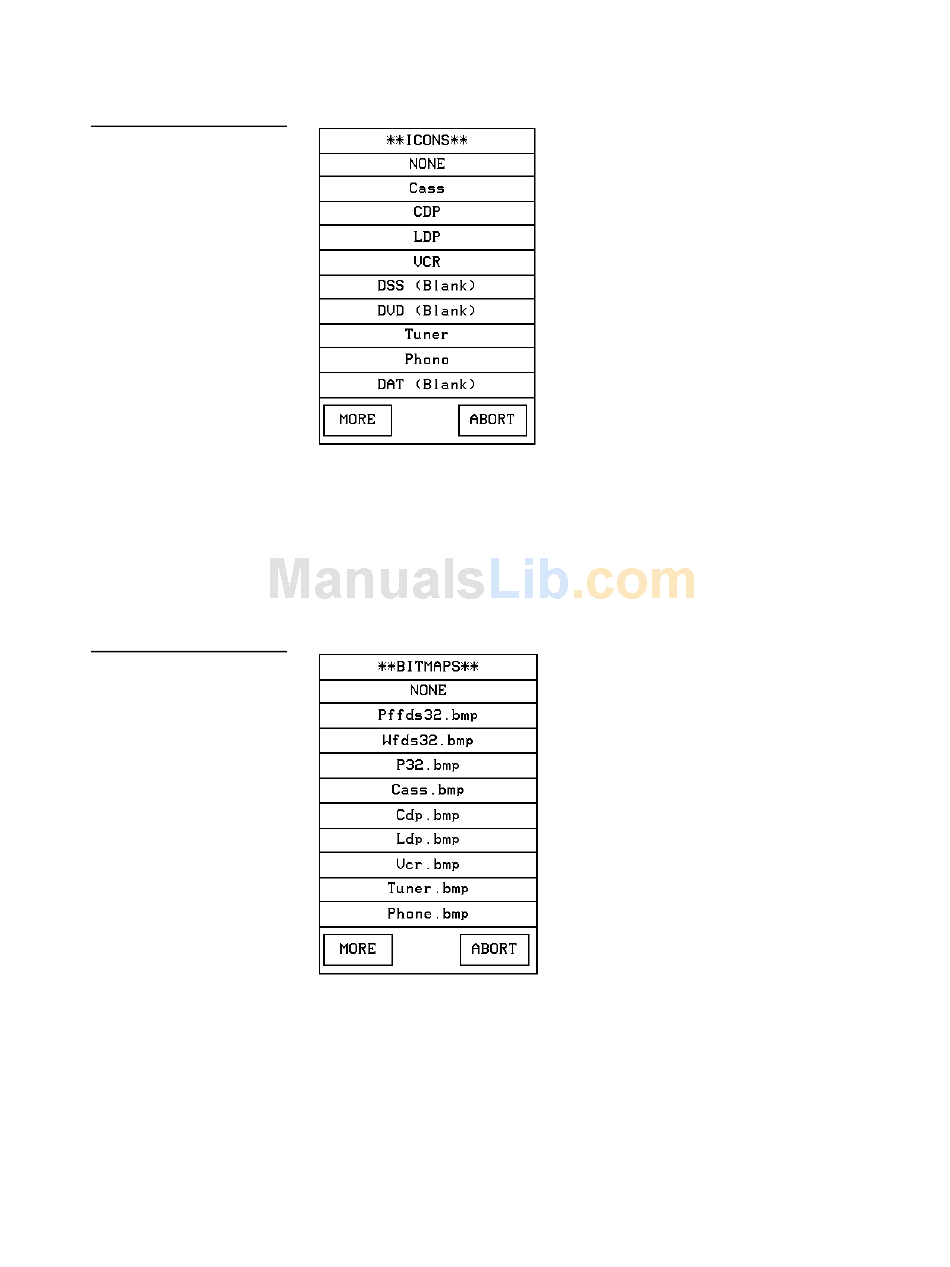

Figure 137
ICONS menu
Figure 138
BITMAPS menu
ViewPoint Wireless Touch Panels
•
Opens the BITMAPS menu (Figure 138) where you can
BITMAP OFF
select the bitmap to appear on the Off-state of the button. Select MORE to
view more bitmap files or ABORT to exit and return to the Text/Image page.
• Opens the BITMAPS menu (Figure 138) where you can
BITMAP ON
select the bitmap to appear on the On-state of the button. Select MORE to
view more bitmap files or ABORT to exit and return to the Text/Image page.
•
SET TEXT ALIGNMENT
Figure 139 shows the SET TEXT ALIGNMENT menu textually for each
button. The text references do not appear on the actual Set Text Alignment
page.
Sets the text alignment on a button.
Touch Panel Program Reference 89
