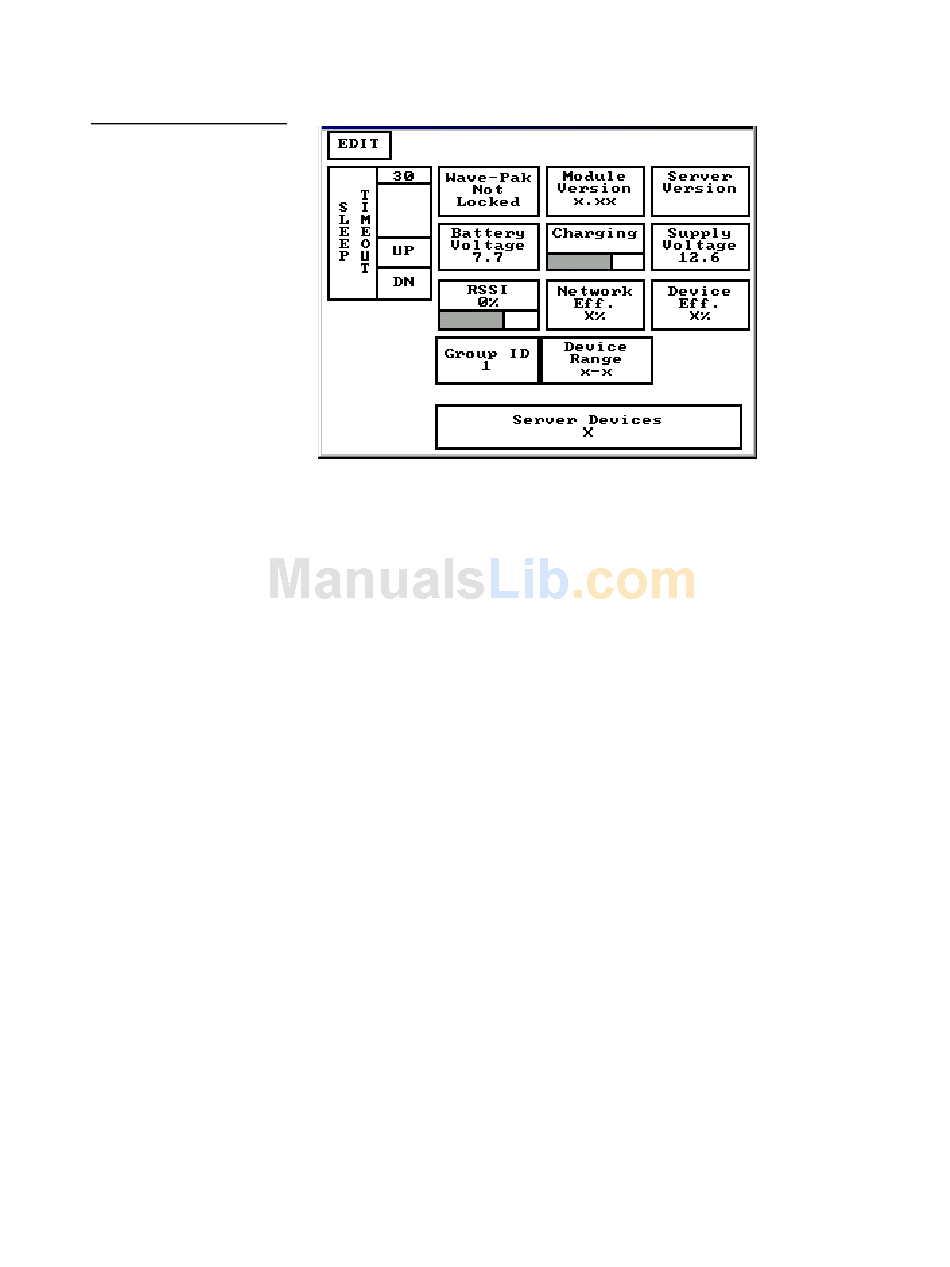

Figure 92
Wireless status for VPW-CP
and VPW-CP touch panels.
ViewPoint Wireless Touch Panels

Wave-Pak not locked

Does not apply to the VPW-CP or VPW-GS touch panels.

Module version

Does not apply to the VPW-CP or VPW-GS touch panels.

Server version

Identifies the operating version of the AXR-WAVES WaveServer firmware.

RSSI

Radio signal strength indicator showing the relative signal strength in percent and
visual horizontal bargraph.

Network Eff.

Operating efficiency (shown in percentage) of the current network that the VPW-CP
or VPW-GS is a part of.

Device Eff.

Operating efficiency (shown in percentage) of the VPW-CP or VPW-GS.
Touch Panel Program Reference 69
