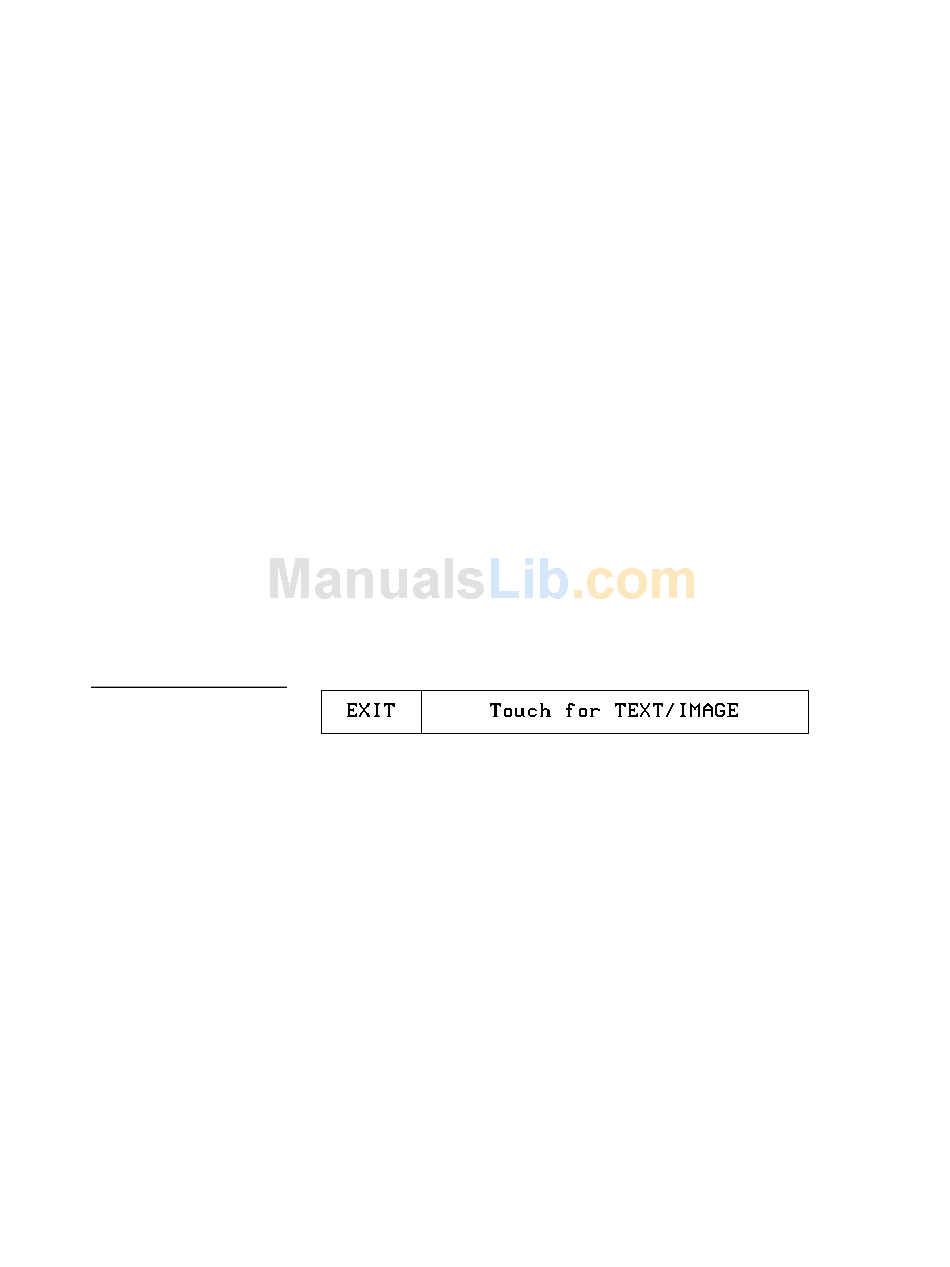

Figure 43
TEXT/IMAGE operation bar
ViewPoint Wireless Touch Panels
4. Press black to set the border color.
5. Press the FILL button in the Button Properties page to open the color palette.
6. Press white to set the fill color.
7. Press the TEXT button to open the palette
8. Press red to set the text color
Press EXIT SAVE CHANGE in the Button Properties page to store the new
9.
button properties into memory and return to the current page
10. Press EXIT on the PROPERTIES operation bar

Adding text to a button

Use the BUTTON option in the Edit bar to add text to buttons, joysticks, and
bargraphs.
Press EDIT to open the Edit bar.
1.
2. Press BUTTON on the Edit bar to open the BUTTON menu.
3. Press TEXT/IMAGE to add text into the button. The TEXT/IMAGE operation
bar shown in (Figure 43) appears.
4. Press the target button to open the Text/Image page shown in Figure 44.
Designing Touch Panel Pages 33
