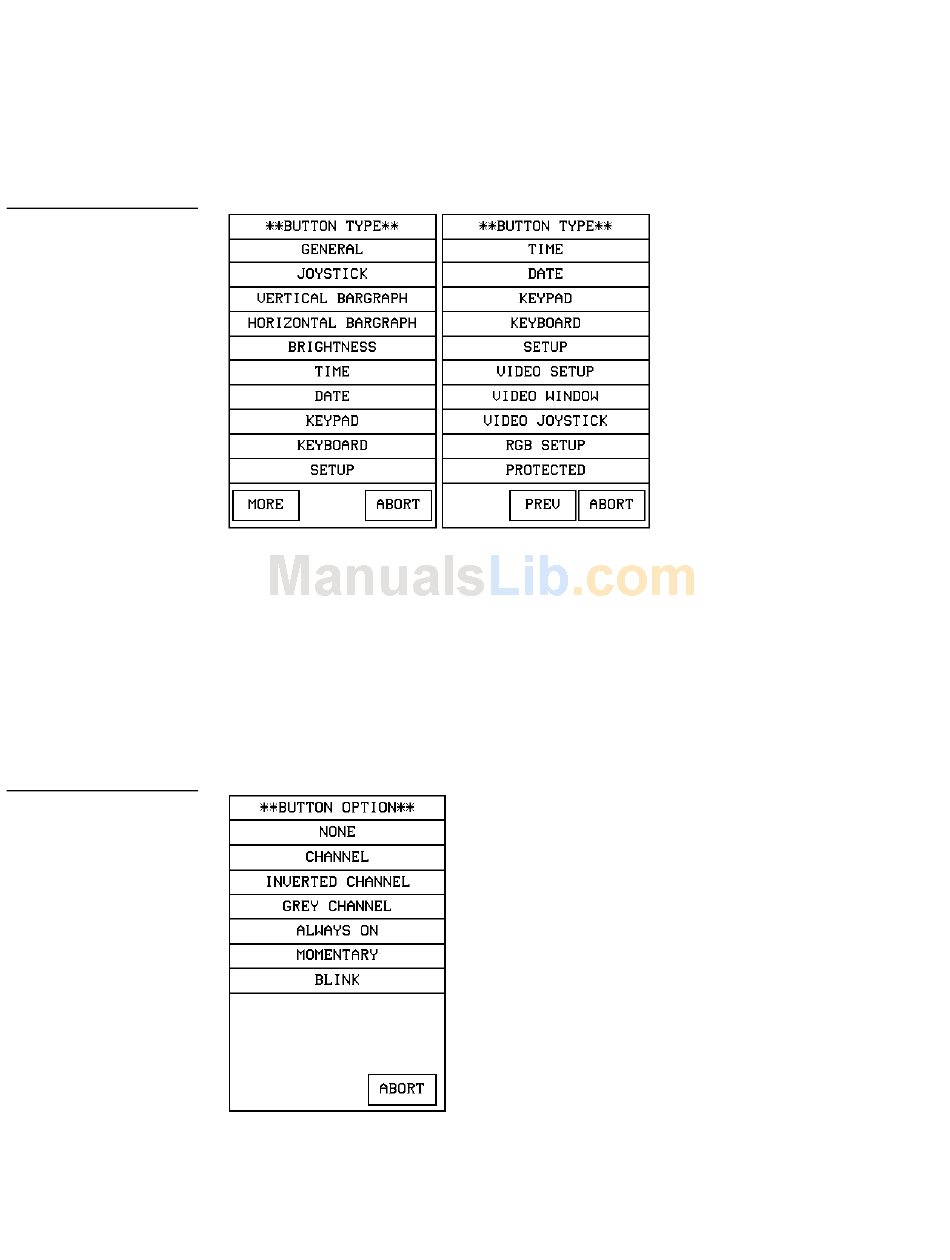

Figure 145
BUTTON TYPE menus
Figure 146
BUTTON OPTION - General
menu
94
Touch Panel Program Reference
select the button type GENERAL, the BUTTON OPTIONS, FLIP, and
STRING operation bars appear in the Properties page.
For a description of each button type, refer to the Properties Page-Button Types
subsection.
•
BUTTON OPTIONS
set the button feedback. The contents of the BUTTON OPTION menu will
change depending on the type of button selected. For example, the options
for a joystick button include parameters that are associated specifically with
using a joystick button. Figure 146 shows the BUTTON OPTION menu for a
General button.
Opens the BUTTON OPTION menu, in which you
ViewPoint Wireless Touch Panels
