Note
When inserting or removing a
battery, insert or remove the
battery slowly to avoid false
indications on the LEDs.

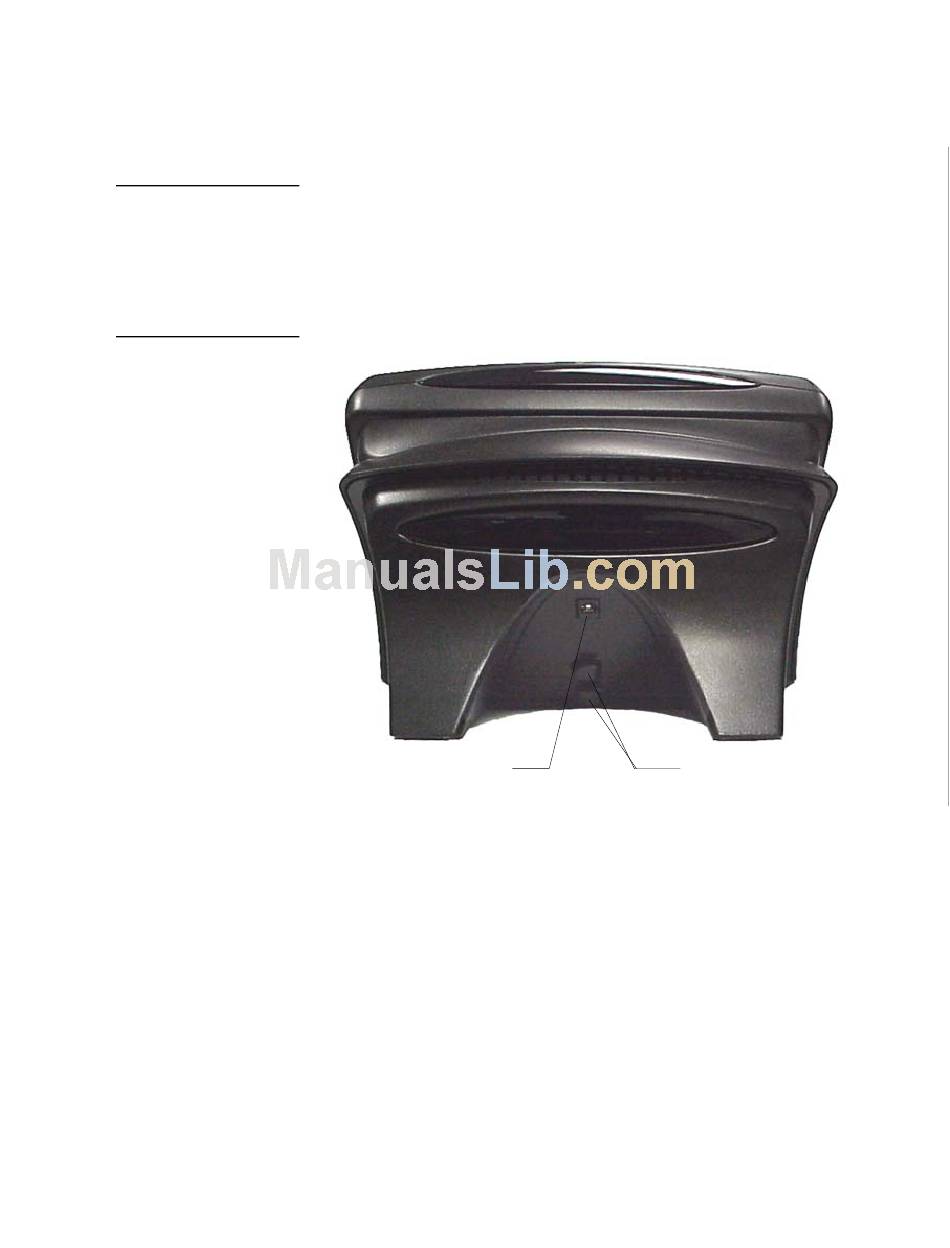

Figure 7
Rear view
ViewPoint Wireless Touch Panels

Battery Charging

When a ViewPoint touch panel is not cradled on the docking station, an optional
extra battery can be placed in the charging compartment. The optional battery is fully
charged in four hours when the optional power supply is plugged-in to the rear of
the docking station (Figure 7). The ViewPort Docking Station provides trickle-
charging of the battery inside the ViewPoint when the ViewPoint is cradled in the
ViewPort.
Power supply
connector
Status LEDs (Figure 6) are located on the bottom front of the docking station. There
are three LEDs; yellow indicates a ViewPoint connection to the docking station; red
shows a battery being charged in the charging compartment; green indicates that the
battery in the charging compartment is fully charged.
Retaining ears
Rear view
(tabs)
Installation 11
