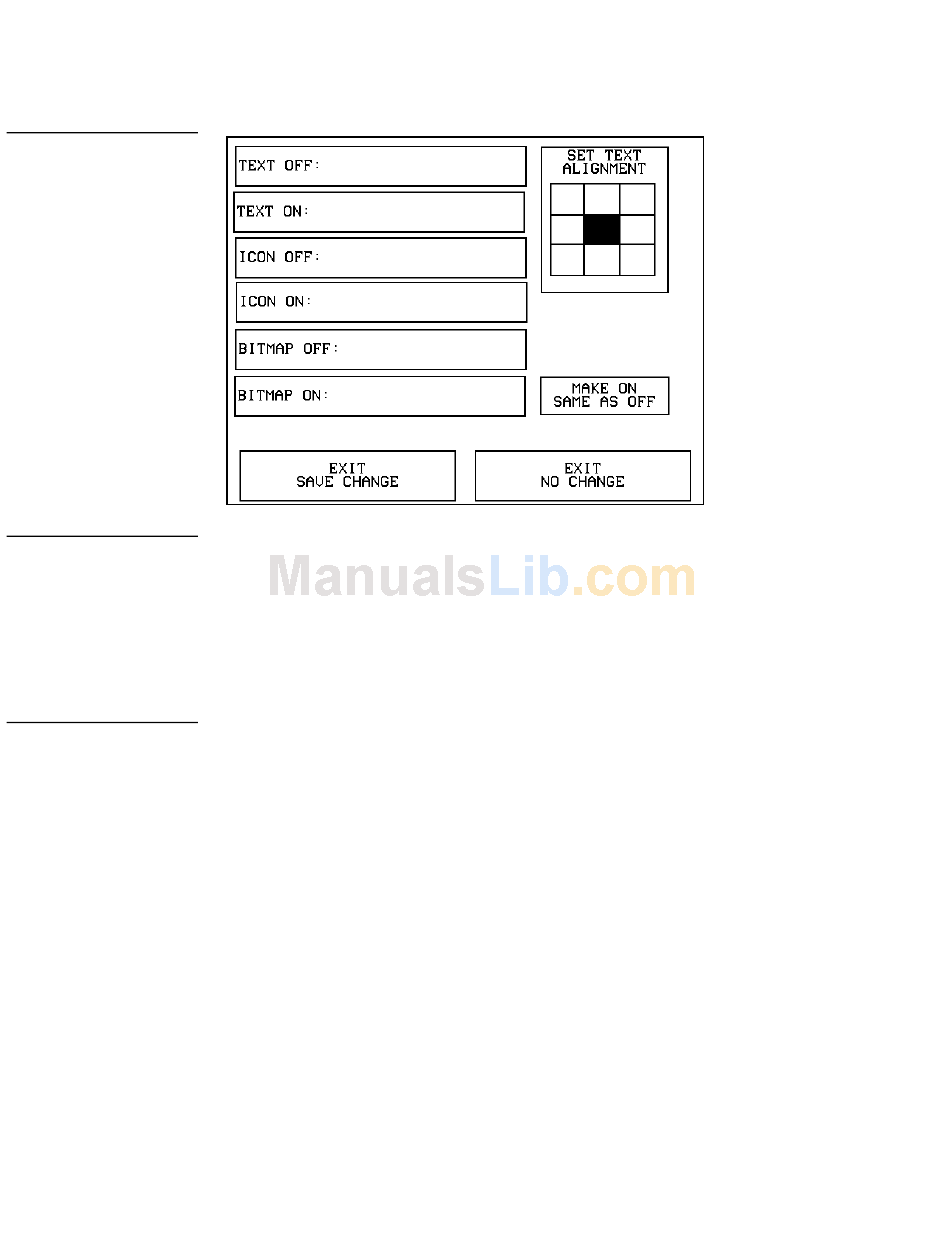

Figure 44
Text/Image page
Note
The CHANGE FONT button
only appears when changing
the font of a function button
and does not apply to popup
pages.
Note
You can't create or edit but-
tons with Unicode fonts within
the on-board editor. Any use
of the TEXT/IMAGE button to
alter or create Unicode font
supported buttons must be
done in TPDesign3 Touch
Panel Design Program.
34 Designing Touch Panel Pages
5. Press TEXT OFF to open the keyboard.
6. Enter MAIN PAGE in the keyboard. The text appears in the message box at the
top of the keyboard. If you exceed the space in the button, the touch panel edits
the message to fit in the space provided. Change the size of the button or reduce
the font size to compensate.
Press EXIT CHANGE to close the keyboard and return to the Text/Image page
7.
Press MAKE ON SAME AS OFF to set the text for both TEXT ON and TEXT OFF
8.
states of the button.
Press EXIT SAVE CHANGE to close the Text/Image page and return to the Main
9.
page.
Press EXIT in the Edit bar to exit Edit TEXT/IMAGE mode.
10.

Adding an icon to a button

Use the BUTTON option in the Edit bar to add icons to buttons, joysticks, bargraphs,
and video windows. Refer to
ViewPoint Wireless Touch Panels
