Using the ProCurve Web Browser Interface

Status Reporting Features

Status Bar
(page 5-22)
Tab Bar
Button Bar
Port Utiliza­
tion Graphs
(page 5-17)
Port Status
Indicators
(page 5-19)
Alert Log
Control Bar
Alert Log
(page 5-20)

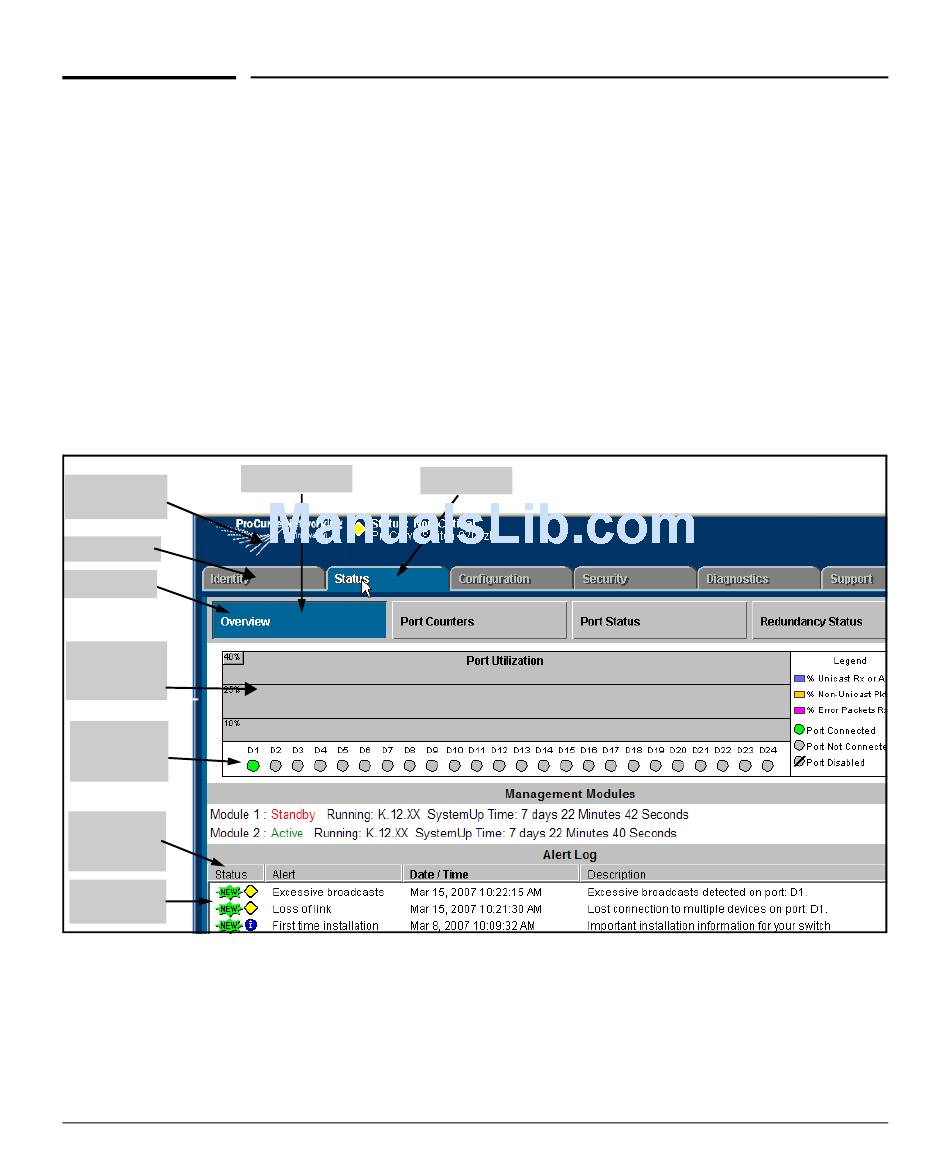

Figure 5-8. The Status Overview Window
5-16
Status Reporting Features
Browser elements covered in this section include:
The Overview window (below)
■
■ Port utilization and status (page 5-17)
■ The Alert log (page 5-20)
The Status bar (page 5-22)
■

The Overview Window

The Overview Window is the home screen for any entry into the web browser
interface.The following figure identifies the various parts of the screen.
Active Button
Active Tab
