Figure 4-8 Scsi Connector On The Back Of The Indigo Chassis - Silicon Graphics IRIS Indigo Owner's Manual

Follow the steps below to connect the device to your IRIS Indigo workstation.
1. Power down your system.
Choose "System Shutdown" from the System menu in the Toolchest.
Turn off your system.
2. Locate the SCSI connector on the back of the Indigo chassis, as shown in Figure 4-8.
3. Remove the terminator from the workstation or from the last external device
attached to your workstation.
If you are attaching the device to the workstation, remove the terminator from
the SCSI connector on the Indigo chassis by squeezing the clips on both sides of
the terminator and pulling it off, as shown in Figure 4-8.
Save the terminator. You must reattach it to the system if you remove and do
not replace the external device.
If you are daisy-chaining a device to another device, remove the terminator
from the connector on the device by squeezing the clips on both sides of the
terminator and pulling it off.
O
SCSI
Connector

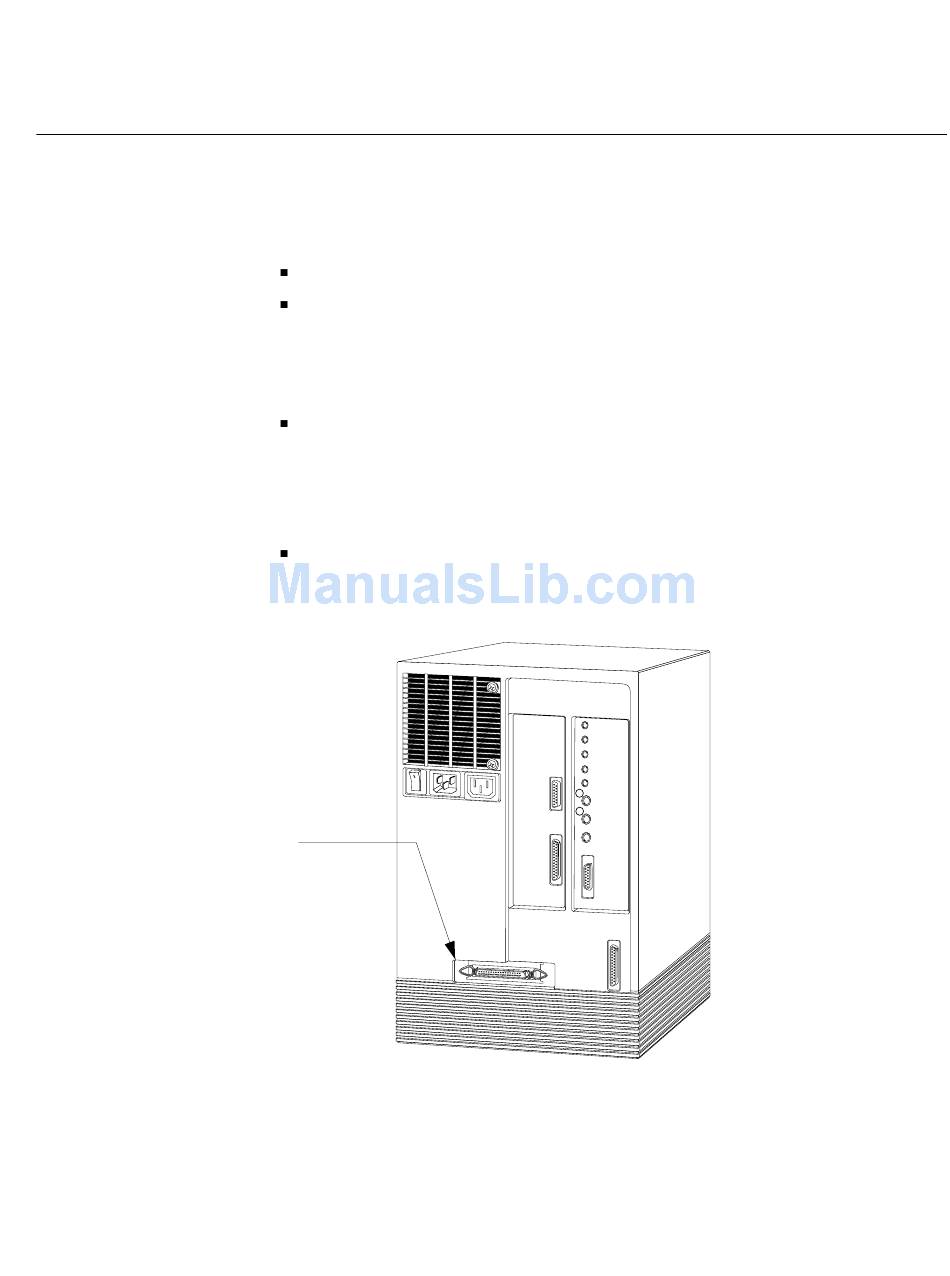

Figure 4-8 SCSI Connector on the Back of the Indigo Chassis
Installing External Devices
1
2
77
