Chapter 2: Getting Started
22
7. Connect the mouse to the keyboard.
Connect the mouse cable to the connector on either side of the keyboard, as
shown in Figure 2-11.
8. Connect the keyboard to the IRIS Indigo chassis.
Pick up the keyboard cable.
Connect one end of the keyboard cable to the remaining connector on the
keyboard, as shown in Figure 2-11.
Connect the other end of the cable to the connector designated by the keyboard
icon on the back of the workstation, as shown in Figure 2-11.

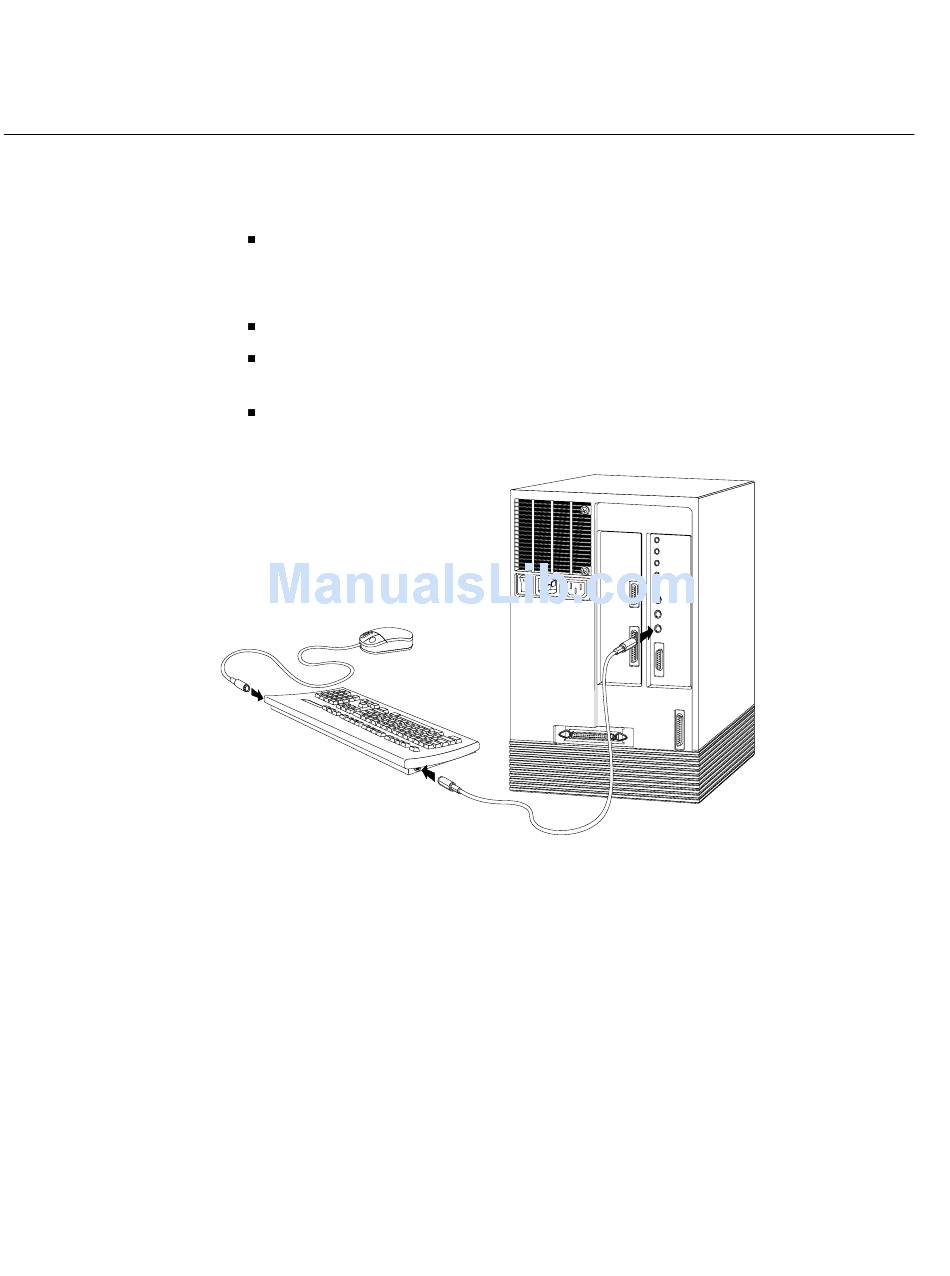

Figure 2-11 Connecting the Keyboard to the IRIS Indigo Chassis
