Chapter 4: Installing Peripherals
78
4. Attach the appropriate cable. Silicon Graphics SCSI devices come with two cables;
one with identical connectors at each end, and one with different connectors at each
end.
If you are attaching the device to the workstation, use the cable that has a different
connector on each end.
Attach the flat, smaller end of the cable to the SCSI connector on the
workstation, as shown in Figure 4-8.
Connect the other end of the SCSI cable to one of the SCSI connectors on the
back of the device and secure the clips on each side of the connector, as shown
in Figure 4-9.

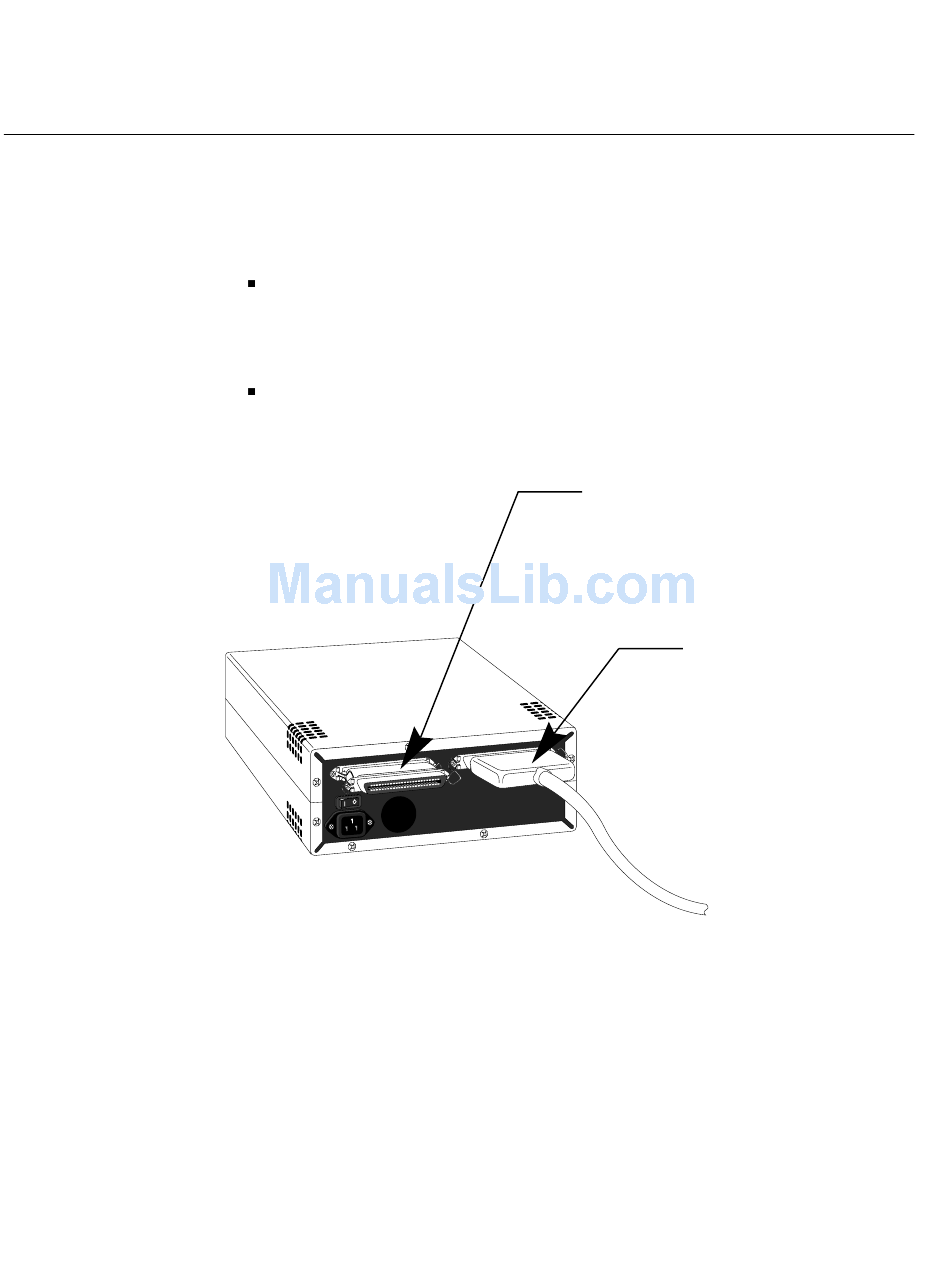

Figure 4-9 SCSI Cable and Terminator on the Back of the SCSI Drive
Terminator
SCSI
cable
