Figure 6-23 Removing The Cpu Board From The Indigo Chassis - Silicon Graphics IRIS Indigo Owner's Manual

Chapter 6: Troubleshooting
144
4. Remove the CPU board.
You see two boards inside the Indigo chassis; the left board is the CPU board and is
labelled CPU.
Two levers hold the board in place.

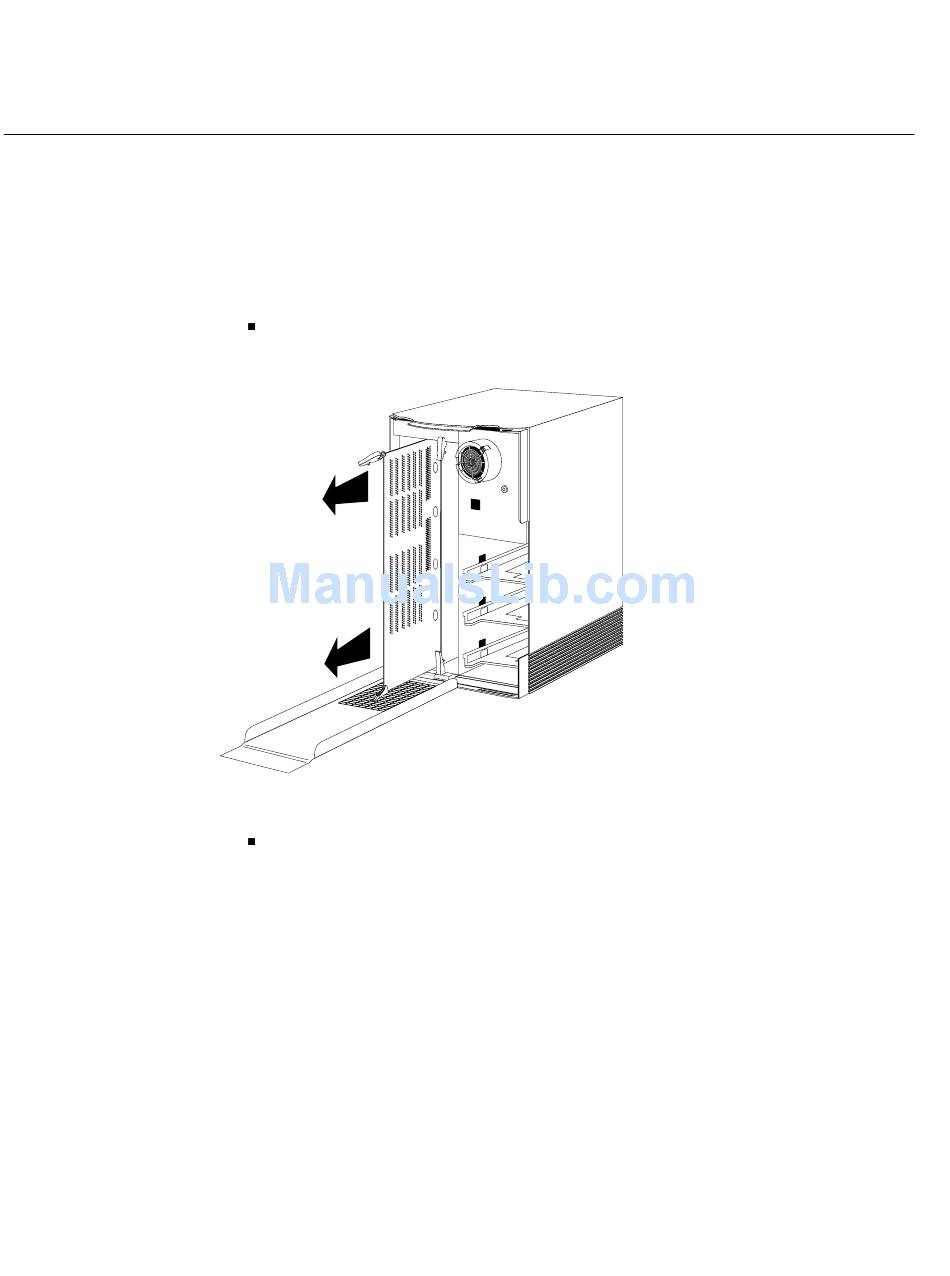

Pull the levers toward you to release the board. The board slides out of the
chassis as you pull the levers, as shown in Figure 6-23.
Removing the CPU Board From the Indigo Chassis
Figure 6-23
Slide the board out of the slot and set it down on a flat, anti-static surface, so
that the side with the large chips faces up.
If you are replacing the CPU module, turn to "Replacing the CPU Module" on page 145.
If you are replacing only the CPU board, turn to "Replacing the CPU Board and Covers"
on page 148.
