Chapter 6: Troubleshooting
148

Replacing the CPU Board and Covers

To replace the CPU board and all the covers, follow these steps:
1. Position the board for installation.
Face the front of the Indigo chassis.
Make sure the alligator clip of your wrist strap is attached to a metal part of the
Indigo chassis.
Place the board in the chassis so the lever labelled
Indigo chassis. The SIMMs should be facing left, as shown in Figure 6-26.
The card guides hold the board in the top and bottom of the chassis.
Tip:

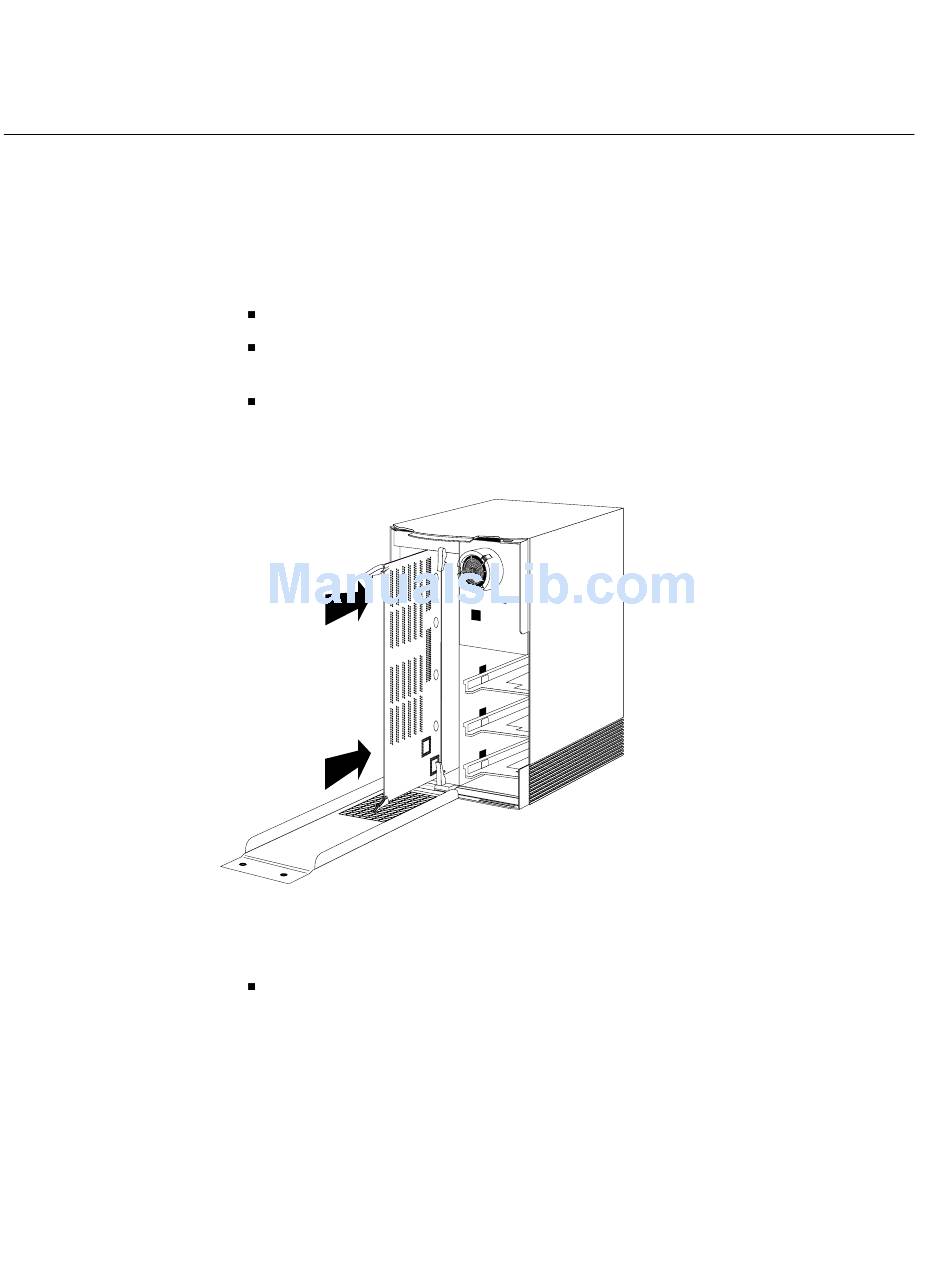

Figure 6-26 Installing the CPU Board
2. Slide the board into the Indigo chassis.
Slide the board in almost all the way.
Make sure the notch in the top lever goes under the top edge of the chassis.
3. Return the levers to their original positions.
lines up with
CPU CPU
on the
