Chapter 4: Installing Peripherals
84
3. Plug in the serial cable.
If you are attaching a console terminal, attach it to serial connector
attaching any other device, you can attach it to either connector.
Plug one end of the serial cable into the connector on the back of the serial
device.
See the instructions that came with the serial device for detailed instructions on
how to connect the cable to the device.
Plug the other end of the cable to the serial connector on the back of the Indigo
chassis, as shown in Figure 4-13.
O

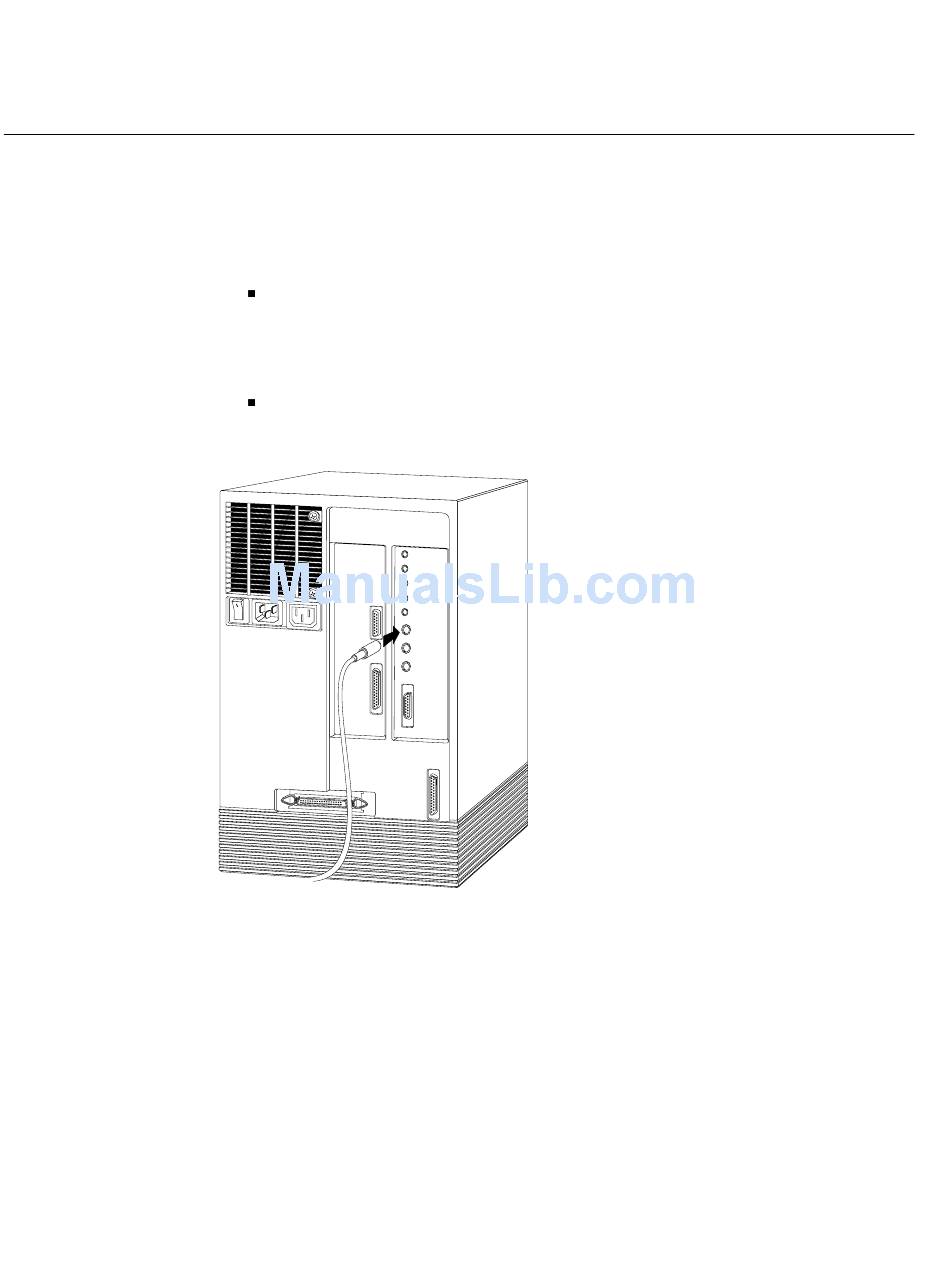

Figure 4-13 Connecting the Serial Cable to the Serial Port on the Indigo Chassis
If you are installing a dial and button box, a small serial adapter cable came with
Note:
the box. First connect the serial adapter cable to the serial cable. Then connect the other
end of the serial adapter cable to the Indigo chassis.
only. If you are
