Replacing the Graphics Board and Covers

To replace the graphics board and all the covers, follow these steps:
1. Position the board for installation.
Face the front of the Indigo chassis.
Make sure the alligator clip of your wrist strap is still attached to a metal part of
the chassis.
Place the board in the Indigo chassis so it lines up with the card guides, and the
lever labelled
Graphics
The card guides hold the board in the top and bottom of the chassis.
2. Slide the board into the Indigo chassis.
Slide the board in almost all the way, as shown in Figure 6-17.
Make sure the notch in the top lever goes under the top edge of the chassis.

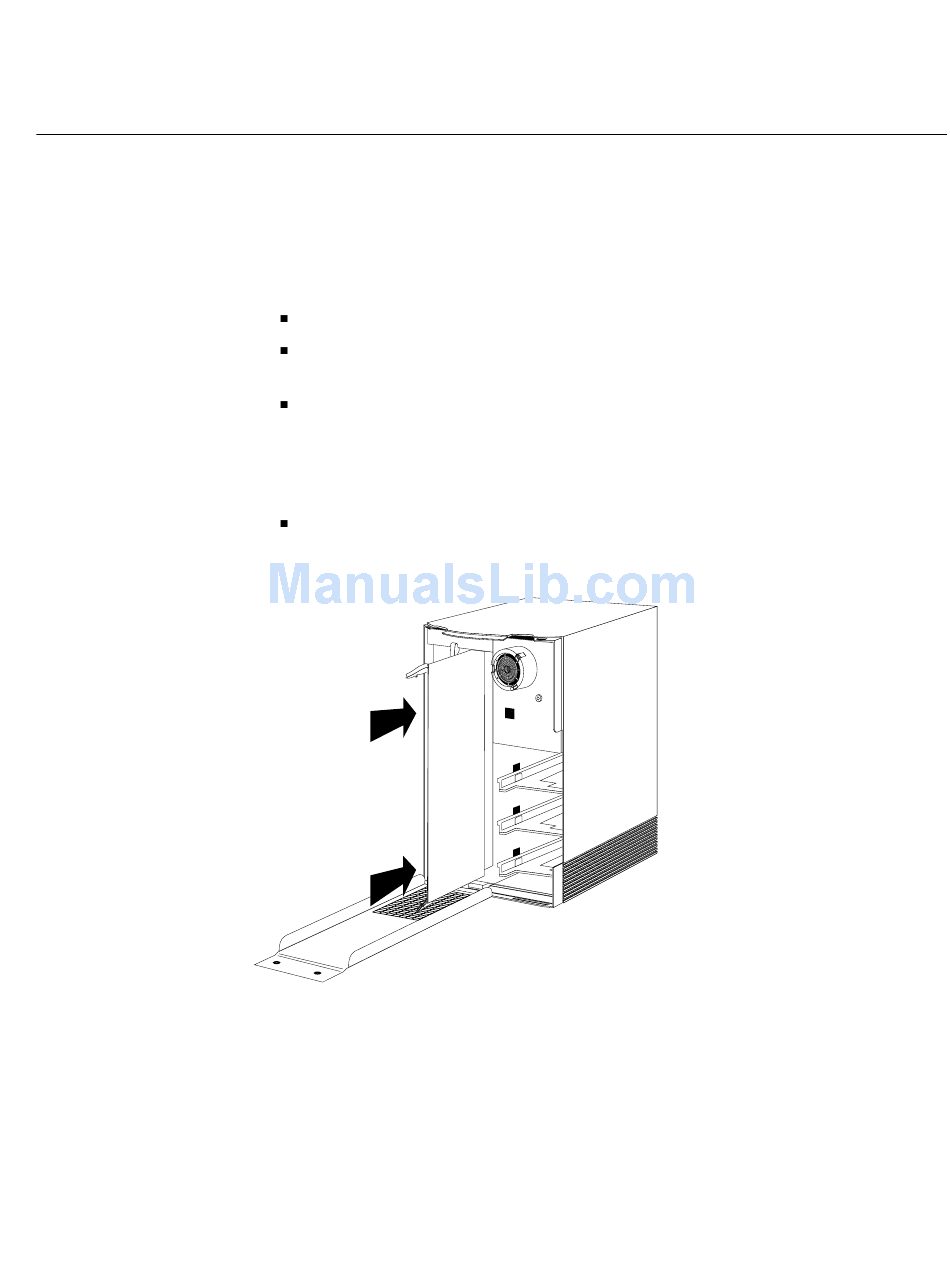

Figure 6-17 Installing the Graphics Board
Ordering, Removing and Installing Parts
lines up with
Graphics
above the card guides.
139
