Gently put the terminator on SCSI connector on the back of the Indigo chassis,
as shown in Figure 6-34, and secure the clips on each side of the terminator.
The SCSI connector is designed so you can put the terminator on only one way,
if you do not force it.
O
SCSI
Connector

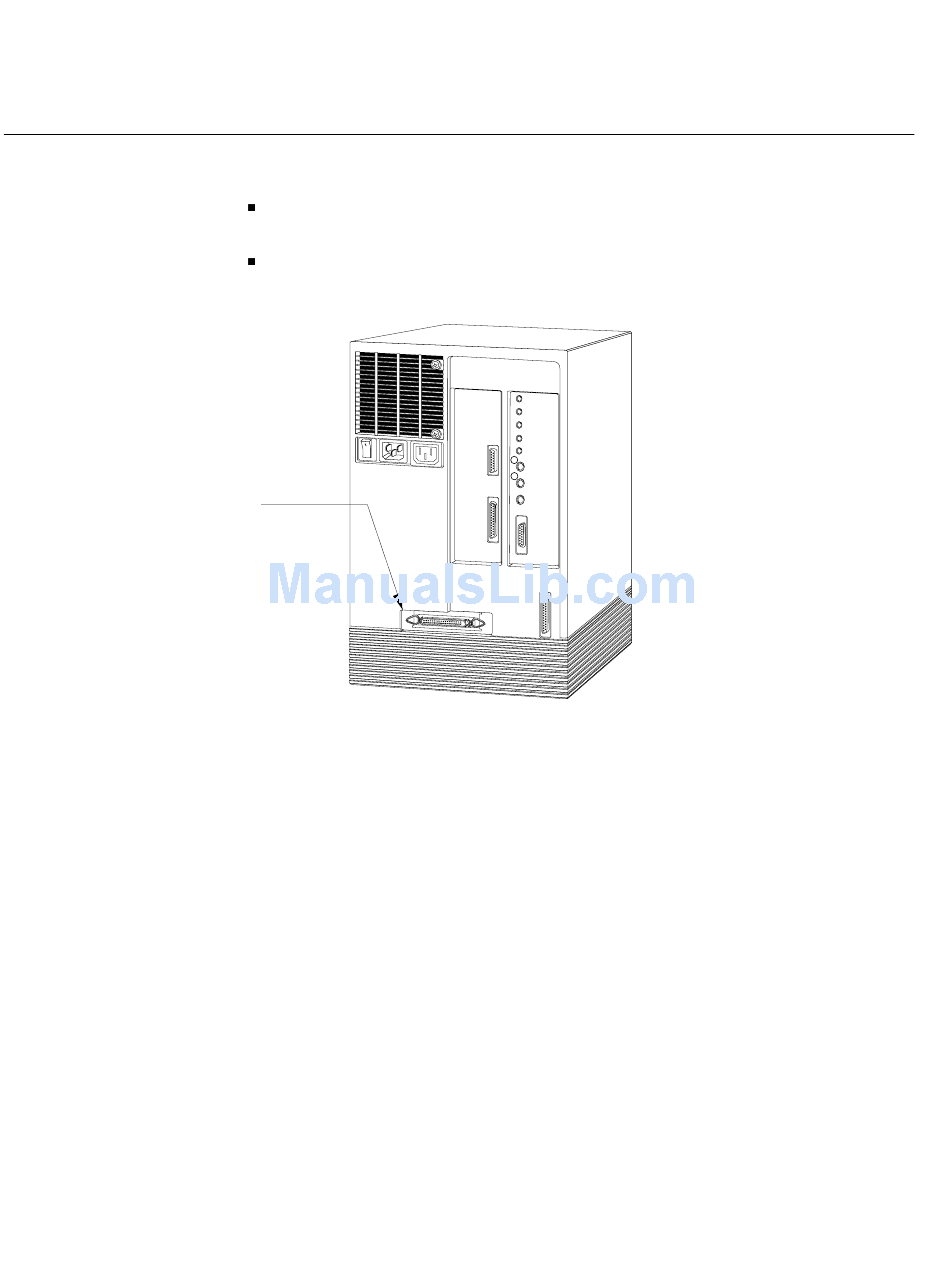

Figure 6-34 SCSI Connector on the Back of the Chassis

Installing the New Device

To install the replacement external SCSI device, follow the instructions in "Installing
External Devices" in Chapter 4.
