Chapter 4: Installing Peripherals
70
3. Choose a slot to install the drive in.
Caution: Install only the system disk in the bottom slot.
Install a second hard disk, floppy disk drive, or a DAT drive into either the top or
the middle slot, as shown in Figure 4-3.

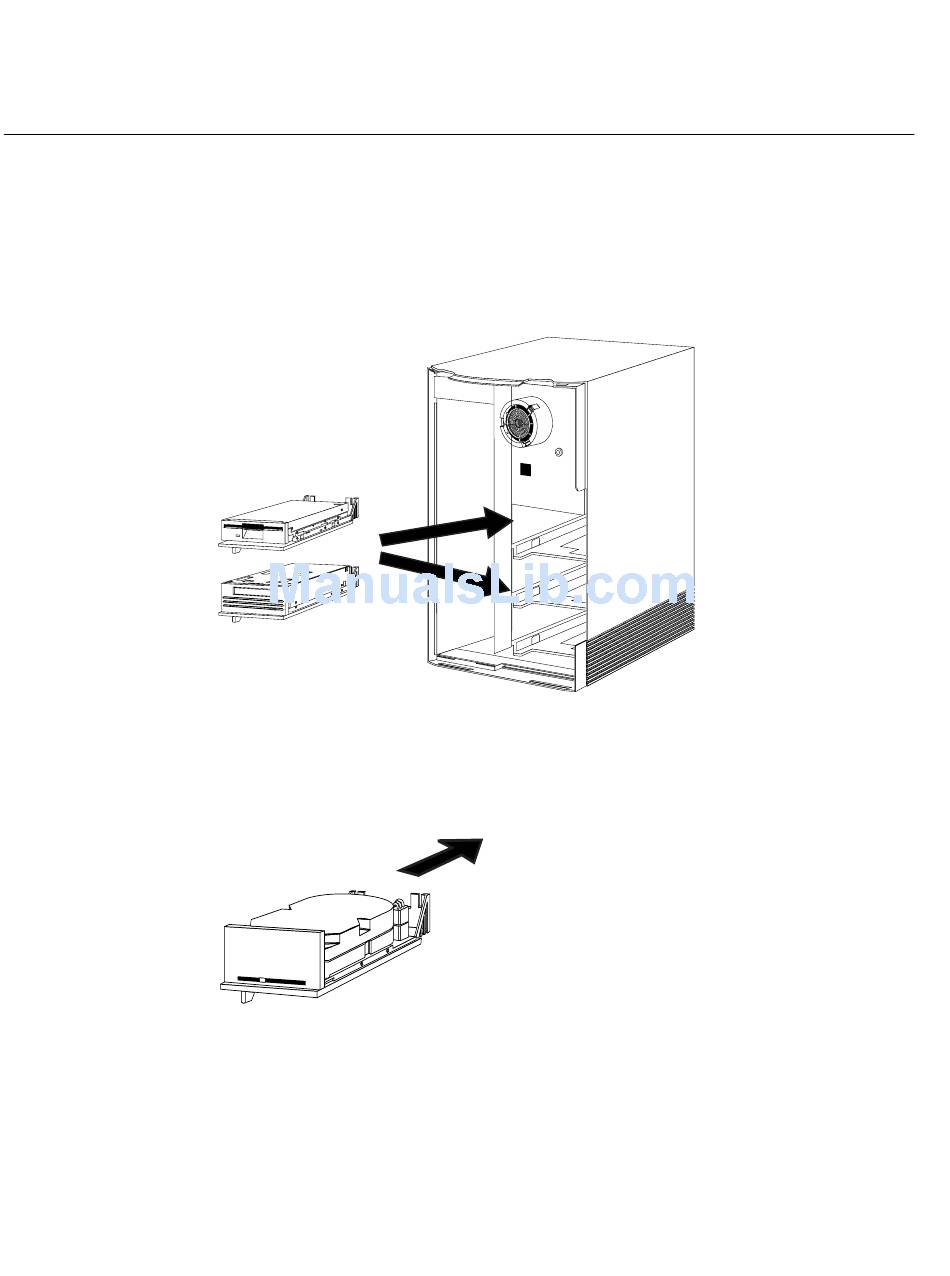

Figure 4-3 Drive Slots in the Front of the Chassis
4. Pick up the drive so the two plastic guide pins on the back are on the top half of the
drive and facing away from you, as shown in Figure 4-4.
Figure 4-4 Holding Drive to Install in a Front Slot
