2. Install the other SIMMs.
3. Visually check the tops of the SIMMs to make sure they are installed all the way. If a
SIMM is not sitting vertically, push it farther upward.

Replacing the CPU Board and Covers

To replace the CPU board and all the covers, follow these steps:
1. Position the board for installation.
Face the front of the Indigo chassis.
Move the alligator clip of your wrist strap back to a metal part of the chassis.
Place the board in the Indigo chassis so the lever labelled
on the Indigo chassis. The SIMMs should be facing left, as shown in
CPU
Figure 3-11.
The card guides hold the board in the top and bottom of the chassis.

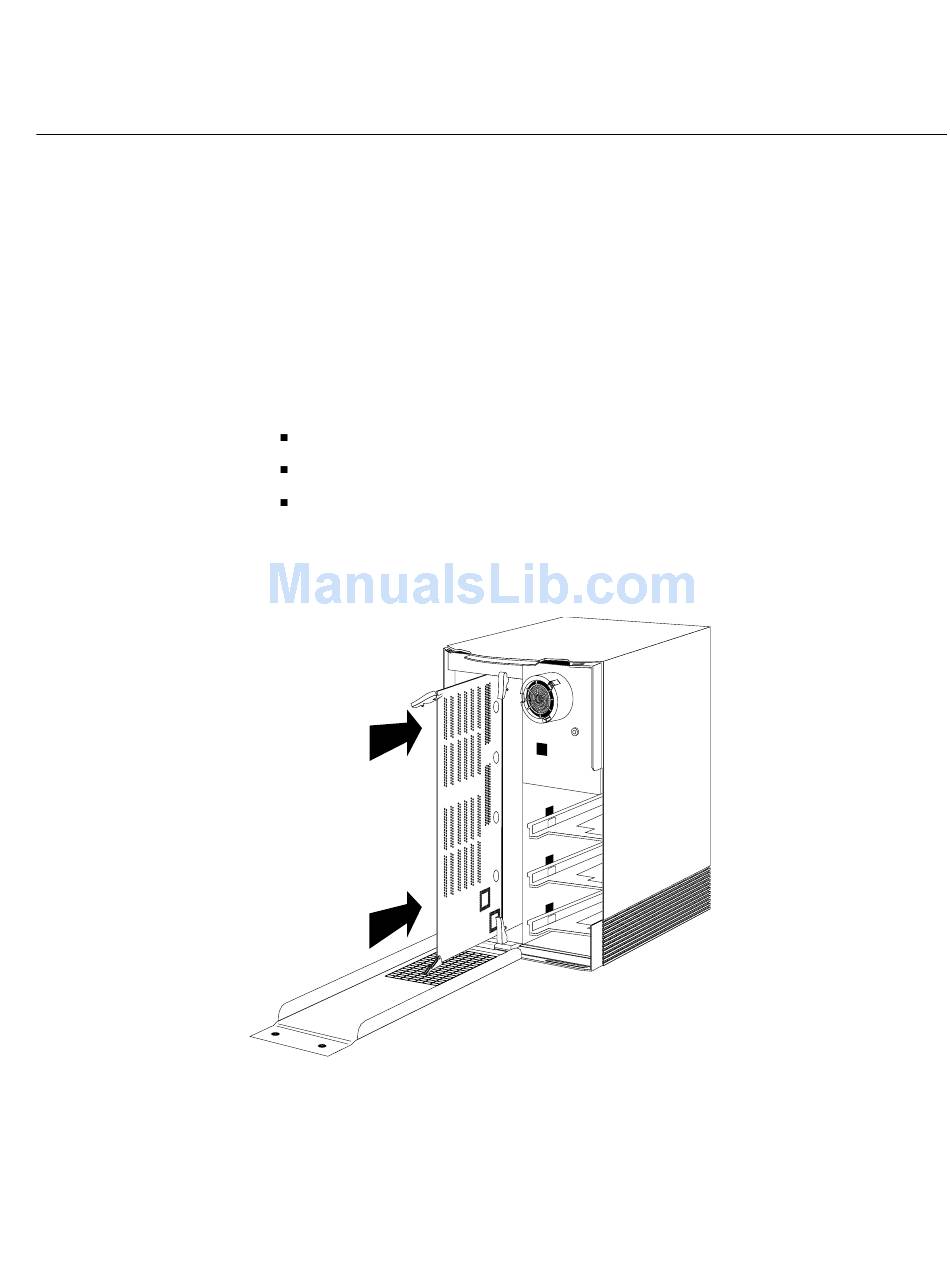

Figure 3-11 Installing the CPU Board
Adding SIMMs to the IRIS Indigo Workstation
CPU
lines up with
