Figure 2-7 Installing The Option Drives In The Top Or Middle Slot - Silicon Graphics IRIS Indigo Owner's Manual

Chapter 2: Getting Started
18
If the green lever does not slide to the right as you push in the drive, the drive may
not be lined up with the guides in the chassis. Take the drive out and reinstall it,
making sure the guides on the bottom of the drive line up with the guides in the
chassis. Try pulling on the drive. The drive should not come out when you pull it.
3. Install any option drives you received.
An option drive is any drive other than the system disk. Option drives include
floppy disk drives, secondary hard disk drives, or DAT drives.
Install option drives the same way you installed the system disk, but install
them in the top or middle slot, as shown in Figure 2-7.

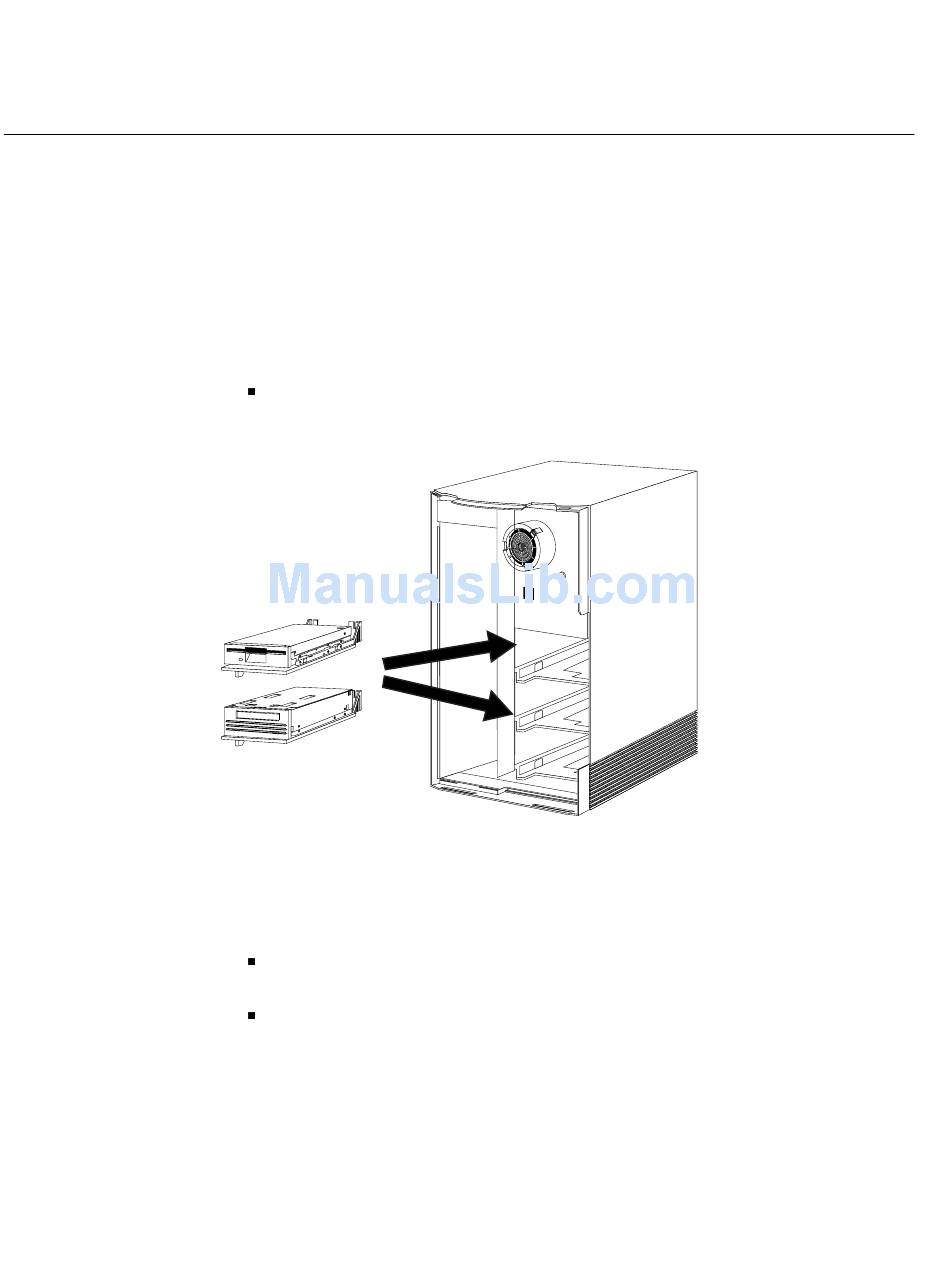

Installing the Option Drives in the Top or Middle Slot
Figure 2-7
If you installed a drive in the top drive slot, you need to remove the top plastic
blanking panel. If you installed a drive in the middle slot, remove the bottom black
blanking panel.
Pick up the plastic front cover of IRIS Indigo and open the door on the front of
the cover.
Push the black blanking panel out from the back of the cover. The panel falls
out. Save the panel in case you ever remove and do not replace the drive.
