Removing the Memory SIMMs from an IRIS Indigo R3000 Workstation
To remove memory SIMMs from IRIS Indigo R3000, follow these steps:
1. Orient the CPU board so the memory sockets are closest to you, as shown in
Figure 3-21.
Ground yourself by removing the alligator clip from the Indigo chassis and
attaching the clip to the CPU board. Attach the clip to the metal part with the
connectors. Make sure the wrist strap is tight around your arm.

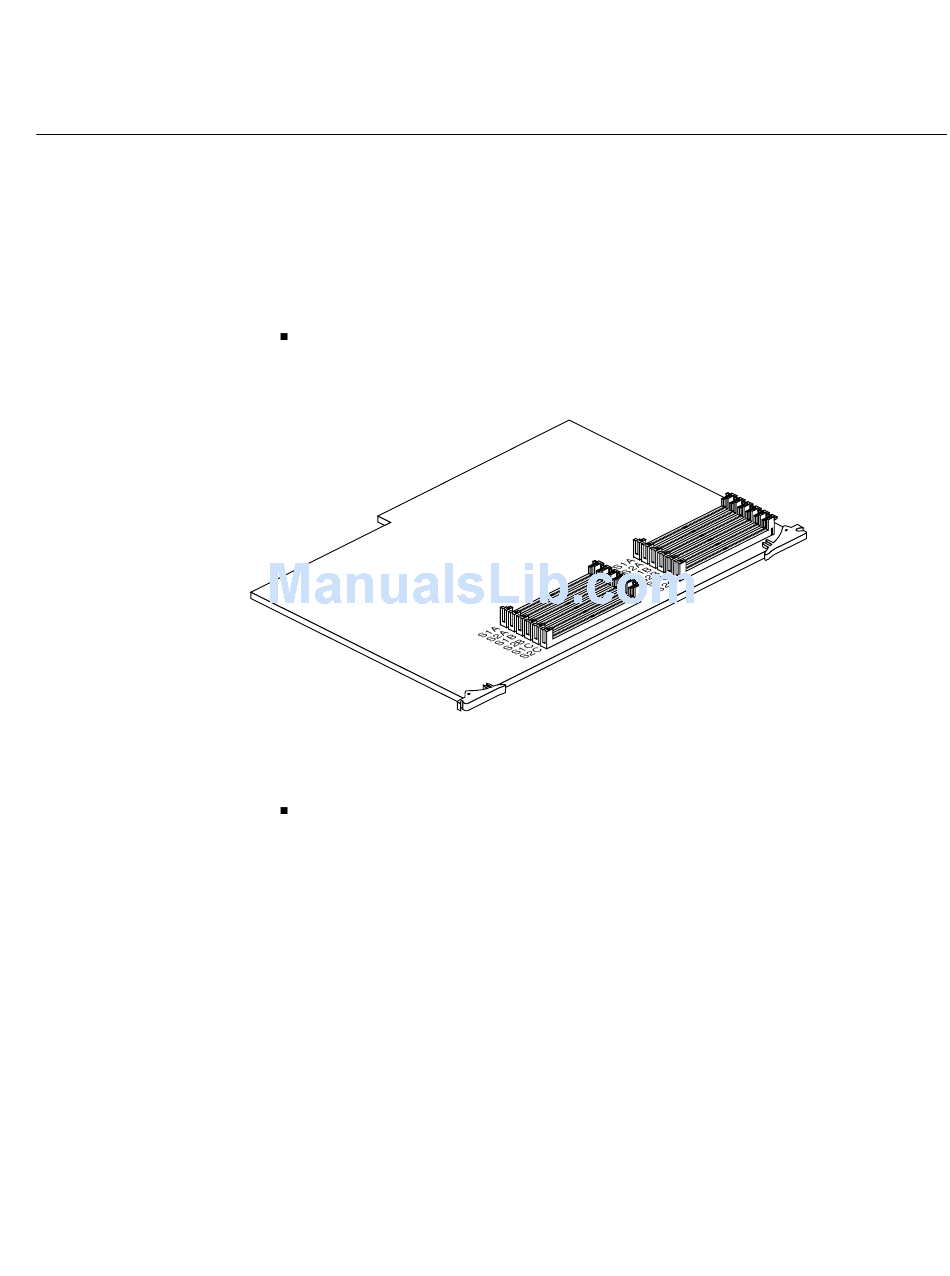

Figure 3-21
Orienting Yourself to the CPU Board
2. Locate the SIMM sockets.
Look for the SIMM sockets in the lower right corner of the board.
Removing Memory
