Appendix A: Cable Pinout Assignments

SCSI Port

186
25 23 21 19 17 15 13 11 9 7 5
24 22 20 18 16 14 12 10 8 6
50 48 46 44 42 40 38 36 34 32 30 28 26
49 47 45 43 41 39 37 35 33 31 29 27

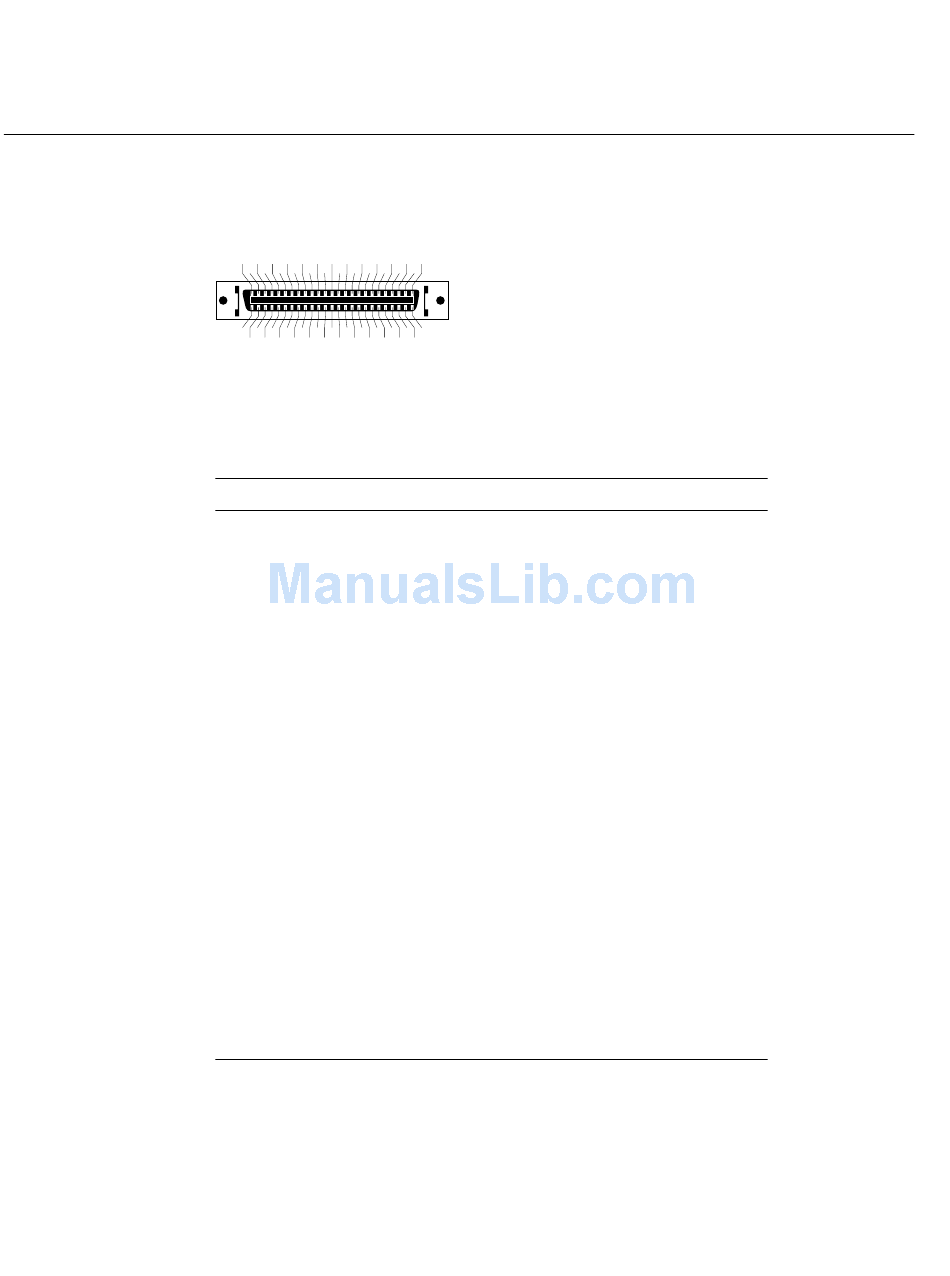

Figure A-6 SCSI Port Pinout Assignments
Table A-6 shows the cable pinout assignments for the SCSI port.
Table A-6 SCSI Port
Pin Assignment
1 GROUND
2 GROUND
3 GROUND
4 GROUND
5 GROUND
6 GROUND
7 GROUND
8 GROUND
9 GROUND
10 GROUND
11 GROUND
12 Reserved
13 Open
14 Reserved
15 GROUND
16 GROUND
3 1
4 2
