Figure 4-5 Sliding
the Drive Into the Slot
5. Slide the drive into the slot.
Place the drive into the slot and push firmly. The green lever underneath the
drive moves to the right.
Once the drive is all the way in, push the green lever underneath the drive all
the way to the right, as shown in Figure 4-5.
You should hear a click when the drive locks into place.
Try pulling gently on the drive. The drive should not come out when you pull
it.
If you installed a drive in the top drive slot, you need to remove the top black plastic
blanking panel. If you installed a drive in the middle slot, remove the bottom black
blanking panel.
Pick up the plastic front cover of the Indigo and open the door on the front of
the cover.
Push the black blanking panel out from the back of the cover. The panel falls
out. You may want to save the panel in case you ever remove your drive.
6. Replace the front cover of the chassis.
Place the bottom of the front cover in the guides on the bottom of the Indigo
chassis.
Tilt the cover up to the chassis, as shown in Figure 4-6. The cover snaps in place.

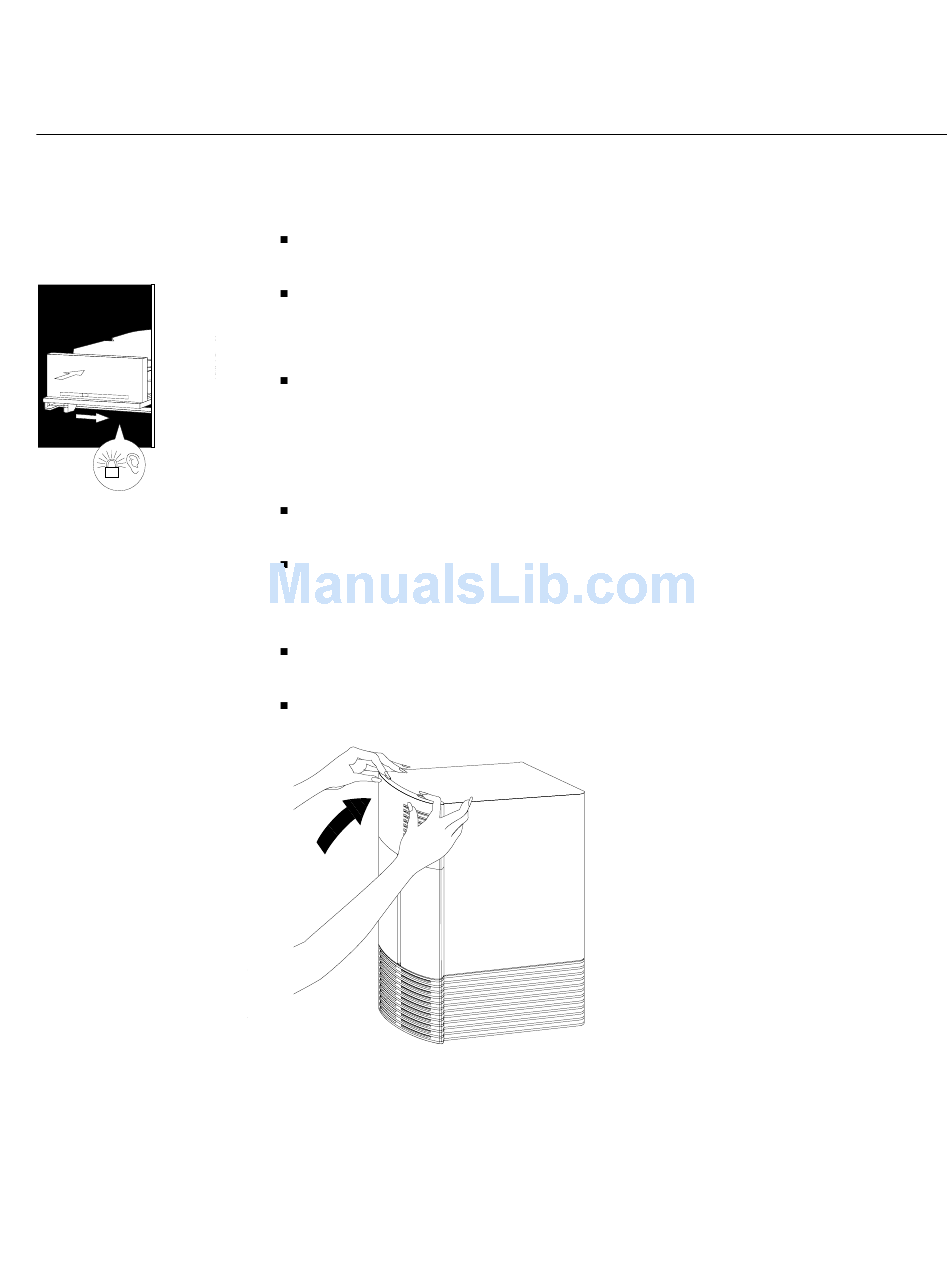

Figure 4-6 Replacing the Front Cover of the IRIS Indigo Workstation
