5. Replace the front plastic cover.
Place the bottom of the front cover in the guides on the bottom of the Indigo
chassis.

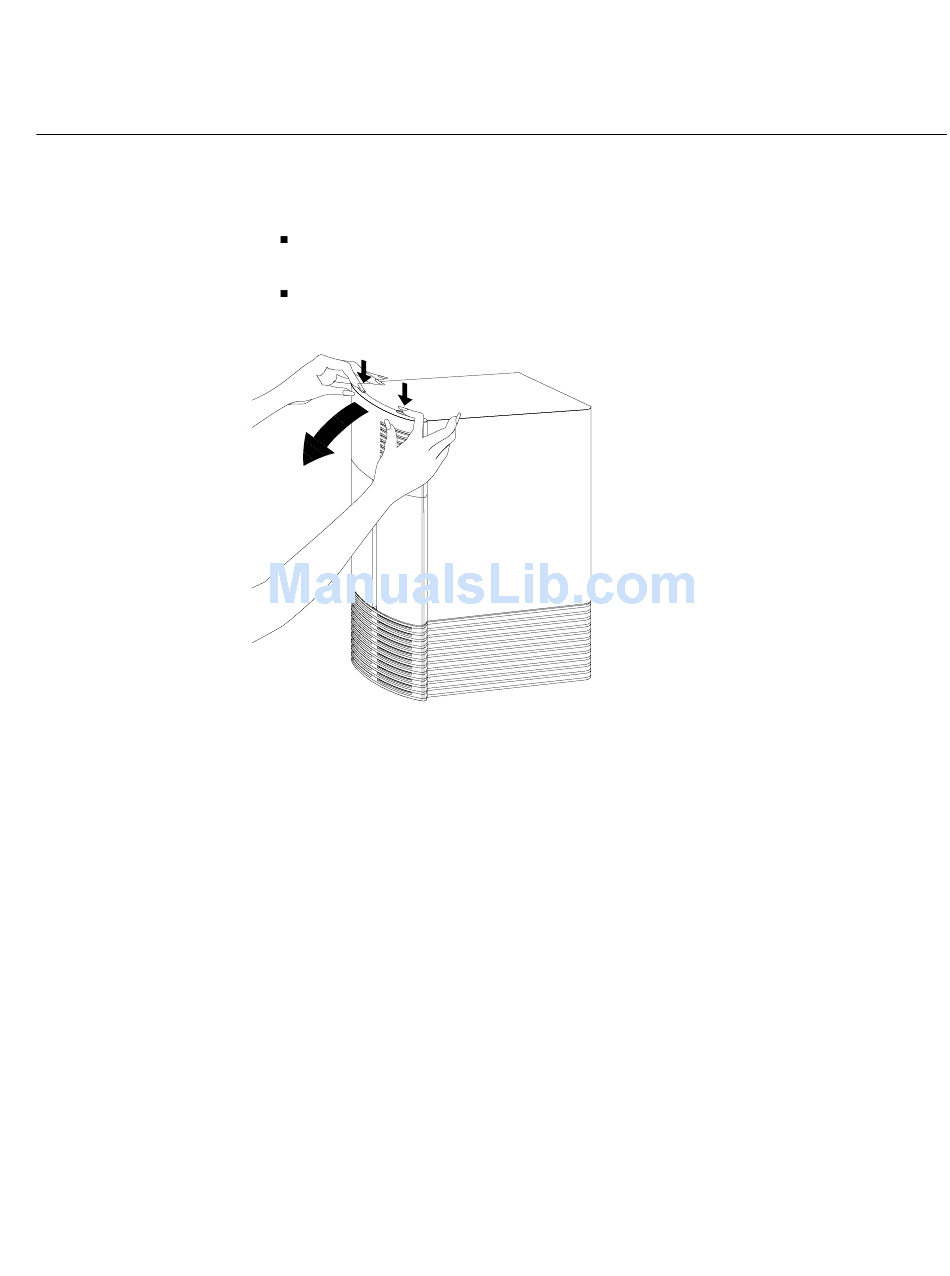

Tilt the panel up to the chassis, as shown in Figure 6-19. The cover snaps in
place.
Replacing the Front Plastic Cover
Figure 6-19
6. Reconnect the cables to the connectors on the back of the system.
You are finished installing the graphics board and ready to start up the system.

Replacing the CPU Board or CPU Module

If you have an IRIS Indigo R3000 workstation, replace the CPU board. If you have an IRIS
Indigo R4000 family workstation, replace only the CPU module on the board.
To replace the CPU board, shut down the system, remove the covers and CPU board,
install the new board, and replace the covers. If you are replacing the CPU module, you
must remove it from the CPU board, and install the new module.
Ordering, Removing and Installing Parts
141
