LabMaster 10 Zi Oscilloscopes

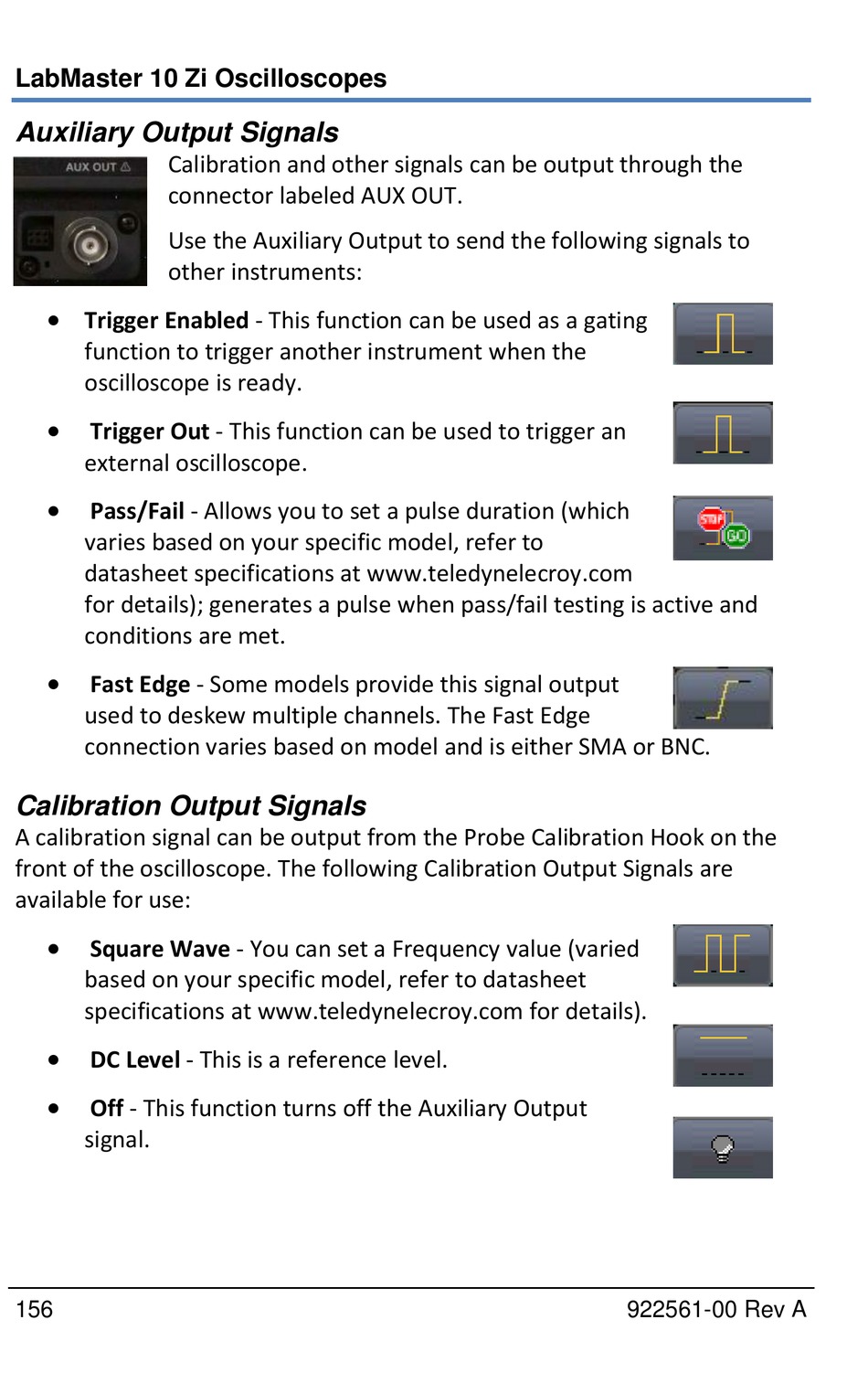

Auxiliary Output Signals

Calibration and other signals can be output through the
connector labeled AUX OUT.
Use the Auxiliary Output to send the following signals to
other instruments:

Trigger Enabled - This function can be used as a gating
function to trigger another instrument when the
oscilloscope is ready.

Trigger Out - This function can be used to trigger an
external oscilloscope.

Pass/Fail - Allows you to set a pulse duration (which
varies based on your specific model, refer to
datasheet specifications at www.teledynelecroy.com
for details); generates a pulse when pass/fail testing is active and
conditions are met.

Fast Edge - Some models provide this signal output
used to deskew multiple channels. The Fast Edge
connection varies based on model and is either SMA or BNC.
Calibration Output Signals
A calibration signal can be output from the Probe Calibration Hook on the
front of the oscilloscope. The following Calibration Output Signals are
available for use:

Square Wave - You can set a Frequency value (varied
based on your specific model, refer to datasheet
specifications at www.teledynelecroy.com for details).

DC Level - This is a reference level.

Off - This function turns off the Auxiliary Output
signal.
156 922561-00 Rev A
