Related Manuals for Teledyne LeCroy T3DSO2000A Series
Summary of Contents for Teledyne LeCroy T3DSO2000A Series

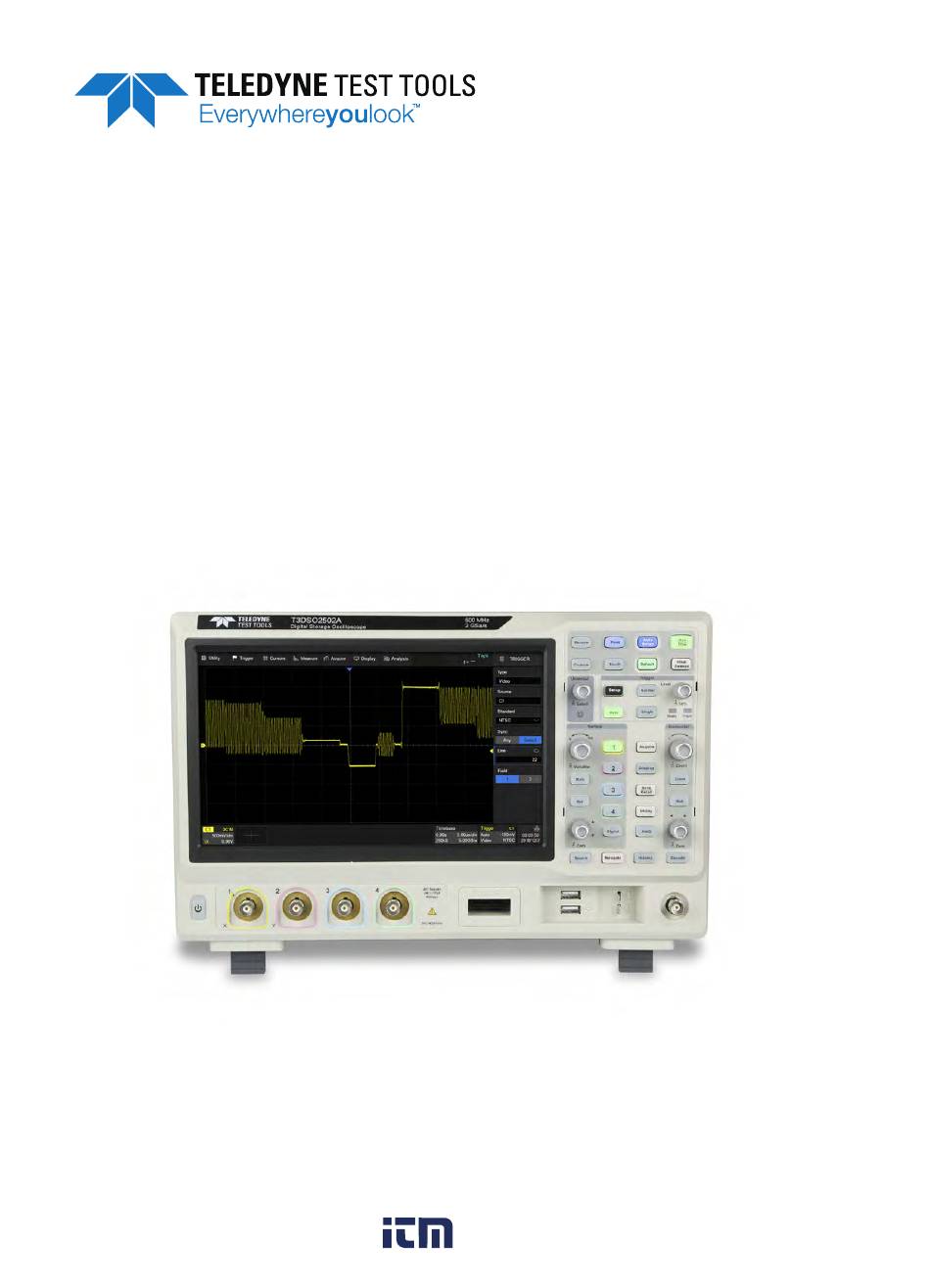

- Page 1 User Manual T3DSO2000A Series Digital Oscilloscope 1.800.561.8187 information@itm.com www. .com...
- Page 2 It is always good practice to save the shipping container and packaging for use when returning the power supply to Teledyne LeCroy for service or calibration.
- Page 3 Before connecting to the instrument, read the manual to understand the input/output ratings. Do not operate with suspected failures. If you suspect that the instrument is damaged, contact the Teledyne LeCroy service department immediately. Do not operate in wet/damp conditions. Do not operate in an explosive atmosphere.
- Page 4 Safety Terms and Symbols The following terms may appear on the instrument: DANGER: Direct injury or hazard may occur. WARNING: Potential injury or hazard may occur. CAUTION: Potential damage to instrument/property may occur . The following symbols may appear on the instrument: CAUTION WARNING Earth...
- Page 5 It is always good practice to save the shipping container and packaging for use when returning the power supply to Teledyne LeCroy for service or calibration.
-
Page 6: Contents
The product is subject to disposal and recycling regulations that vary by country and region. Many countries prohibit the disposal of waste electronic equipment in standard waste recepticles. For more information about proper disposal and recycling of your Teledyne LeCroy product, 1.800.561.8187 information@itm.com www. -
Page 7: Table Of Contents
Contents Contents CONTENTS ....................2 1 INTRODUCTION ..................9 1.1 CALIBRATION ..................9 2 FIRST STEPS ..................... 9 2.1 DELIVERY CHECKLIST ................. 9 2.2 QUALITY ASSURANCE ................. 9 3 DOCUMENT CONVENTIONS ..............10 4 GETTING STARTED ................10 4.1 POWER ON ..................10 5 SHUT DOWN .................. - Page 8 8.9 CHOOSING THE LANGUAGE ............25 9 FRONT PANEL ..................25 9.1 OVERVIEW ..................25 9.2 VERTICAL CONTROL ............... 26 9.3 HORIZONTAL CONTROL ..............26 9.4 TRIGGER CONTROL................27 9.5 RUN/STOP BUTTON ................. 27 9.6 AUTO SETUP BUTTON ..............27 9.7 COMMON FUNCTION ...............
- Page 9 15.5 TRIGGER TYPE ................54 15.5.1 Overview ..................54 15.5.2 Edge Trigger ..................55 15.5.3 Slope Trigger .................. 56 15.5.4 Pulse Trigger .................. 57 15.5.5 Video Trigger .................. 58 15.5.6 Window Trigger................62 15.5.7 Interval Trigger ................63 15.5.8 Dropout Trigger ................64 15.5.9 Runt Trigger..................
- Page 10 16.7 FLEXRAY TRIGGER AND SERIAL DECODE ........90 16.7.1 FlexRay Signal Settings ..............90 16.7.2 FlexRay Trigger ................91 16.7.3 FlexRay Serial Decode ..............91 16.8 CAN FD TRIGGER AND SERIAL DECODE ........93 16.8.1 CAN FD Signal Settings ..............93 16.8.2 CAN FD Trigger ................
- Page 11 19.4 FREQUENCY ANALYSIS ..............125 19.5 FORMULA EDITOR ................ 132 20 REFERENCE ..................133 21 SEARCH .................... 134 22 NAVIGATE ..................137 23 MASK TEST ..................141 23.1 OVERVIEW ..................141 23.2 MASK SETUP ................. 143 23.2.1 Create Mask ................. 143 23.2.2 Mask Editor ..................
- Page 12 29 SAVE/RECALL ..................178 29.1 SAVE TYPE ..................178 29.2 INTERNAL SAVE AND RECALL ............. 179 29.3 EXTERNAL SAVE AND RECALL ............ 180 29.3.1 File manager ................. 181 29.3.2 External Save and Recall Instance ..........182 30 SYSTEM SETTING ................185 30.1 SYSTEM STATUS ................
-
Page 13: Introduction
The oscilloscope has a 3-year warranty (1-year warranty for probes) from the date of shipment, during normal use and operation. Teledyne Test Tools can repair or replace any product that is returned to the authorized service center during the warranty period. -
Page 14: Document Conventions
The use of non-Teledyne Test Tools accessories or supplies. Furthermore, Teledyne Test Tools shall not be obligated to service a product that has been modified. Spare, replacement parts and repairs have a 90-day warranty. The oscilloscope's firmware has been thoroughly tested and is presumed to be functional. -
Page 15: Shut Down
Manual Power on When the "Power on Line” option is disabled, the power button on the front panel is the only control for the power state of the oscilloscope. 5 Shut down Press the power button to turn off the oscilloscope. Or follow the steps below: Utility＞Shutdown Note: The Power button does not disconnect the oscilloscope from the AC power supply. -
Page 16: Probe Compensation
Connect the probe to the oscilloscope and connect the ground terminal to ground before you take any measurements. Note: To avoid electric shock when using the probe, keep fingers behind the guard on the probe body. To avoid electric shock while using the probe, do not touch metallic portions of the probe head while it is connected to a voltage source. -
Page 17: Quick Start
7 Quick Start 7.1 Front Panel Overview A. Touch Screen Display: The display and major functions area. See the "Touch Screen Display" chapter for more details. B. Front Panel: Includes knobs and buttons. See the chapter "Front Panel" for more details. -
Page 18: Rear Panel Overview
7.2 Rear Panel Overview A. Auxiliary Out: Outputs the trigger indicator. When Pass / Fail is enabled, outputs the pass / fail signal. B. Ext Trigger Input C. LAN Port: Connect the port to the network for remote control. D. USB Ports: One USB device to connect with a PC for remote control and one USB host to connect with a USB storage device or USB mouse / keyboard. -
Page 19: Connecting To External Devices/Systems
7.3 Connecting to External Devices/Systems 7.3.1 Power Supply The standard power supply for the instrument is 100~240 V, 50/60 Hz or 100~120 V, 400 Hz. Please use the power cord provided with the instrument to connect it to AC power. 7.3.2 LAN Connect the LAN port to the network with a network cable with RJ45 head for remote control. -
Page 20: Touch Screen Display
8 Touch Screen Display 8.1 Overview The entire T3DSO2000A display is a capacitive touch screen. Use your fingers to touch, drag, pinch, spread, or draw a selection box. Many controls that display information also work as “buttons” to access other functions. If you using any mouse, you can click anywhere –... -
Page 21: Menu Bar
Trigger Level Line (Vertical) and Trigger Delay Indicator (Horizontal) show the trigger position of the waveform. Cursors show where measurement points have been set. Move the cursors to quickly reposition the measurement point. Channel Descriptor boxes include analog channels (C1 - C4), digital channels (D), math (F1 - F2) and reference (Ref). -
Page 22: Grid Area
8.3 Grid Area The grid area displays the waveform traces. Traces can be moved by dragging and re- scaled by pinch and spread. The area is divided into 8 (vertical) * 10 (horizontal) grids. The best display effect can be obtained by adjusting the waveform intensity and graticule. -
Page 23: Channel Descriptor Box
8.4 Channel Descriptor Box A. Channel Index B. Bandwidth Limit indicator C. Coupling and Input Impedance D. Vertical Scale E. Vertical Offset F. Probe Attenuation Factor Bandwidth Limit Indicators: The T3DSO2000A has two available bandwidth limits: 20 and 200 MHz. They are indicated by the following icons: ：20 MHz bandwidth limit ：200 MHz bandwidth limit... -
Page 24: Timebase And Trigger Descriptor Boxes
Vertical Scale: The scale of each grid in the vertical direction. For example, when the vertical scale is 1.00 V/div, the full scale of the oscilloscope is 1.00 V/div*8 div=8 V. Vertical Offset: The offset of the channel in the vertical direction. When the vertical offset is 0, the channel offset indicator is located in the middle of the vertical axis. - Page 25 Trigger source • C1~C4: Analog channels • EXT: External trigger channel • EXT/5:5x attenuation of external trigger channel • AC Line: AC mains supply • D0~D15: Digital channels Trigger coupling: Coupling mode of the current trigger source. It is only valid when the trigger source is C1~C4, EXT or EXT/5.
-
Page 26: Dialog Box
8.6 Dialog Box The dialog box on the right side of the screen is the main area for setting the parameters of the selected function. A. Title bar. Touching the bar can hide the dialog box, and touching again can open the dialog box. B. -
Page 27: Touch Gestures
Let’s use the operation of setting the “deskew” of a channel as an example: If the expected value is 65 ns, input “65” on the virtual keypad, and then choose the unit n to complete the operation. On the virtual keypad, touching the button Max, Min, and Default quickly set the parameter to its maximum, minimum and default values. - Page 28 Drag the waveform up and down to Pinch and spread the waveform move it on the vertical axis vertically to re-scale the vertical gain Touch and drag the cursor to move it Touch and drag the cursor information region to move the pair of cursors simultaneously Draw a rectangular box to create a zone or a histogram region.
-
Page 29: Mouse And Keyboard Operation
8.8 Mouse and Keyboard Operation The T3DSO2000A user interface features mouse control as well as the touch screen. If the oscilloscope is connected to a USB mouse, you can click on the object with the mouse instead of touching the object. Similarly, if a USB keyboard is connected, you can use the keyboard to input characters instead of using the virtual keyboard. -
Page 30: Vertical Control
9.2 Vertical Control A. When a channel is disabled, push the channel button to turn it on. When the channel is turned on but inactive, push the button to activate it. When the channel is turned and activated, push the button to disable it. B. -
Page 31: Trigger Control
9.4 Trigger Control A. Opens the trigger setup dialog box B. Auto mode: Triggers after a preset period if no valid trigger occurs C. Single mode: Triggers once when all conditions are met D. Normal mode: Triggers repeatedly when all conditions are met E. -
Page 32: Common Function
9.7 Common Function A. Press the button to turn on the search function and open the SEARCH dialog box. Press again to turn off the search function. B. Press the button to turn on navigate function and open the NAVIGATE dialog box. Press again to turn off the navigate function C. -
Page 33: Other Buttons
9.10 Other Buttons Enables/Disables measurements and recalls the MEASURE dialog box. Performs a screenshot save to an external storage device. The supported format includes bmp \ jpg \ png. Enables/Disables the touch screen. The LED on the button lights to indicate that the touch screen is working. -
Page 34: Descriptor Box
For example, to open the trigger setup dialog box, you can follow the steps below: Trigger>Menu The operations can be completed either by touch or by mouse clicks. 10.2 Descriptor Box For setup of channels, math, ref, timebase and trigger, there are dialog boxes at the bottom of the display. -
Page 35: Quickly Capture The Signal
11 Quickly Capture the Signal This is an example describing how to acquire a signal quickly. In this example, we assume the signal is connected to channel 1 and other channels are disabled. First, press the channel 1 button to turn on channel 1. The LED on the button lights and the descriptor box of channel 1 is displayed at the bottom of the screen. -
Page 36: Channel Setup
12.2 Channel Setup Touch the channel descriptor box, a quick dialog will pop up. Vertical scale and offset can also be set from this dialog box. A. Touch the region to set the vertical scale with the universal knob or virtual keypad B. - Page 37 A. Turn channel on/off B. Coupling (DC, AC or GND) C. Bandwidth limit (Full, 200 MHz or 20 MHz) D. Probe attenuation (1X, 10X, 100X or custom) E. Set the label text. Click to recall the label setting. Users can customize the text and display of the label F.
- Page 38 The oscilloscope will automatically convert the vertical scale according to the current probe attenuation factor. For example, the vertical scale of the oscilloscope under 1X attenuation is 100 mV/div, and the vertical scale will be automatically set to 1 V/div if the probe attenuation is changed to 10X.
- Page 39 Deskew Due to the skew between channels, cables or probes, the delay of signals passing through different measurement paths may be inconsistent. For example, two coaxial cables with a 1-inch difference in length could introduce a skew of more than 100 ps. In some scenarios (e.g.
-
Page 40: Digital Channels
The equipment shall be used only for the purposes specified by the manufacturer. The T3DSO2000-LS probe is used only for Teledyne Test Tools series of oscilloscopes. Protection mechanisms can be compromised if the way the devices connected by the T3DSO2000-LS are not used for their intended purpose. -
Page 41: Enable/Disable The Digital Channels
Do not use equipment in humid or explosive environment. Only used indoors. The T3DSO2000-LS is designed to be used indoors and should only be operated in a clean, dry environment. Do not use the equipment when you suspect a problem. Do not use the T3DSO2000-LS if the T3DSO2000-LS or any parts are damaged. -
Page 42: Digital Channel Setup
A. Digital channel waveform display, which shares the same grid area with the analog channels. B. Digital channel descriptor box C. Dialog box D. Digital channel indicators. Up to 16 digital channels are organized in two groups with different thresholds: D15~D8 and D7~D0. Every channel can be turned on or off individually. - Page 43 F. Reset the height to default value G. Turn off the digital channels H. Open digital dialog box on the right side Height=8div, Position=0div Height=4div, Position=1div The quick menu only covers the height range and position of the digital channels display area.
-
Page 44: Horizontal And Acquisition Setup
Threshold Input Signal Sampling Points Digital Waveform The configurable logical level includes TTL, CMOS, LVCMOS 3.3V, LVCMOS 2.5V and Custom. The setting range of the custom threshold is -10.0V to + 10.0V. 14 Horizontal and Acquisition Setup 14.1 Timebase Setup The timebase setup is used to adjust the scale and offset of the X (horizontal) axis. -
Page 45: Acquisition Setup
A. Set the horizontal scale (timebase) by the virtual keypad B. ▲ to increase and ▼ to decrease the horizontal scale C. Set the trigger delay by the virtual keypad D. ▲ to increase and ▼ to decrease the trigger delay E. - Page 46 Memory Depth: The maximum memory depth that can be supported. According to the formula "acquisition time = sample points x sample interval", setting a larger memory depth can achieve a higher sample rate for a given time base, but more samples require more processing time, degrading the waveform update rate.
-
Page 47: Acquisition
X: Linear interpolation, the simplest way of interpolation, connects two original points • with a straight line. Sinc: Sin(x)/x interpolation, the original point is interpolated according to the • Nyquist reconstruction formula, which has a good time-domain recovery effect for sine wave. But for step signals/fast rise times, it will introduce false overshoot due to the Gibbs phenomenon. -
Page 48: Roll Mode
Peak mode Normal mode 14.2.3 Roll Mode Press the Roll button on the front panel to enter roll mode. In this mode, the waveform moves across the screen from right to left, similar to a strip chart recorder. The horizontal delay control of the waveform will be disabled when roll mode is active. It only operates at timebase values of 50 ms/div and above. - Page 49 The T3DSO2000A can achieve a minimum 2μs trigger interval in Sequence mode, corresponding to a waveform update rate of 500,000 wfm/s. After the acquisition is finished, the oscilloscope will map all the segments together to the screen. If you need to view and analyze each frame separately, history mode will help (see the section "...
- Page 50 In normal mode, 5 pulses can be obtained on the screen with the sample rate of 1 GSa/s at the maximum memory depth. Set the trigger mode to "Single", the timebase to 50 ns/div. Turn on the Sequence mode, and set the segments to maximum (5,000 in this example, up to 90,000 depending on the number of samples at the current time base).
-
Page 51: History
In the example, 5000 pulses can be obtained with the sample rate of 2 GSa/s at the maximum memory depth. 14.3 History Press the History button on the front panel or touch Analysis>History to recall history dialog box. A. Turn on or off history mode B. - Page 52 The oscilloscope automatically stores acquired frames. It can stores up to 90,000 frames but the number varies due to the channel memory depth and timebase settings. Turn on history mode, then the stored frames can be recalled and measured. Continuing with the example in the section above. In Sequence mode, all waveforms that satisfy the trigger conditions are mapped to the display.
-
Page 53: Zoom
In addition to manually specifying a frame, history mode supports autoplay. Press the softkey to replay the waveform from the current frame to the first. Press the softkey to stop replay. Press the softkey to replay the waveform from the current frame to the last. Touch the Interval Time area to control the speed of automatic play. - Page 54 Adjust the horizontal position of the zoom area by dragging left and right in the zoom area of the main window or waveform in Zoom window Adjust the horizontal position of the waveform by dragging left and right in the gray area of the main window Adjust the horizontal scale of the Zoom window by horizontal pinch and spread in...
-
Page 55: Trigger
15 Trigger 15.1 Overview The oscilloscope only acquires waveforms of interest (i.e. the ones that satisfy the trigger condition) and aligns all trigger events at the trigger position to form a stable waveform display. The trigger is one of the most important features of an oscilloscope since we can only analyze a signal that we are able to trigger in a reliable and stable manner. - Page 56 A. Touch the level region and rotate the Level knob on the front panel to adjust trigger level; touch the region again and the virtual keypad will be available B. ▲ to increase and ▼ to decrease the trigger level C.
-
Page 57: Trigger Level
Trigger Related Label Trigger level Indicator Horizontal 0 position Horizontal 0 position (out Indicator of screen) Indicator 15.3 Trigger Level Both analog and digital triggers must have a correct trigger level value. The oscilloscope judges whether a waveform satisfies the trigger condition when it crosses the trigger level, shown in the example as a yellow dashed horizontal line. -
Page 58: Trigger Mode
15.4 Trigger Mode The trigger mode determines how the oscilloscope acquires waveforms. ：An internal timer triggers the sweep after a preset timeout period if no trigger has Auto been found, so that the oscilloscope continuously updates the display whether a trigger happens or not. -
Page 59: Edge Trigger
Window--Trigger when the signal leaves the widow region. Interval--Trigger on the second edge when the time between the edges is inside or outside a selected time range Dropout--Trigger when the signal disappears for longer than the Dropout value. Runt--Trigger when a pulse crosses the 1st threshold but not the 2nd before re-crossing the 1 threshold again Pattern-- Trigger when pattern condition transitions from false to true. -
Page 60: Slope Trigger
15.5.3 Slope Trigger The slope trigger looks for a rising or falling transition from one level to another level in the specified time range. For example, positive slope time is defined as the time difference between the two crossing points of trigger level lines A and B with the positive edge as shown in the figure below. -
Page 61: Pulse Trigger
Great than a time value（≥）-- Trigger when the positive or negative slope time of the input signal is greater than the specified time value. Within a range of time value（[--,--]）-- Trigger when the positive or negative slope time of the input signal is greater than the specified lower limit of time and lower than the specified upper limit of time value. -
Page 62: Video Trigger
Greater than a time value（≥）--Trigger when the positive or negative pulse time of the input signal is greater than the specified time value. Below is an example of trigger condition is set to positive pulse width > 100ns Within a range of time value（[--,--]）-- Trigger when the positive or negative pulse time of the input signal is greater than the specified lower limit of time and lower than the specified upper limit of the time value. - Page 63 Touch the Standard and select the video standard. The T3DSO2000A supports the following video standards: TV Standard Scan Type Sync Pulse NTSC Interlaced Bi-level Interlaced Bi-level HDTV 720P/50 Progressive Tri-level HDTV 720P/60 Progressive Tri-level HDTV 1080P/50 Progressive Tri-level HDTV 1080P/60 Progressive Tri-level HDTV 1080i/50...
- Page 64 Of Lines Interlace Of Fields Trigger Line Trigger Field 1/2/4/8 1/1 - 2/1 - 4/1 - 8 1/2/4/8 1/1 - 2/1 - 4/1 - 8 1/2/4/8 1/1 - 2/1 - 4/1 - 8 Set the video trigger for video signal Touch Sync for trigger mode selection, video trigger mode has "Any"...
- Page 65 1. Press the Setup button on the front panel to open the trigger menu. 2. In the trigger menu, touch Type, select "Video". 3. Touch the Source and select CH1 as the trigger source. 4. Touch the Standard and select the "NTSC". 5.
-
Page 66: Window Trigger
6. Touch the Sync to select the synchronization mode for the input signal: a) Select the "Any" mode, and the signal can be triggered on any line that meets the trigger condition. b) Select the "Select" mode, then set the specified line and the specified field to trigger the signal. -
Page 67: Interval Trigger
To set window trigger via the Relative window type When the window trigger type is set to "Relative", touch the trigger descriptor box. The pop-up menu will show two user- defined parameters: “Level +/-Delta" and "Level Center". The above two parameters can be set in the following two ways: 1. -
Page 68: Dropout Trigger
15.5.8 Dropout Trigger Dropout trigger includes two types: Edge and state. Edge Trigger when the time interval (△T) from when the rising edge (or falling edge) of the input signal passes through the trigger level to when the neighboring rising edge (or falling edge) passes through the trigger level is greater than the set time, as shown in the figure below: State... -
Page 69: Runt Trigger
15.5.9 Runt Trigger Runt trigger looks for pulses that cross one threshold but not another as shown in the figure below: • A positive runt pulse across through the low level but not the high level. • A negative runt pulse across through the high level but not the low level. Holdoff, coupling, and noise reject can be set in the dropout trigger, see the sections "Holdoff", "... - Page 70 Logic (AND, OR, NAND, NOR), source, limit range, and time value can be set in the trigger dialog box. When the logic is "OR" or "NAND", the setting of the time limit is invalid. Source Setting Touch the Source Setting area to recall the following dialog box and set up for each channel separately.
-
Page 71: Trigger Source
15.6 Trigger Source The trigger sources supported by each trigger type are different. See the table below for details: 15.7 Holdoff Holdoff is an additional condition for triggers and can be used to stabilize the triggering of complex waveforms (such as a pulse series). It can be set to a time or number of events. -
Page 72: Trigger Coupling
For example, to achieve a stable trigger on the repetitive pulses shown in the figure below set the holdoff time (t) to 200 ns < t < 600 ns. Holdoff by Event The holdoff event is the number of events that the oscilloscope counts before re-arming the trigger circuitry. -
Page 73: Noise Reject
• HFR: Signals are DC coupled to the trigger circuit and a low-pass filter network attenuates high frequencies (used for triggering on low frequencies). See the datasheet for details of the cut-off frequency. • LFR: The signal is coupled through a capacitive high-pass filter network, DC is rejected and low frequencies are attenuated. -
Page 74: Zone Trigger
Noise Reject On 15.10 Zone Trigger The T3DSO2000A includes a zone trigger to help isolate elusive glitches. There are two user-defined areas: Zone1 and Zone2. Users can set the property of each zone as “intersect” or “not intersect” as an additional condition to further isolate the interesting event quickly. - Page 75 Gesture When the zone trigger is turned on, touch-and-hold on any position within the waveform area and draw a rectangular box, as shown in the following figure: When the users finger moves off the screen, a menu pops up for selecting the zone and setting the zone properties.
- Page 76 Select C1 as the source, turn on zone1, Select C1 as the source, turn on zone1, and set the property as "Intersect" and set the property as "Not Intersect" Dialog Box Touch Zone> Zone Setting to recall the dialog box. A.
- Page 77 Thanks to the high waveform update rate of the T3DSO2000A, we can confirm there is bus contention happening by enabling the persistence display, as shown in the figure below: In this case, the zone trigger is a quick and simple way to capture the interesting waveform.
-
Page 78: Serial Trigger And Decode
Now, we can accurately capture the exact bus contention waveform: 16 Serial Trigger and Decode 16.1 Overview The T3DSO2000A supports serial bus triggering and decoding on the following serial bus protocols: I C, SPI, UART, CAN, LIN, and also support optional FlexRay, CAN FD, I2S and MIL-STD-1553B Press the Setup button on the front panel or touch the trigger descriptor box, and then select the Type as Serial in the trigger dialog box to set the serial trigger:... - Page 79 Press the Decode button or touch the Analysis>Decode to turn on the serial decode dialog box: A. Set the list of decode result B. Select the bus to set, Bus1 and Bus2 C. Turn on/off the bus D. Set the bus display E.
-
Page 80: I2C Trigger And Serial Decode
16.2 I2C Trigger and Serial Decode This section covers triggering and decoding I2C signals. Please read the following for more details: " I2C Signal Settings", " I2C Trigger" and " I2C Serial Decode". 16.2.1 I2C Signal Settings Connect the serial data signal (SDA) and the serial clock signal (SCL) to the oscilloscope, set the mapping relation between channels and signals and then set the threshold level of each signal. -
Page 81: I2C Trigger
Note: The synchronization is not automatic. If the settings at one place change, a copy operation is necessary to re-synchronize. 16.2.2 I2C Trigger When the protocol is set to I2C, the following trigger conditions can be set: Start, Stop, Restart, No Ack, EEPROM, or an R/W frame with specific device address and data value. - Page 82 7 Address & Data — the oscilloscope will be triggered on read or write frame in 7-bit address mode. Frame (Start: 7-bit address: R/W: Ack) — Data1 and Data2 are set to “0xXX”. If all bits match, then trigger on the Ack bit followed by the R/W bit. Frame (Start: 7-bit address: R/W: Ack: Data: Ack: Data2)—If all bits match, then trigger on the Ack bit followed by the Data2.
- Page 83 If you set the trigger condition to 7 address & data or 10 address & data: • Address can be selected in the hexadecimal range of 0x00 to 0x7F (7-bit) or 0x3FF (10-bit). If the address is selected as "0xXX (7-bit address)"...
-
Page 84: I2C Serial Decode
16.2.3 I2C Serial Decode The layout of the touch screen display when I2C decoding is enabled is as follows: A. Waveform display area, shows the original waveforms of the bus signals B. Bus display, shows the decode result of the bus. At most two buses can be decoded at the same time. - Page 85 List • TIME — The horizontal offset of the current data frame head relative to the trigger position. • Address — Address value. For example, "0x2AB" means that address = 2AB with acknowledgement. • R/W — Read address or write address. •...
-
Page 86: Spi Trigger And Serial Decode
16.3 SPI Trigger and Serial Decode This section covers triggering and decoding SPI signals. Please read the following for more details: " SPI Signal Settings", " SPI Trigger" and " SPI Serial Decode". 16.3.1 SPI Signal Settings Connect the CLK, MOSI, MISO and CS signals to the oscilloscope and set the mapping relation between channels and signals. - Page 87 • Clock Timeout – It is not necessary to specify the source and the threshold level for the CS signal. The only parameter for the CS signal is the timeout Limit, which is the minimum time that the clock signal must be held idle for before the oscilloscope acquires valid data.
- Page 88 If the data width is set to be greater than 8-bits (such as 16-bits), measure the clock idle time between 8-bit data packets as 20 μs, and then set the timeout time to a value between 20 and 300 μs. In this example, it is set to 30 μs: 1.800.561.8187 information@itm.com www.
-
Page 89: Spi Trigger
16.3.2 SPI Trigger The trigger condition for the SPI trigger is mainly about data. Touch Trigger Setting in the dialog box to set data: A. Trigger Type: MISO or MOSI B. Data Length: 4~96 bits C. Set to trigger on the specified data value. Touch Data Value twice, and enter the value by the virtual keypad, or touch All Same to set all bits to 0, 1 or ignored ("X") D. -
Page 90: Uart Trigger
The method of copying settings is the same as I2C signal settings. See " I2C Signal Settings" for details. 16.4.2 UART Trigger Touch Trigger Setting in the dialog box to set the trigger condition: A. Source Type: RX or TX B. -
Page 91: Can Trigger And Serial Decode
16.5 CAN Trigger and Serial Decode This section covers triggering and decoding CAN signals. Please read the following for more details: " CAN Signal Settings", " CAN Trigger" and " CAN Serial Decode". 16.5.1 CAN Signal Settings Connect the CAN_H and CAN_L signals to the oscilloscope, set the mapping relation between channels and signals, and then set the threshold level of each signal. - Page 92 On the bus: • ID is displayed in green. • LEN (data length) is displayed in light yellow. • DATA is displayed in white. • CRC is displayed in blue. • The red point at the end of a segment indicates there is not enough space on the display to show the complete content of a frame and some content is hidden.
-
Page 93: Lin Trigger And Serial Decode
16.6 LIN Trigger and Serial Decode This section covers triggering and decoding LIN signals. Please read the following for more details: “ LIN Signal Settings”, “ LIN Trigger” and “ LIN Serial Decode”. 16.6.1 LIN Signal Settings Connect the LIN signal to the oscilloscope, and then set the threshold level of the signal. The process of specifying the source and threshold is similar to “... -
Page 94: Flexray Trigger And Serial Decode
Data — Data values. • Checksum — Data checksum. DYNE TELEDYNE DYNE 16.7 FlexRay Trigger and Serial Decode This section covers triggering and decoding FlexRay signals. Please read the following for more details: " FlexRay Signal Settings", " FlexRay Trigger" and "... -
Page 95: Flexray Trigger
In the BusConfig menu of the trigger and decoding section, the baud rate can be set to 2.5 Mb/s, 5.0 Mb/s, 10.0 Mb/s or Custom. The method of copying settings is the same as I2C signal settings. See " I2C Signal Settings"... - Page 96 • PL (Valid Data Length) is displayed in frames, in words, in light yellow. • HCRC (Head Check Code) is displayed in the frame and displayed in blue. • CYC (cycle) is displayed in the frame and displayed in light yellow. •...
-
Page 97: Can Fd Trigger And Serial Decode
16.8 CAN FD Trigger and Serial Decode This section covers triggering and decoding CAN FD signals. Please read the following for more details: " CAN FD Signal Settings", " CAN FD Trigger" and " CAN FD Serial Decode". 16.8.1 CAN FD Signal Settings Connect the CAN FD signal to the oscilloscope, and then set the threshold level of the signal. -
Page 98: Can Fd Serial Decode
• ID + Data— The oscilloscope triggers on the data frame that matches the specified ID and data.ID, ID Bits (11-bit or 29-bit), Curr ID Byte (1st, 2nd, 3rd, or 4th byte), Data1 and Data2 can be set. • Error— The oscilloscope triggers on the error frame. •... -
Page 99: I2S Trigger And Serial Decode
In the list view: • Time— The horizontal offset of the current data frame head relative to the trigger position. • Type— Type of the frame. Standard CAN frame is represented by "Std", CAN FD frame is represented by "FD", the extended frame is represented by "Ext" and the remote frame is represented by "RTR". -
Page 100: I2S Trigger
In addition to specifying the source and the threshold level, WS signals also require the specification of the Left CH. • Low–Select left channel when WS is low and right channel when WS is high. • High–Select the right channel when WS is low and left channel whenWS is high. The method of copying settings is the same as I2C signal settings. -
Page 101: I2S Serial Decode
• Mute— Trigger on the mute signal. Mute signal: Volume is less than the set value and duration reaches the set value. • Touch MNF to set the mute threshold by the universal knob or virtual keypad. The range of value is related to the number of Data Bits. •... -
Page 102: Mil-Std-1553B Trigger And Serial Decode
16.10 MIL-STD-1553B Trigger and Serial Decode This section covers triggering and decoding MIL-Standard 1553B signals. Please read the following for more details: " MIL-STD-1553B Signal Settings" and " MIL-STD-1553B Serial Decode". 16.10.1 MIL-STD-1553B Signal Settings Connect the MIL-STD-1553B signal to the oscilloscope, set the mapping relation between channels and signals, and then set the threshold level of each signal. -
Page 103: Cursors
In the decoding list view: • Time— The horizontal offset of the current data frame head relative to the trigger position. • RTA— The RT address • Type— Type of the word • Data— Data values • Error— Error type 17 Cursors 17.1 Overview Cursors are important tools when measuring signals. - Page 104 Cursors Mode • Manual -- Manually set the cursors’ position. Cursors type (horizontal, vertical, horizontal + vertical) is available in this mode. • Track -- The cursor type is automatically set to "horizontal + vertical". In this mode, only horizontal cursors are adjustable, while the vertical cursors automatically attach to the cross-point of the cursor and the source waveform.
- Page 105 Cursors Type X (horizontal) -- Vertical dotted lines that measure horizontal time (when the source is an FFT waveform, X cursors measure frequency). X cursors (time) X cursors (frequency) • X1 — The left (default) vertical dotted line. It can be manually moved to any horizontal position on the screen.
- Page 106 • Y1 — The upper (default) horizontal dotted line. It can be manually moved to any vertical position on the screen. • Y2 — The lower (default) horizontal dotted line. It can be manually moved to any vertical position on the screen. •...
- Page 107 Cursors Reference X cursors reference: • Fixed Delay– When the timebase is changed, the value of X cursors remain fixed. • Fixed Position– When the timebase is changed, the X cursors remain fixed to the grid position on the display. Y cursors reference: •...
- Page 108 Fixed position, timebase is changed to 100ns/div, the grid number of X cursors (-1div, 2div) remains fixed. The value of X1 and X2 are changed to -100 ns, 200 ns. Fixed delay, timebase is changed to 100 ns/div, the value of X cursors (-50 ns, 100 ns) remains fixed.
-
Page 109: Select And Move Cursors
17.2 Select and Move Cursors The cursors can be selected and moved directly by gestures and the universal knob on the front panel, in addition, they can be selected in the cursors dialog box. Gestures Directly touch the cursor and drag it, as shown below: Touch the display area of △X (or △Y) in M1 mode and drag it to move the two cursors simultaneously, as shown in the figure below. -
Page 110: Measurement
Universal Knob Move the cursor position by turning the universal knob on the front panel. Press the knob to select different cursor lines. For example, if the current cursor is X1, press to select X2, and press again to select X1-X2. Gestures move the cursor quickly but not precisely, while the knob moves the cursor precisely but not as quickly. - Page 111 A. The waveform display area automatically compresses when the other windows are displayed B. Measurement parameters and statistics display area. If select the mode as “Simple”, the "Simple" parameter area is displayed C. Statistics histogram display area D. Measure dialog box Press the Measure button on the front panel or touch Measure>Menu to open the dialog box.
-
Page 112: Set Parameters
I. Clear and restart the statistics. Pressing the Clear Sweeps button on the front panel has an equivalent effect J. Set the time gate for measurement 18.2 Set Parameters Touch Type in the measure dialog box, or touch + in the measurement parameters and statistics display area to open the parameter selection window: A. - Page 113 For the channel delay (CH Delay) measurement, because the number of sources involved is greater than 1, the steps to specify the source is different: In the parameter selection area, the channel corresponding to Source A is specified first, and then the channel corresponding to Source B. Finally, the measurement parameter is selected.
-
Page 114: Type Of Measurement
To remove Period from the “Favorite” tab: Advanced>Type >Favorite>Period>Delete from favorite 18.3 Type of Measurement 18.3.1 Vertical Measurement Vertical measurement includes 19 parameters: 1.800.561.8187 information@itm.com www. .com T3DSO2000A Manual. Page 110... - Page 115 • Max: Highest value in the input waveform • Min: Lowest value in the input waveform • Pk-Pk: Difference between maximum and minimum data values • Top: Value of most probable higher state in a bimodal waveform • Base: Value of most probable lower state in a bimodal Waveform •...
-
Page 116: Horizontal Measurement
• Preshoot (FPRE): Overshoot before a falling edge. • Equal to 100 %*( max-top)/amplitude. • Preshoot (RPRE): Overshoot before a rising edge. • Equal to 100 %*( base-min)/amplitude. • L@T: Level measured at trigger position 18.3.2 Horizontal Measurement Horizontal measurement includes 17 parameters: 1.800.561.8187 information@itm.com www. -
Page 117: Miscellaneous Measurements
• Period: Time between the middle threshold points of two consecutive like-polarity edges. • Freq: Reciprocal of period • Time@max: Time of maximum value • Time@min: Time of minimum value • +Width: Time difference between the 50% threshold of a rising edge to the 50% threshold of the next falling edge of the pulse •... -
Page 118: Delay Measurement
• +Area: Area of the waveform above zero • -Area: Area of the waveform below zero • Area: Area of the waveform • AbsArea: Absolute area of the waveform • Cycles: Number of cycles in a periodic waveform • Rising Edges: Number of rising edges in a waveform •... -
Page 119: Trend
• FRLR：The time between the first rising edge of source A and the last rising edge of source B at the 50% crossing • FRLF：The time between the first rising edge of source A and the last falling edge of source B at the 50% crossing •... -
Page 120: Display Mode
18.5 Display Mode In advanced measurement mode, two display modes are supported: M1 and M2. In M1 mode, up to 5 parameter measurements are displayed at a time. When statistics are enabled, they are listed under the measurement items. Touch a column to add or replace a measurement. -
Page 121: Measurement Statistics
18.6 Measurement Statistics Enable the Statistics function to observe the distribution of the measured values of every selected parameter. • Value – The current measurement • Mean – Average of all historical measurements • Min – The minimum of all historical measurements •... -
Page 122: Simple Measurements
A. Parameter B. Histogram display area. The X-axis represents measured values and the Y-axis represents the probability. C. Count of statistics D. Current value E. The bin that includes the maximum value and the probability of a value falling into it F. -
Page 123: Gate
18.9 Gate Sometimes the user may want to measure parameters for a certain specified time range of the signal and ignore signal parts that lie outside of that range. In this case, the Gate function can be helpful. Touch Gate in the measure dialog box, then two horizontal cursors A and B will appear in the grid area. - Page 124 A. Select the math trace, F1 or F2 B. Turn on or off the math operation C. Select the function. Touch the area to recall the function setting page, and select the source and operator D. Set the vertical scale of the math operation E.
-
Page 125: Arithmetic
19.2 Arithmetic The T3DSO2000A can perform arithmetic operations including addition, subtraction, multiplication or division on any two analog input channels. The values of Source A and Source B are computed point-by-point. The following figure shows an example of F1 = C1 + C2: 1.800.561.8187 information@itm.com www. -
Page 126: Average
19.2.1 Average The oscilloscope accumulates multiple waveform frames and calculates the average as the result. If a stable trigger is available, the resulting average has a random noise component lower than that of a single-shot record. The more frames that are accumulated, the lower the noise is. -
Page 127: Algebra
ERES Display 19.3 Algebra The T3DSO2000A can perform algebra operations including differential (d/dt), integral (∫dt) and square root (√) 19.3.1 Differential The differential (d/dt) operator is used to calculate the derivative of the selected source. It is always used to measure the instantaneous slope of the waveform, such as the slew rate of an operational amplifier. -
Page 128: Integral
dx = 2 dx = 6 Note: Differentiation is sensitive to noise. 19.3.2 Integral Integral operation integrates the waveforms on the screen or within the specified gate. Setting Offset in the integral menu provides an approach to correct the DC offset of the source. -
Page 129: Square Root
19.3.3 Square Root Square root （√） calculates the square root of the selected source. If the waveform value is negative (the waveform is below the ground level), the result is displayed as zero. 19.4 Frequency Analysis The result of FFT (Fast Fourier Transform) calculations is the frequency spectrum of the source signal. - Page 130 A. Time-domain waveform display area B. Spectrum (FFT) waveform display area C. FFT parameter display area D. Dialog box Parameter Display Area The FFT parameters are displayed in the upper right of the spectrum waveform display area: • FFT sample rate (Sa): FFT operation results present the first Nyquist zone (DC - Sa/2) of the frequency spectrum.
- Page 131 Select Operation as FFT in the math dialog box and touch Config to recall the configuration dialog box: A. Set the maximum points (2 , n = 11 - 21) B. Set the window type (Rectangle, Blackman, Hanning, Hamming, and Flattop) C.
- Page 132 Display Mode • Split: Time-domain waveform and frequency domain waveform are displayed separately. The time-domain waveform is on the upper half screen, while the frequency domain waveform is located within the lower half of the display. In Split mode, if Zoom is enabled, the zoomed waveform and the frequency domain waveform are displayed on the lower half screen together.
- Page 133 FFT Mode • Normal: Displays the FFT result of each frame directly. • Max-Hold: Holds the maximum value in the historic frame on the display until cleared. This mode is suitable for detecting discontinuous waves, such as sporadic pulse signals, or frequency hopping signals. Press the Clear Sweeps button on the front panel to clear the max-hold waveform.
- Page 134 Horizontal Control Touch Center Freq to set the center frequency of FFT waveform by the universal knob or the virtual keypad. Touch Hz/div to set the horizontal scale of FFT waveform by the universal knob or the virtual keypad. The reference point for horizontal scale scaling is the center frequency. FFT Tools The T3DSO2000A provides two tools for FFT waveform: Peaks and Markers.
- Page 135 When the FFT tool type is set to markers, the dialog box is as follows: A. Control markers. Touch to control the display and position of each marker B. Marker on peaks. It will automatically mark the peak that meets the conditions of Search Threshold and Search Excursion C.
-
Page 136: Formula Editor
Measure the FFT waveform Press the Cursors button on the front panel to turn on the cursor function, and then specifying the source as "Math". X1 and X2 cursors can be used to measure the frequency value at the cursor position. Only the maximum parameter of the FFT is supported in automatic measurement. -
Page 137: Reference
20 Reference Data from analog channels or math can be saved to the reference locations (REFA / REFB / REFC / REFD) in the built-in non-volatile memory. The saved reference waveform can be recalled to be compared with the current waveform. A. -
Page 138: Search
D. Reference dialog box, hidden in this figure Press the Ref button on the front panel, or touch + in the descriptor box region and select Ref to recall the ref dialog box. A. Select the location of the reference (REFA / REFB / REFC / REFD) B. - Page 139 A. Search event indicator, marking the time point of an event B. Total number of events marked on the display C. Search dialog box, hidden in this example In the stop state, the area shows the index of the current event /total number of events. The current event is the one in the center of the display.
- Page 140 Setup Menu Select and set the search type in the Setup Menu. The T3DSO2000A provides five search conditions: Edge, Slope, Pulse, Interval and Runt. Search setup is similar to the corresponding trigger type. See the sections “ Edge Trigger”, “ Slope Trigger”, ” Pulse Trigger”, ” Interval Trigger” and ” Runt Trigger” for details.
-
Page 141: Navigate
22 Navigate Press the Navigate button on the front panel or touch the menu Analysis>Navigate to recall the navigate dialog box. The T3DSO2000A provides three navigate types: Search Event, Time and History Frame. Navigate by Time The oscilloscope automatically adjusts the trigger delay according to the direction set by the user. - Page 142 Navigate by History Frame When the history function is turned on, Navigate can be used to play history frames (see the chapter " History" for details of history function). Touch Type in the navigate dialog box to select the navigate type as “History Frame”.
- Page 143 The following is an example of an occasional runt signal to demonstrate how to quickly locate and find events of interest by using the combination of Search and Navigate: The input signal is a 2 V periodic square wave, in which every 10ms there is a runt pulse with a height of 1/3 of the normal amplitude: First, set the trigger type to Runt to trigger on the dwarf...
- Page 144 Turn on Zoom function to observe the full view of the frame and the detail of the third dwarf pulse at the same time: Press the Run/Stop button on the front panel to stop the acquisition, and then follow the steps Navigate>Type to select “Search Event”. The following figure shows the first dwarf pulse.
-
Page 145: Mask Test
23 Mask Test 23.1 Overview Users can create masks and define the rule used to evaluate Pass/Fail operations. An event violating the rule is defined as a failure and a pulse can be generated from the "Aux Out" port on the back panel. This is very useful to find and quantify anomalies in production tests or similar batch measurements. - Page 146 A. Mask area in green. Any dot violating the rule is highlighted in red, instead of the normal waveform color. B. Pass/Fail information display area, including the count of the passing frames, failed frames, total frames, and the fail rate. C.
-
Page 147: Mask Setup
23.2 Mask Setup Touch Mask Setup in the Mask Test dialog box to set the mask. There are two methods to create a mask, one is by setting horizontal and vertical values, and the other is by drawing a polygon mask. A. -
Page 148: Mask Editor
Set the values for Mask X and Mask Y (in divisions of display graticule), and then perform Create Mask to generate the mask. The horizontal and vertical adjustment range is 0.08~4.00 div. X = 0.2 div, Y = 0.2 div X = 1 div, Y = 1 div Saving and recalling mask files (*.msk) is similar to the operation of setup files, see the chapter "Save/Recall"... - Page 149 A. Menu bar B. Coordinate of the latest touched point on the display C. Mask edit area, which is equivalent to the grid area. In this example, a hexagon has been created as a part of the mask D. Toolbar E.
-
Page 150: Pass/Fail Rule
Delete Polygon: Deletes selected polygon To edit a vertex, side or polygon object, firstly select it, and then move it by a dragging gesture or by entering the desired value in coordinate edit area. For a side, the value is for its middle point. -
Page 151: Counter
24 Counter 24.1 Overview The counter is used to measure the frequency and period of a signal or count the events happening within it. The counter is asynchronous to the acquisition system of the oscilloscope. It can work well even if the acquisition of the oscilloscope is stopped (indicated by a red-colored Run/Stop button) Touch the menu Analysis>Counter to open counter dialog box: A. -
Page 152: Mode
24.2 Mode The counter provides 3 modes. Touch mode in the counter dialog box to open the mode selection window: • Frequency: Average frequency over a period of time • Period: The reciprocal of the average frequency over a period of time •... -
Page 153: Power Analysis
25 Power Analysis 25.1 Overview The T3DSO2000A supports a power analysis function as standard. Power analysis can help users quickly and easily analyze and debug switching power supply designs. It automatically calculates Power Quality, Current Harmonics, Inrush Current, Switching Loss, Slew Rate, Modulation, Turn On/Turn Off, Transient Response, PSRR, Power Efficiency, Output Ripple, etc. - Page 154 Q: Reactive Power =√Apparent Power −Active Power φ: Power Phase Angle: Phase difference between voltage and current cosφ: Power Factor, which is the ratio of active power and apparent power. Voltage Crest -- Voltage parameters of the power input including voltage crest, voltage effective value and voltage crest factor.
-
Page 155: Current Harmonics
25.3 Current Harmonics Current harmonics is used to analyze the input current harmonics. An FFT of the selected channel is performed to get the harmonic components. The signal settings and connection guide are the same as the power quality test. Configuration Touch Config to recall configuration dialog box: A. -
Page 156: Inrush Current
Parameter Description For the first 40 harmonics, the following values are displayed: Measured Value (RMS) -- The measured value displayed in the unit specified by the harmonic unit parameter Limit Value (RMS) -- Limits specified by the selected standard Margin (%) --The margin specified by selected standard parameters. The margin value is (standard value - measured value) / standard value * 100% Pass/Fail State -- Determine whether the measured value is passed or failed according to the selected standard. -
Page 157: Switching Loss
Signal Settings Touch Signal to recall signal settings dialog box: A. Set the input voltage source B. Set the input current source C. Set the expected current value, the range is 100 mA - 500 A. The oscilloscope will set the trigger level to expected current/20 and the vertical scale of the current channel to expected current/3. - Page 158 E. Connect power and turn on the deskew fixture. F. Touch Signal to enter the signal setting menu. Select the corresponding input channel, and then touch Auto Deskew to perform the calibration. When the process completes, a message will pop up indicating whether the deskew operation was successful or not.
-
Page 159: Slew Rate
Conduction Type Waveform -- The power waveform uses the original data, and the calculation formula is P = V * I，E = P * T. Rds (on) -- In the on the area (where the voltage level is lower than the voltage reference (adjustable)), the power calculation formula is P = I * Rds (on). -
Page 160: Modulation
Connection Guide Touch Signal>Connection Guide to recall the connection guide of slew rate, as shown in the figure below. Please follow the instructions in this figure for connection. Touch the icon on the top right of the guide to close. 25.7 Modulation Modulation analysis measures the control pulse signal of the switching device (MOSFET) and observes the pulse width, duty, period, frequency and other trends of the... -
Page 161: Output Ripple
25.8 Output Ripple Power supply ripple is an important parameter to evaluate DC power supplies, which represents the quality of output DC voltage. Ripple analysis can measure the current value, average value, minimum value, maximum value, standard deviation and count of the power supply output ripple. - Page 162 H. Return to previous menu Testing Conditions Turn On -- Determines the time taken for the power to reach a certain percentage of its steady-state output. The turning on time is between T2 and T1, where: T1 = When the input voltage first rises to a certain percentage (usually 10%) of its maximum amplitude T2 = When the output DC voltage rises to a certain percentage (usually 90%) of its maximum amplitude...
-
Page 163: Transient Response
25.10 Transient Response Transient response analysis can determine the response speed of the output voltage of the power supply to the change of the output load. This time starts from the first time that the output voltage exits the stable band and ends at the last time that the output voltage enters the stable band. -
Page 164: Psrr
Connection Guide Touch Signal>Connection Guide to recall the connection guide of transient response, as shown in the figure below. Please follow the instructions in this figure for connection. Touch the icon on the top right of the guide to close. 25.11 PSRR The power supply rejection ratio (PSRR) test is used to determine how the regulator suppresses ripple noise in different frequency ranges. -
Page 165: Power Efficiency
The power supply rejection ratio (PSRR) test is used to determine how the regulator suppresses ripple noise in different frequency ranges. The oscilloscope controls the arbitrary waveform/function generator to output a sweep signal, which is used to introduce ripple into the DC voltage transmitted to the voltage regulator. Measure the AC RMS ratio of input to output, and plot the relationship between the ratio and frequency. -
Page 166: Bode Plot
26 Bode Plot 26.1 Overview The T3DSO2000A supports an automatic bode plot function. This function provides a frequency response curve of the device-under-test as well as the interface for output sweep parameter control and data display settings. At this time, either the built-in waveform generator or one of the T3AFG series of Function Generators are supported. -
Page 167: Configuration
26.2 Configuration 26.2.1 Connection A. DUT input and output channels B. Channel gain. When it is set to Auto, the oscilloscope will automatically adapt the vertical scale according to the signal amplitude. When it is set to Hold, it will always keep the currently selected vertical scale. - Page 168 C. Set the number of sweep points. The larger the number of points, the higher the sweep resolution D. Set the amplitude of sweep signal E. Set the offset of the sweep signal F. Set the signal amplitude unit. When it is set to dB, reference level and load need to be G.
-
Page 169: Display
Touch Nodes to set the signal node number through the universal knob, or touch ▲ to increase the nodes and ▼ to decrease. Touch the cell in the table area to set the frequency and amplitude of the corresponding node. Touch to activate the cell, adjust the value through the universal knob, or touch the cell again to call up the virtual keypad. - Page 170 A. Set the scale of the amplitude coordinate axis B. Set the reference level, the max value of the amplitude coordinate axis C. Set the amplitude mode. Set to Vout to display the amplitude value of the output signal; set to Vout/Vin to display the amplitude ratio of the output signal to the input signal D.
-
Page 171: Data Analysis
A. Turn on/off the cursors of bode plot B. Set the cursors type (X or Y) C. Specify the cursor and set the position (by gestures, universal knob, or virtual keypad) D. Set the source 1 E. Set the source 2 F. - Page 172 A. Data list display area B. Cursors C. Datapoint location line D. Cursor information display area E. Measurement parameters display area F. Bode plot dialog box Data List Touch Data to recall the data setting dialog box: A. Turn on/off the data list B.
-
Page 173: Display
A. Set the position of measurement items, and support 5 measurement items at most B. Set the measurement source C. Measurement parameter area. Touch each parameter area to activate the measurement parameter. In the figure above, "UF" is activated. D. Clear all measurements E. - Page 174 A. Switch the waveform display type to Vectors (line display) or Dots B. Turn on or off the color grade C. Set persist D. Clear persist E. Clear display. The operation clears all waveforms displaying on the screen and clear persist F.
- Page 175 Dot Display Note: In the Run state, due to the high waveform update rate of the oscilloscope, the waveform displayed is the superposition of multiple frames. Therefore, what is seen using the dots display is not the discrete sampling points, but the display effect similar to equivalent sampling.
- Page 176 Warm color Cold color Color grade Off Color grade On Set Persist With persistence, the oscilloscope updates the display with new acquisitions but does not erase the results of previous acquisitions in the specified period. All previous acquisitions are displayed with reduced intensity. New acquisitions are shown in their normal color with normal intensity.
- Page 177 When the display dialog box and persist are off, double-pressing the Display/Persist button on the front panel can quickly turn on persistence. Touch Persist in the display dialog box to set the persistence time. • Off: Turn off persist. • Variable persist time (1s, 5s, 10s, 30s): Choose different persist times.
- Page 178 M2: Display 2*2 grid M3: Display without grid 1.800.561.8187 information@itm.com www. .com T3DSO2000A Manual. Page 174...
-
Page 179: Arbitrary Waveform Generator
28 Arbitrary Waveform Generator 28.1 Overview The T3DSO2000A supports a built-in arbitrary waveform/function generator as standard. The AWG functions include: • 6 basic waveforms: Sine, Square, Ramp, Pulse, Noise, and DC • 45 built-in and 2 custom arbitrary waveforms • Output frequency up to 50 MHz •... - Page 180 The following table shows all waveform types and corresponding parameters. The Arbitrary waveforms consist of two types: built-in waveforms and stored waveforms. Touch Arb Type in the AWG dialog box, and select the arbitrary in the pop-up window: There are 6 tabs in the window. Under each tab, a catalog of waveforms are listed. Built- in waveforms are stored in Common, Math, Engine, Window, and Trigo.
-
Page 181: Other Setting
28.4 Other Setting Touch Setting in the AWG dialog box to recall "Other Setting" dialog box: A. Select the output load B. Turn on/off the OVP (Over Voltage Protection) C. Do zero adjust D. Set to default E. Return to previous menu Output Load The selected output load value must match the load impedance. -
Page 182: Save/Recall
29 Save/Recall The T3DSO2000A supports saving setups, reference waveforms, screenshots, and waveform data files to internal storage or external USB storage devices (e.g. U disk). Saved setups and reference waveforms can be recalled as needed. 29.1 Save Type The T3DSO2000A supports save types: Setup, Reference, Image (*.bmp/*.jpg/*.png), Waveform Data (binary/csv/matlab). -
Page 183: Internal Save And Recall
To Default Key The oscilloscope provides two options for the default setting. When the Default Type is set to “Factory”, the factory default setting will be recalled by pressing the Default button on the front panel; When the Default Type is set to “Current”, the last setting saved by the “To Default Key”... -
Page 184: External Save And Recall
Save oscilloscope setup to internal memory Follow the steps below: A. Select Mode as "Save" B. Select Type as "Setup" C. Select Save Path as "Internal" D. Select No. of internal storage locations, 1~10 optional. E. Touch Save to perform the save operation A progress bar is shown when the Save operation is in progress. -
Page 185: File Manager
29.3.1 File manager The T3DSO2000A's file manager has similar style and operation with the Windows operating systems. A. Left window B. Right window C. Toolbar D. Save/Recall command bar E. Close the file manager Left window: Displays a list of available drives and internal folders. •... -
Page 186: External Save And Recall Instance
Toolbar: Graphical commands for file operations. • File Type: Specify the file type to display, including All (all types), *.xml,*.ref,*.bmp,*.jpg,*.png,*.csv,*.dat,*.bin, *msk, *smsk • View Type: Contains two modes of "Detail" and "Icon” Detail View Type Icon View Type • Root Dir: Jump to root directory quickly •... - Page 187 Secondly, set the parameters of the Save operation: • Select Mode as "Save" • Select Type as "BMP" • Select the Image Style. "Normal" saves images with the same color of the display; "Inverted" saves images with a white background color for ink-saving print •...
- Page 188 Once saved, the new BMP file is visible in the file manager: t3dso2000a In step 4, if Save is selected instead of Save As, the system saves the file as the default file name, where the last digit is an integer incrementing from 1. Note: Pressing the Print button on the front panel quickly saves a screenshot to the U Disk.
-
Page 189: System Setting
Fourth, touch Recall and wait for the oscilloscope to finish recalling the setup. 30 System Setting Most of the system settings can be found in the Utility dialog box, such as system status, language, sound, self-calibration, firmware upgrading. 30.1 System Status Operate Utility>System Setting>System Status to check the system status. - Page 190 Click Browse to open the file manager, select the correct upgrade file and click OK: Click Upgrade in the upgrade dialog box to start the upgrade. The oscilloscope first copies the upgrade file (*.ads) to the local memory and parses it. If the parse succeeds, it will show the following dialog.
-
Page 191: Language
30.4 Language The T3DSO2000A supports multiple languages, including: Simplified Chinese, Traditional Chinese, English, French, Japanese, German, Spanish, Russian, Italian and Portuguese. Operate Utility>System Setting>Language, and select the language in the list. 30.5 Screen Saver The screen saver will be activated if the oscilloscope has not been operated for a set period of time. -
Page 192: Vnc Port
30.6.2 VNC Port When accessing more than two Teledyne Test Tools instruments through the web browser, it is necessary to set a different VNC port number for each instrument. Perform Utility>System Setting>I/O Setting>VNC Port to set. Touch the VNC Port area and use the universal knob or the virtual keyboard to set the port number, the range is from 5900 to 5999. -
Page 193: Reference Position Setting
• Use the U-disk to automatically install the option, the license must be stored in the root directory of the U-disk. 30.9 Reference Position Setting The reference position is used to set the strategy of scaling on the horizontal and vertical axes, adapting different requirements. - Page 194 Timebase = 10 ns/div, Horizontal Delay = -20 ns = -2 div Fixed position, timebase is changed to 5 ns/div, the grid number of delay (-2 div) remains fixed, while the horizontal delay changes to -10 ns 1.800.561.8187 information@itm.com www. .com T3DSO2000A Manual.
-
Page 195: Perform Self-Test
Fixed delay, timebase is changed to 5 ns/div, the horizontal delay value remains fixed, while the grid number of delay changes to -4 div 30.10 Perform Self-Test The Self-tests include a screen test, keyboard test and LED test. It is used to check whether the oscilloscope has any electrical or mechanical problems on the user interface such as color distortion, the sensitivity of buttons and knobs. - Page 196 Press the "Single" button to switch to red and green display mode. Observe whether there is any color distortion, bad pixel or scratch on the screen. Press the "Run/Stop" button to exit the screen test mode. Keyboard Test The keyboard test is used to check whether the oscilloscope front panel buttons or knobs are responsive or sensitive.
-
Page 197: Do Self Cal
Press the "Single" button and the first LED on the front panel will light. The corresponding position of the key on the screen will also change color. Press the "Single" button to check the next button. Press the "Single" button consecutively until all the backlights are tested. -
Page 198: Default
30.13 Power online Operate Utility>Power on Line to set. See the chapter "Power on" for details. 30.14 Debug This function is used for the internal development of Teledyne Test Tools engineering and has no user purpose. 31 Remote Control The T3DSO2000A provides a LAN port and a USB Device port which can be used for remote control in multiple ways. -
Page 199: Other Connectivity
Below is the instrument control interface: A. Display and control area of the instrument. The display in this area is a copy of the instrument display. Using the mouse to operate in the area is equivalent to directly operating the touch screen display of the instrument. B. -
Page 200: Troubleshooting
2) Check whether the power switch is really on. 3) Check whether the fuse has blown. If the fuse needs to be changed, please contact Teledyne Test Tools timely and return the instrument to the factory for replacement by the maintenance personnel authorized by Teledyne Test Tools. - Page 201 4) Make sure that the U disk system (USB memory stick) format is FAT32. 5) Restart the instrument and then insert the USB storage device to check it. 6) If the USB storage device still cannot be used normally, please contact Teledyne Test Tools.
