System 5 Digital Audio Mixing System Operation Manual
Select the Input Type from the dropdown menu and click OK. Enter a text description
by typing in the Description field; be sure to identify the event it pertains to.
The properties area displays the settings for the selected input type (see Table 13-1 and
Table 13-2 for settings for each input/output type). Modify the settings by clicking on
the dropdown menu and/or edit display.
13.7

Output

The output area has two sections. The top contains a list of output actions for all events
in the Event List. These actions occur only if the input conditions for the selected event
combined with their logical operator yield True. The lower area shows the properties of
the selected output. Set the outputs using the same methods as the inputs.
13.8

Deleting Events

Delete an event by selecting the event, input, or output and pressing the Delete Selected
Entry button at the bottom-left of the Events screen.

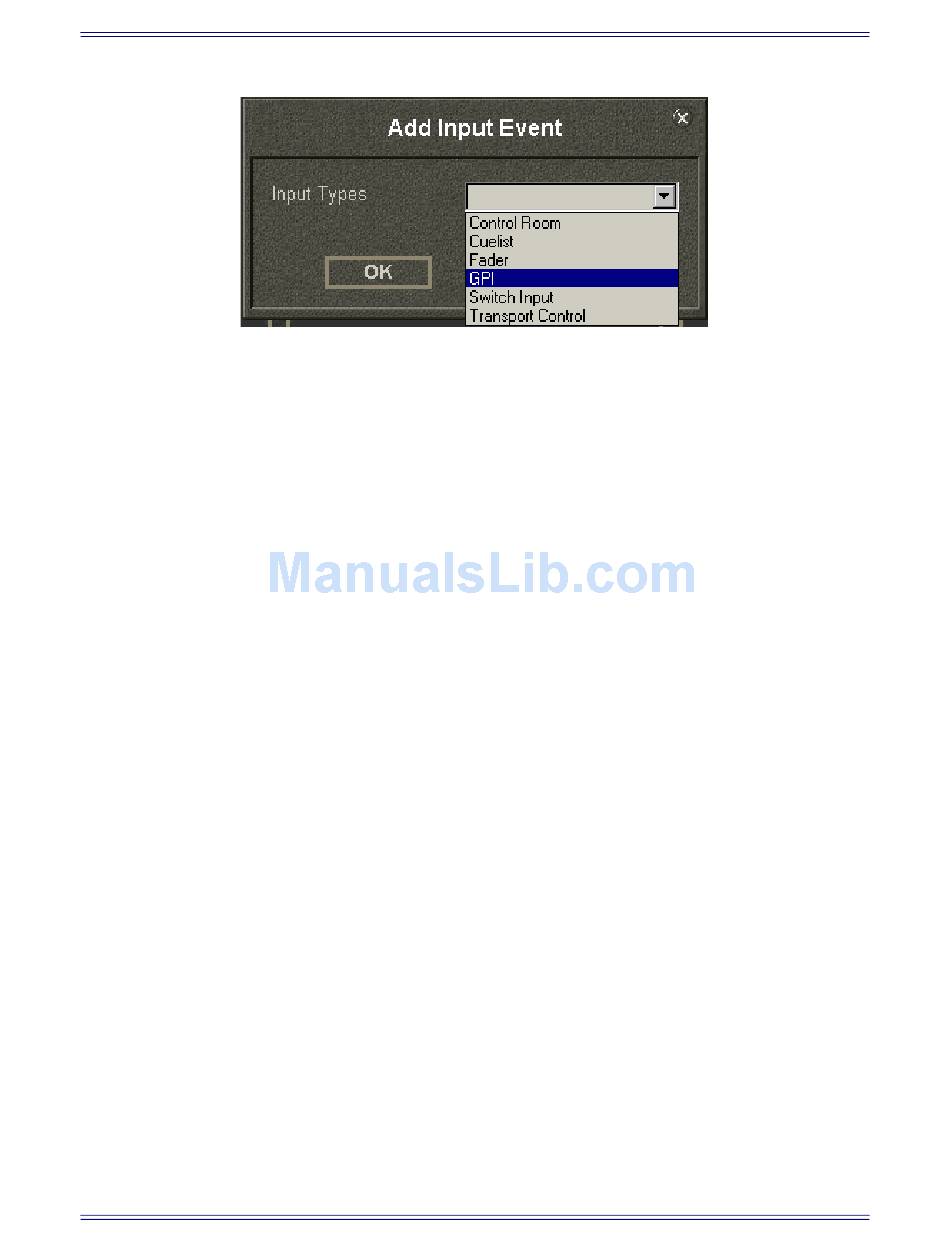

Figure 13-2 Add Input Event Dialog
162
GPI/O Event System
