Channel Processing Functions

System 5 provides flexible and complete programmable functions for each channel:
Input, Dynamics, EQ, Filters, Aux Sends, and Panning.
8.4.1

Inputs

Each channel has an A and B input. See Section 8.3.1 on page 109 to learn about assigning
sources for these inputs. The Inpt knob (bottom) can feed A, B, or A+B to the channel.
These two inputs can be used in many ways but a common application is one Mic and
one Line. Another common use is for monitor inputs: Channel 1A is from the Group 1
Bus output while 1B is from the recorder's track 1 output. The A/B source switch then
acts as a bus/tape switch.
Press the Input function key to display the input controls on the knobset (Figure 8-10).
Press the
the key again to display the Signal Processing In/Out page.
Atrm and Aphs have corresponding controls for the B input; Dly and Inp adjust one
parameter that applies to both inputs.

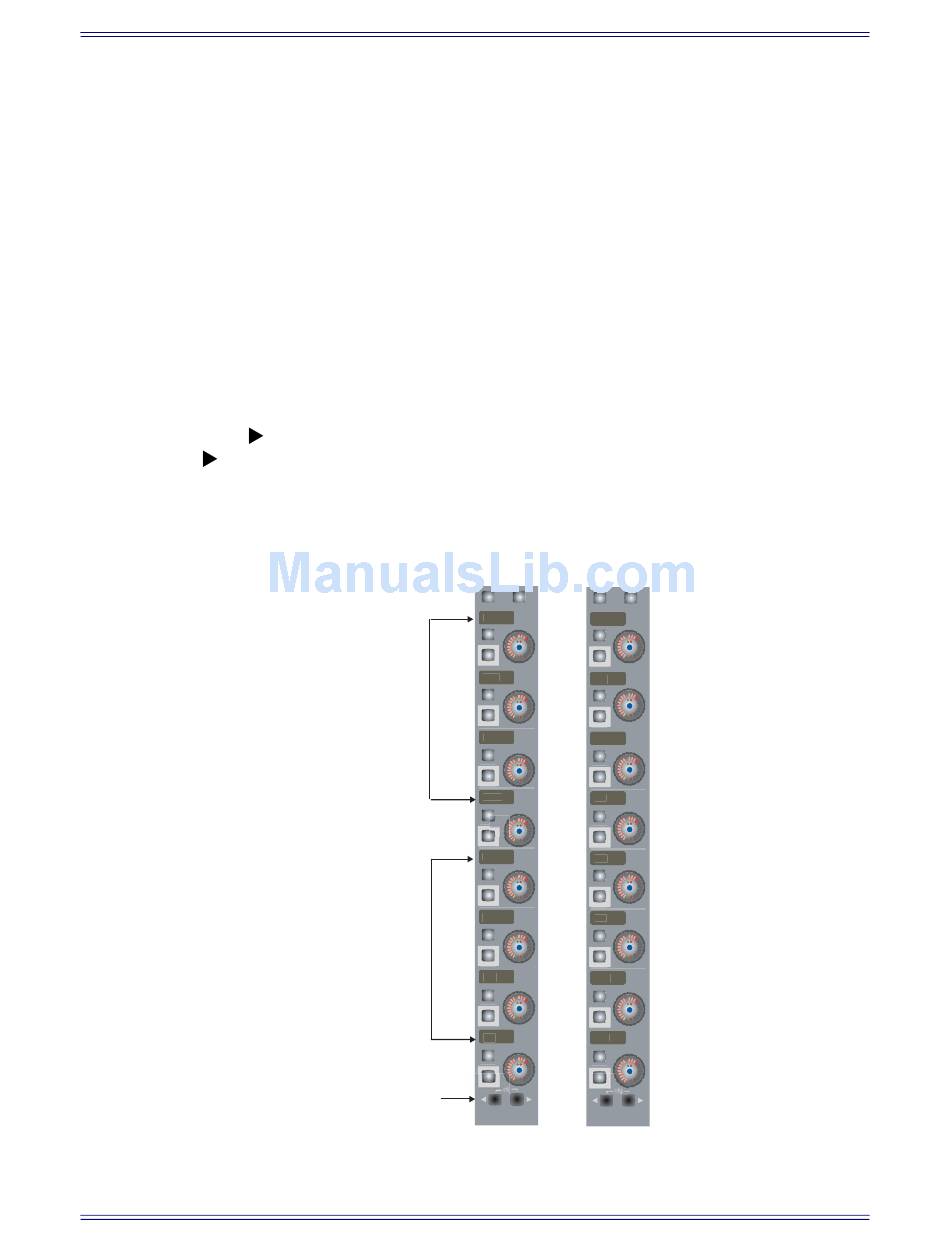

Figure 8-10 Input A (left) and Signal Processing In/Out (right) knobsets
key to display the B input page with the same controls as the A input. Press
Analog Controls
Digital Controls
Page keys display
Input B and Signal Processing
In/Out pages
HiZ
48V
Dly
HPF
Mtr
Gain
Ins
Atrm
EQ
Aphs
Filt
Dly
Dyn
Inp Fad
g
