Mixes Window - Euphonix System 5 Operation Manual

System 5 Digital Audio Mixing System Operation Manual
Open Existing Mix
1. Click the Drives tab to see a list of available Drives.
2. Select the desired Drive and click the Projects tab or double-click the Drive.
The Projects Window appears with a list of Projects on that Drive.
3. Select a Project and click the Titles tab or double-click the Project.
The Titles Window appears with all Titles in that Project.
4. To open the Title with the last Mix used, select the Title and click the Open
button on the right side of the Titles Window.
5. To open a Mix other than the last used, double-click the Title or click the
Mixes tab.
The Mixes Window appears with existing Mixes.
6. Select the desired Mix and click the Open button.

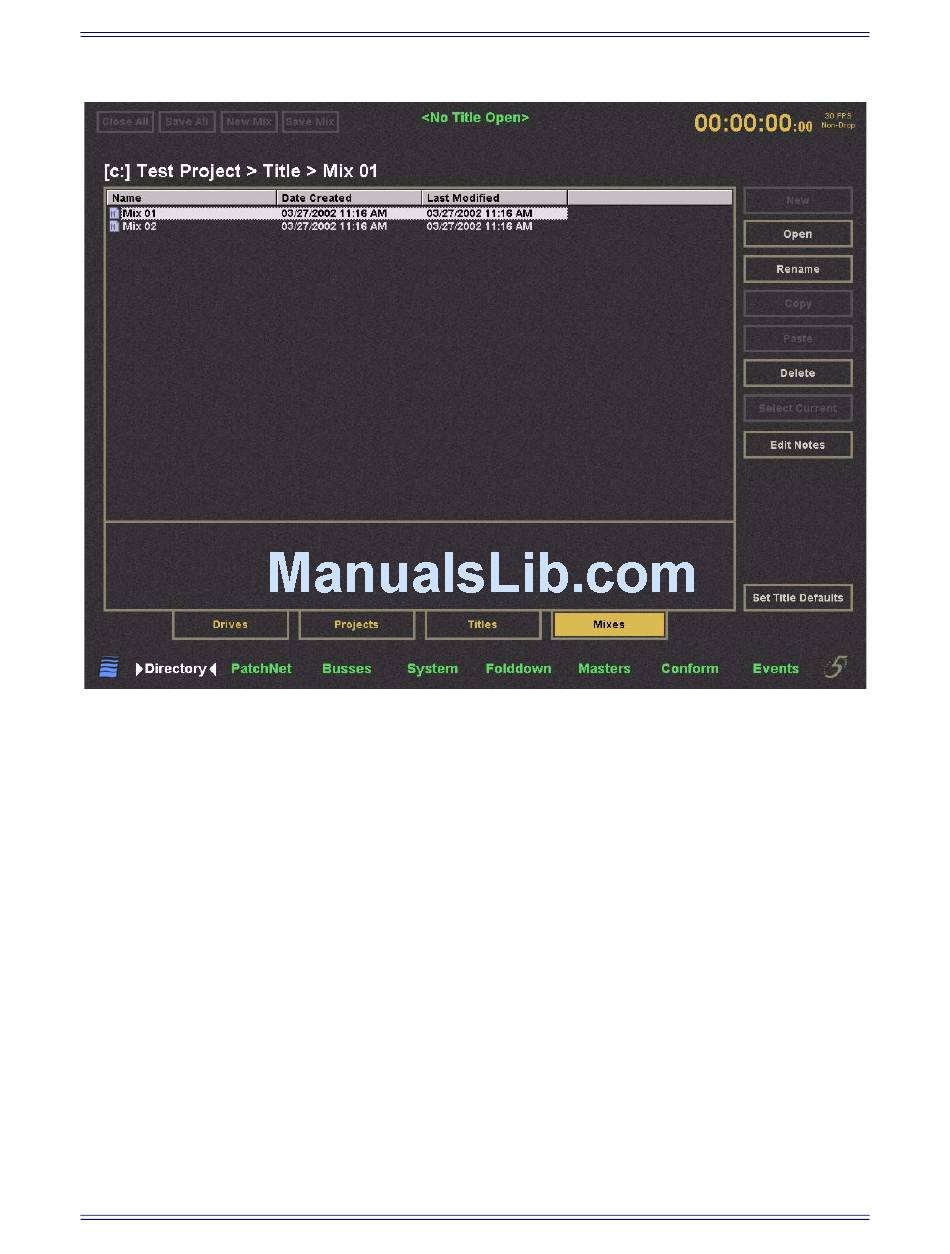

Figure 4-4 Mixes Window
38
eMix Application
