System 5 Digital Audio Mixing System Operation Manual
To select the same meter configuration for multiple Strips, press another Strip's Wave
key after configuring the first Strip. Because each meter's signal is automatically incre-
mented by one, set the lowest numbered Strip first and then set additional Strips con-
secutively. For the dual meter example above, pressing Strip 2's Wave key assigns
Group Bus 2 to the upper meter and Strip 2's fader to the bottom meter. If Strip 3's
Wave key was pressed instead of Strip 2, Group Bus 2 would still be assigned to Strip
3's upper meter.
5.4.2

Master Section Meters

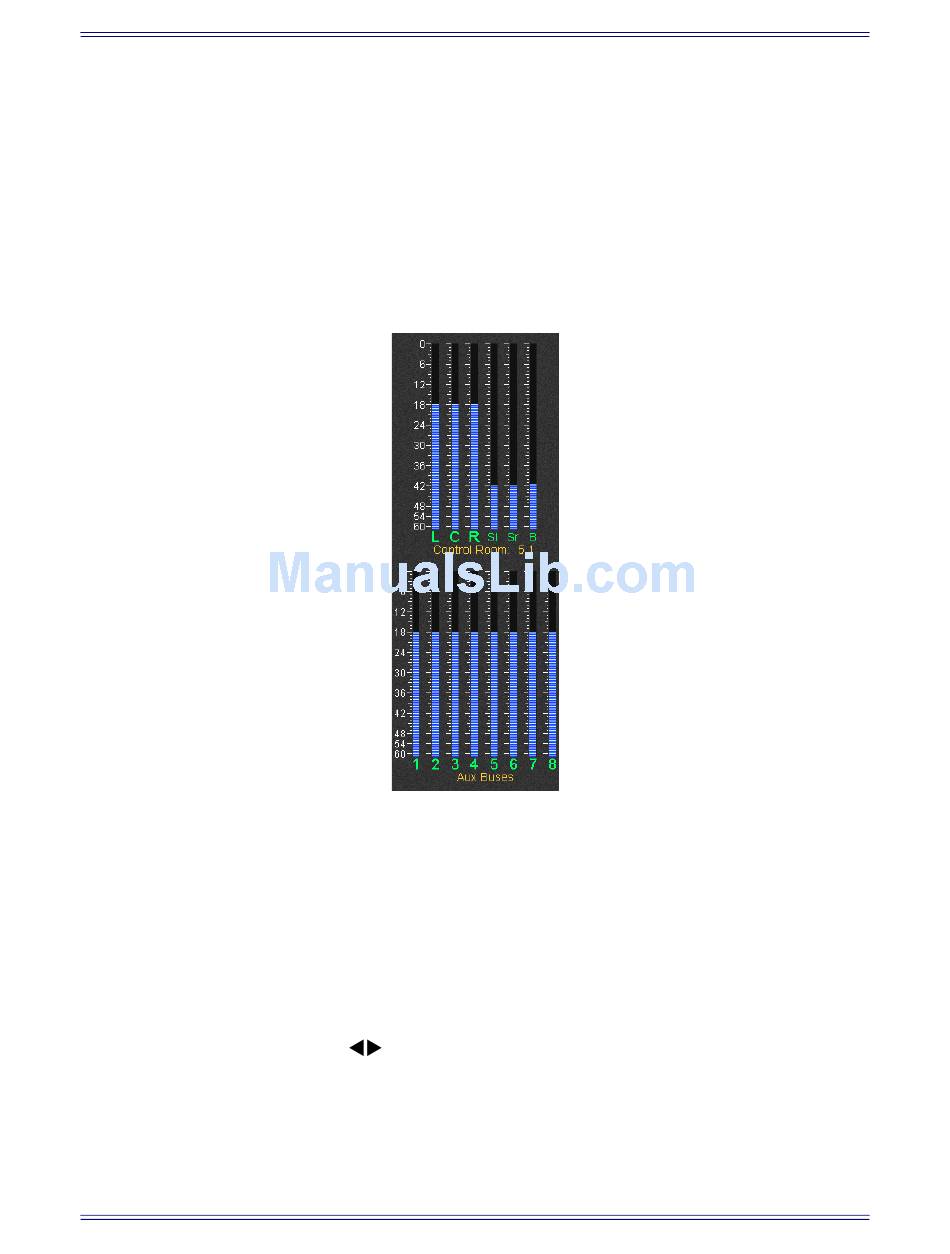

Figure 5-12 Master section meters showing 5.1-channel CR and Aux Busses 1–8
The TFT screen above the center section shows two meters, one above another. The up-
per meter automatically shows the selected monitor output format. For example, if the
Control Room monitors Mix Bus A and it is a 5.1-channel format, the meter automati-
cally displays 5.1 channels.
The lower meter automatically displays whatever is currently assigned to the Bus Mas-
ter Strip: Aux, Mix, or Group Masters, Mon A, B, C, D, or Solo Master. The meter dis-
plays the eight meters corresponding to the Bus Master knobset. If there are more than
eight masters, use the
if Group Bus Masters 9–16 are on the knobset, the meters display these automatically.
Press the Mon A–D Source or the Solo Ctrl switches to meter these signals on the
lower meter.
keys on the Bus Master Strip to change pages. For example,
80
CM401 Master Section
