Link Key Not Lit - Euphonix System 5 Operation Manual

System 5 Digital Audio Mixing System Operation Manual
F X 1
Solo
ON
The same functionality applies when the Link key is not lit except the individual busses
are accessed.
The Link operation also still applies and allows the user to dictate which busses within
the section would be affected by the master. Here the C and the R busses are lit to indicate
they are linked to the master strip.
Press the Exp/Sel key on the master strip to return the panel to the top level again.
< Page > Keys: These keys switch the display between two pages of eight-bus sections.
Sum and Solo Keys: The Solo key lights when something is in solo; pressing the lit
Solo key clears the current solo. The Sum key is reserved for future use.
Ext/Rec Key: When the Ext/Rec key is lit, the master record paddle can be triggered
remotely from a GPI.
k1, k2 Keys: These keys are used to toggle the Ext/Rec between record and preview,
k1 record (master record paddle), and k2 preview (master PEC/DIR paddle).
Wave Key: Future versions will use this key for shifted functions.
L C R
Solo Solo Solo
ON ON ON

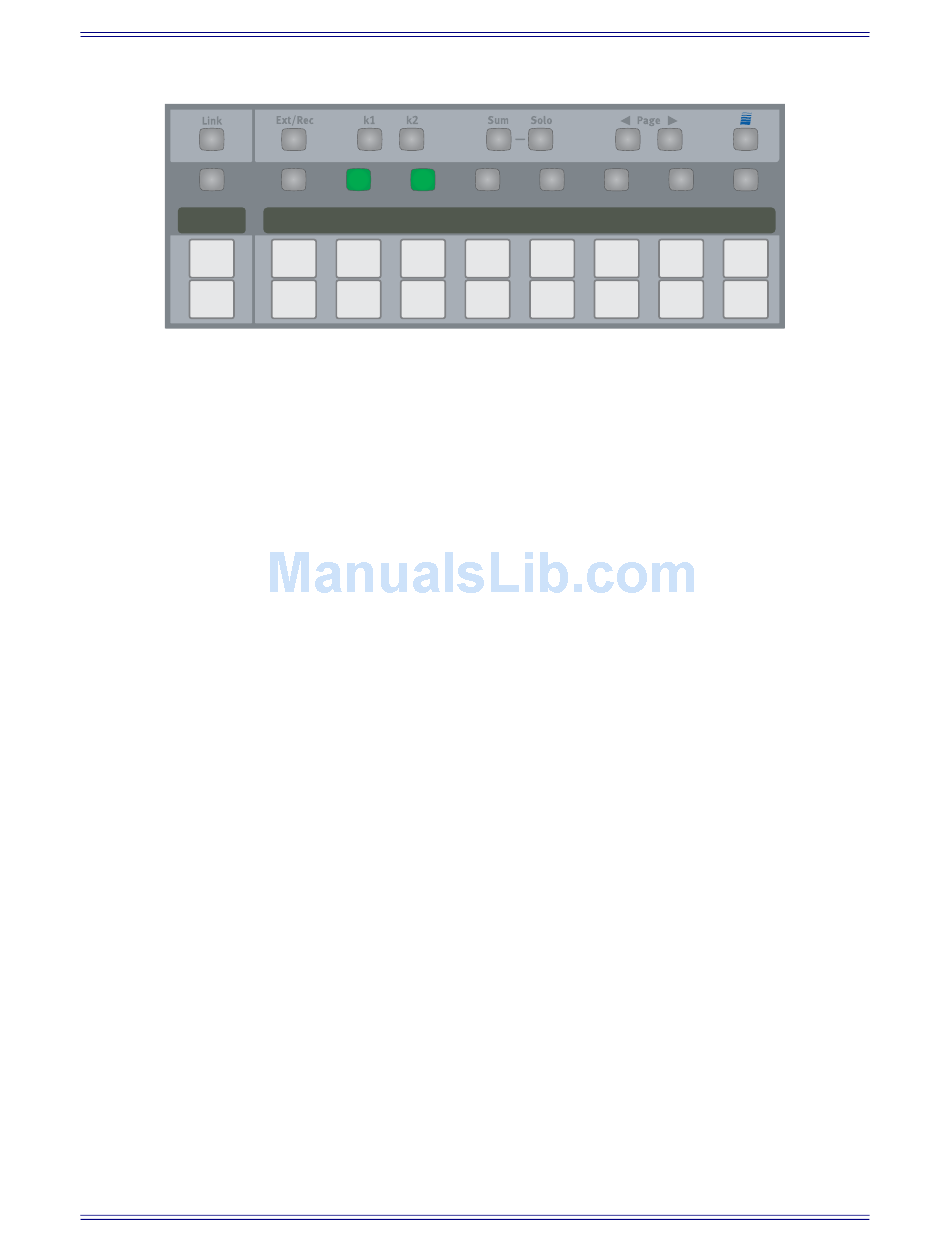

Figure 15-3 Link Key Not Lit
