System 5 Digital Audio Mixing System Operation Manual
15.2.2

The Monitor Utility Section

Main or Alt monitor
selection and monitor
Cut and Dim.
(same a CM401)
Monitor Insert - toggles
the main monitor bus
inserts in and out.
Spkr Asgn - allows user to
reassign a bus to a different
speaker. By default the system
automatically assigns the busses
to the correct speaker based on
the format of the bus.
Locks the Panel so no parameters
can be changed
Solo Control-Selecting Solo
Control brings up selection of
Summing, Intercanceling, or
Momentary for Stems. Also alows
Solo Safe to be set by selecting
the Exp/Sel switch.
Solo - allows user to
solo externals and monitor
sources.
Most of these functions already exist on the current CM401 (see Section 5.1 Monitor-
ing). The new features are Spkr Asgn, (Speaker Re-Assign) and Panel Lock.
Main Alt 1
D i a
Spkrs Spkrs
Monitor Alt 2
Insert Spkrs
M u s
F X
Dim Cut
Rec's
Ext's
Panel Spkr
Lock Asgn
Solo Fold
Ctrl Down
Scroll keys- scrolls the displays to allow access to
more than 8 bus-sections or externals.

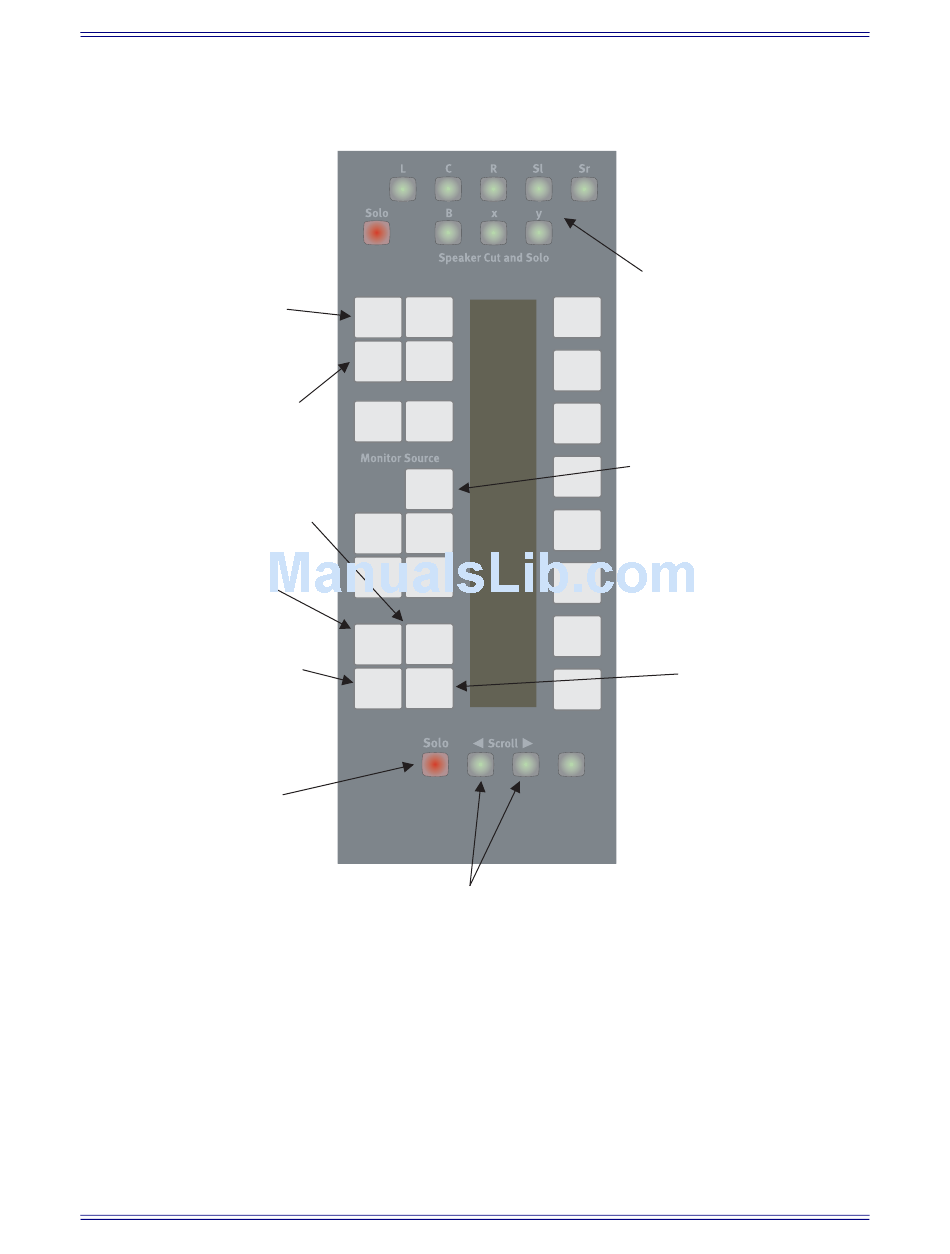

Figure 15-4 Monitor Utility Section
213
CM403 Film/Post Module
Speaker Cut and Solo.
Direct access to the speaker
On keys. User can also solo
a speaker by selecting the
Solo key first. Turning solo
off returns the speakers to
their previous state.
Monitor Source - Rec's brings up
the Bus Sections (Recorders) on
to the displays to the right where the
user can select them. This is the
same as the On keys on the
PEC/DIR panel.
Ext's will display the Externals
The FoldDown switch brings up
the monitor modes on the
displays to the right,
(i.e., mono, stereo, 5.1 etc.)
Talk
