3. SIGNALS AND WIRING

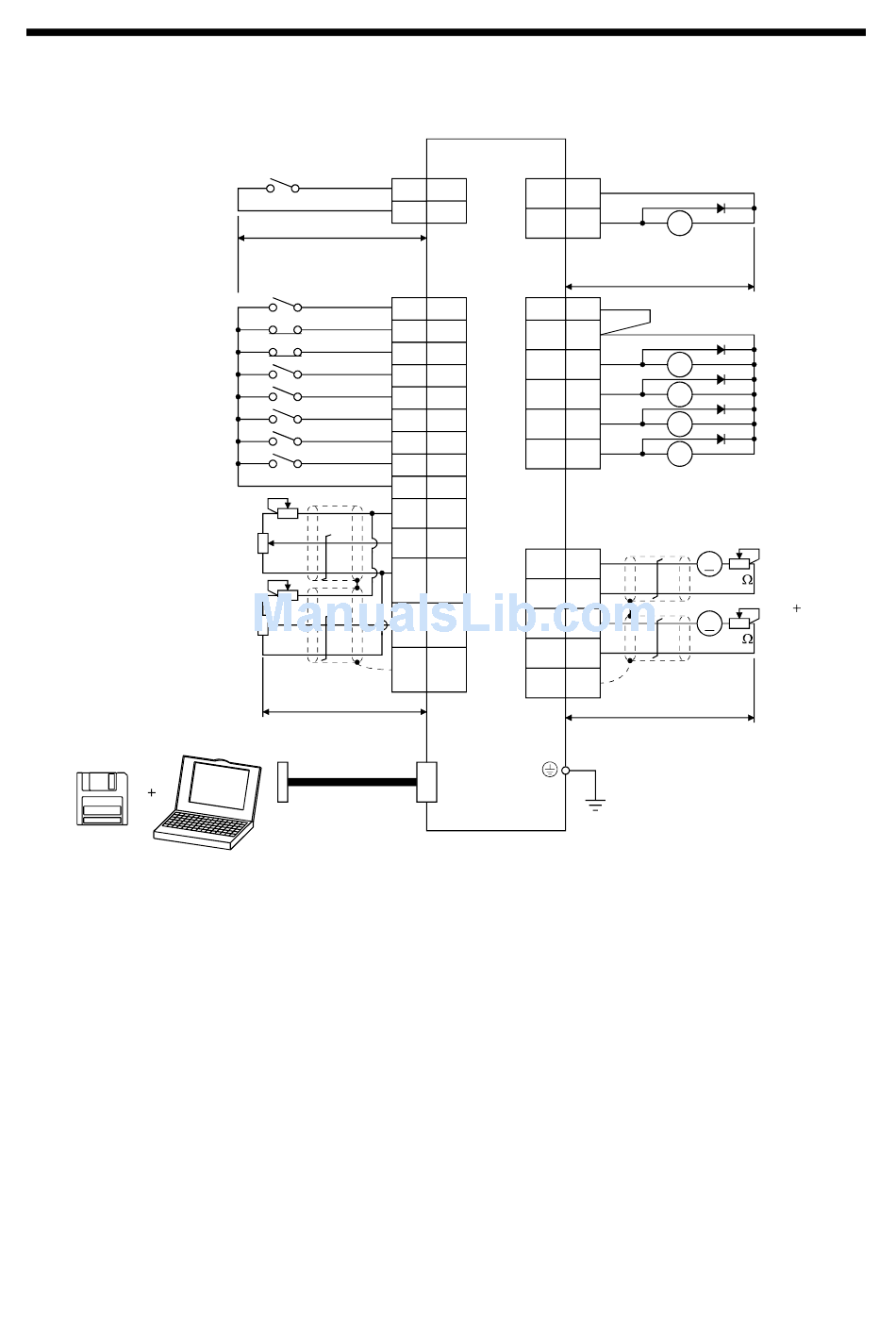

3.1 Standard connection example

Proximity dog
Servo-on
Forward rotation stroke end
(Note 5)
Reverse rotation stroke end
Automatic/manual selection
Point table No. selection 1
Point table No. selection 2
Forward rotation start
Reverse rotation start
Upper limit setting
(Note 8) Override
Upper limit setting
(Note 9) Analog torque limit
(Note 11)
Personal
MR Configurator
computer
(Servo Configuration
software)
Note 1. To prevent an electric shock, always connect the protective earth (PE) terminal of the servo amplifier to the protective earth
(PE) of the control box.
2. Connect the diode in the correct direction. If it is connected reversely, the servo amplifier will be faulty and will not output
signals, disabling the forced stop and other protective circuits.
3. CN1A, CN1B, CN2 and CN3 have the same shape. Wrong connection of the connectors will lead to a fault.
4. The sum of currents that flow in the external relays should be 80mA max. If it exceeds 80mA, supply interface power from
external.
5. When starting operation, always connect the forward/reverse rotation stroke end (LSN/LSP) with SG. (Normally closed
contacts)
6. Trouble (ALM) is connected with COM in normal alarm-free condition.
7. The pins with the same signal name are connected in the servo amplifier.
8. When using override (VC), make the override selection (OVR) device available.
9. When using analog torque limit (TLA), make the external torque limit selection (TL) devices available.
10. When connecting the personal computer together with monitor outputs 1, 2, use the maintenance junction card (MR-
J2CN3TM). (Refer to section 14.1.6).
11. Use MRZJW3-SETUP 151E.
12. When using the internal power supply (VDD), always connect VDD-COM. Do not connect them when supplying external
power. Refer to section 3.6.2.
DOG
SG
10m (32.79ft.) or less
SON
LSP
LSN
MD0
DI0
DI1
ST1
ST2
SG
P15R
VC
LG
TLA
SD
2m (6.56ft.) or less
(Note 10)
Communication cable
Servo amplifier
(Note 3, 7) (Note 3, 7)
CN1A CN1A
8
9
COM
10
18 ZP
(Note 3, 7) (Note 3, 7)
10m (32.81ft.) or less
CN1B CN1B
3
15 VDD
16
COM
13
17
CPO
4
7
6
MEND
5
14
ALM
18
8
RD
19
9
10
11
(Note 3, 7)
CN3
2
4
MO1
1
3 LG
14 MO2
12
13 LG
Plate
Plate SD
CN3
(Note 1)
3 - 2
(Note 4) Home position
return completion
RA5
(Note 12)
(Note 2, 4)
Rough match
RA1
Movement finish
RA2
RA3 Trouble (Note 6)
RA4
Ready
A
(Note 10)
10k
Monitor output
Max. 1mA
A
meter
10k
Zero center
2m (6.56ft.) or less
