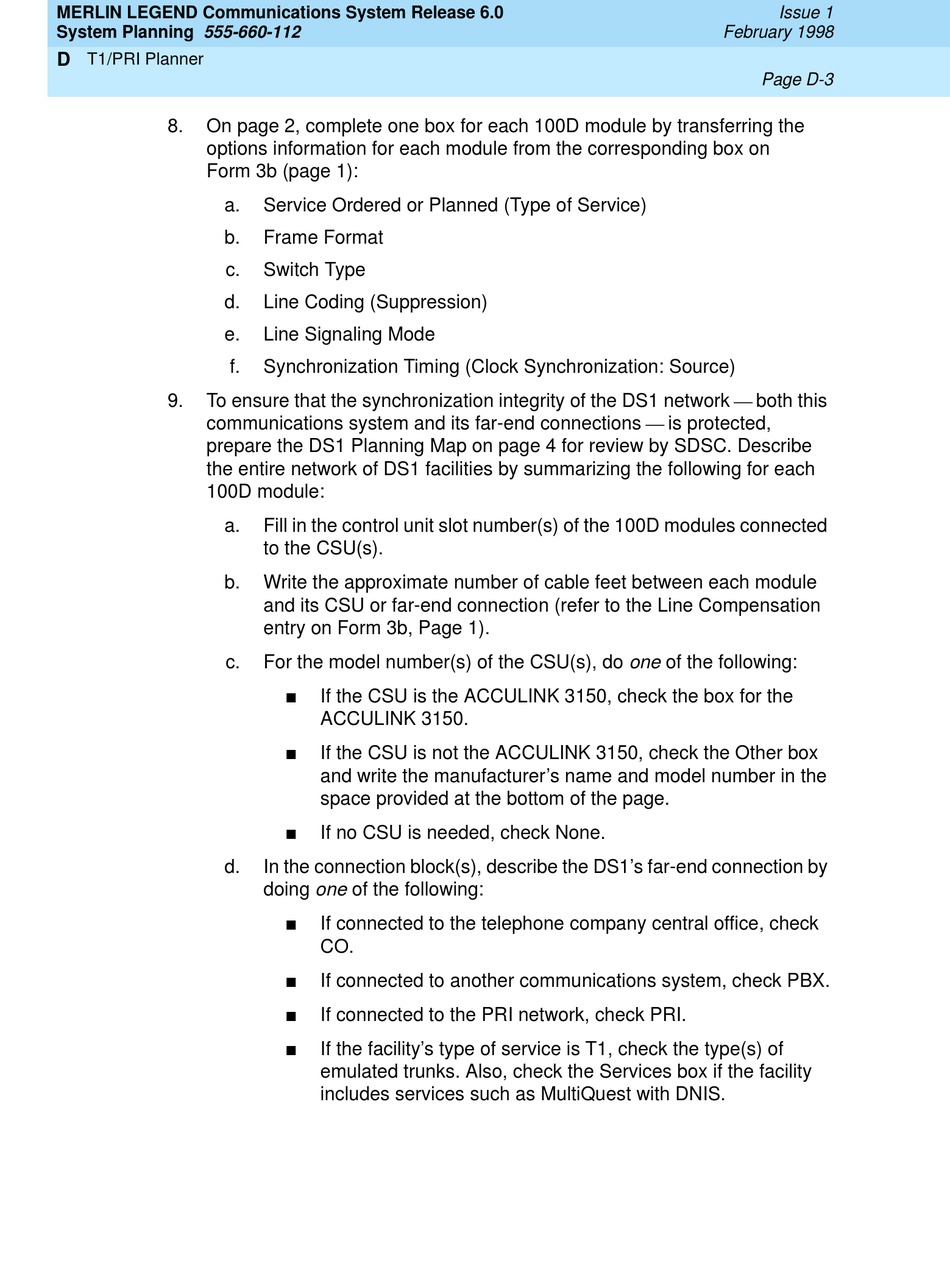

Lucent Technologies MERLIN LEGEND Release 6.0 System Planning Manual page 318

MERLIN LEGEND Communications System Release 6.0
System Planning 555-660-112
D T1/PRI Planner
8. On page 2, complete one box for each 100D module by transferring the
options information for each module from the corresponding box on
Form 3b (page 1):
a.
b.
c.
d.
e.
f.
9. To ensure that the synchronization integrity of the DS1 network
communications system and its far-end connections
prepare the DS1 Planning Map on page 4 for review by SDSC. Describe
the entire network of DS1 facilities by summarizing the following for each
100D module:
a.
b.
c.
d.
Service Ordered or Planned (Type of Service)
Frame Format
Switch Type
Line Coding (Suppression)
Line Signaling Mode
Synchronization Timing (Clock Synchronization: Source)
Fill in the control unit slot number(s) of the 100D modules connected
to the CSU(s).
Write the approximate number of cable feet between each module
and its CSU or far-end connection (refer to the Line Compensation
entry on Form 3b, Page 1).
For the model number(s) of the CSU(s), do one of the following:
If the CSU is the ACCULINK 3150, check the box for the
ACCULINK 3150.
If the CSU is not the ACCULINK 3150, check the Other box
and write the manufacturer's name and model number in the
space provided at the bottom of the page.
If no CSU is needed, check None.
In the connection block(s), describe the DS1's far-end connection by
doing one of the following:
If connected to the telephone company central office, check
CO.
If connected to another communications system, check PBX.
If connected to the PRI network, check PRI.
If the facility's type of service is T1, check the type(s) of
emulated trunks. Also, check the Services box if the facility
includes services such as MultiQuest with DNIS.
Issue 1
February 1998
Page D-3
both this
is protected,
