14. Install the PCI riser assembly. For instructions, see
Assembly" on page

Replacing a System Fan

Replacing a Redundant System Fan

Note: The fans that are integrated into the power supply cannot be replaced separately. If one of
the fans in the power supply fails, the power supply must be replaced.
The system fans at the front of the server system can be individually replaced if one of
them fails.
To replace a system fan, follow these steps:
1. Grasp the failed fan and lift straight up to remove it from the module (see
Figure
2. Position the replacement fan so the connector on the fan is at the right and pointing
down.
132
51.
126).
LX

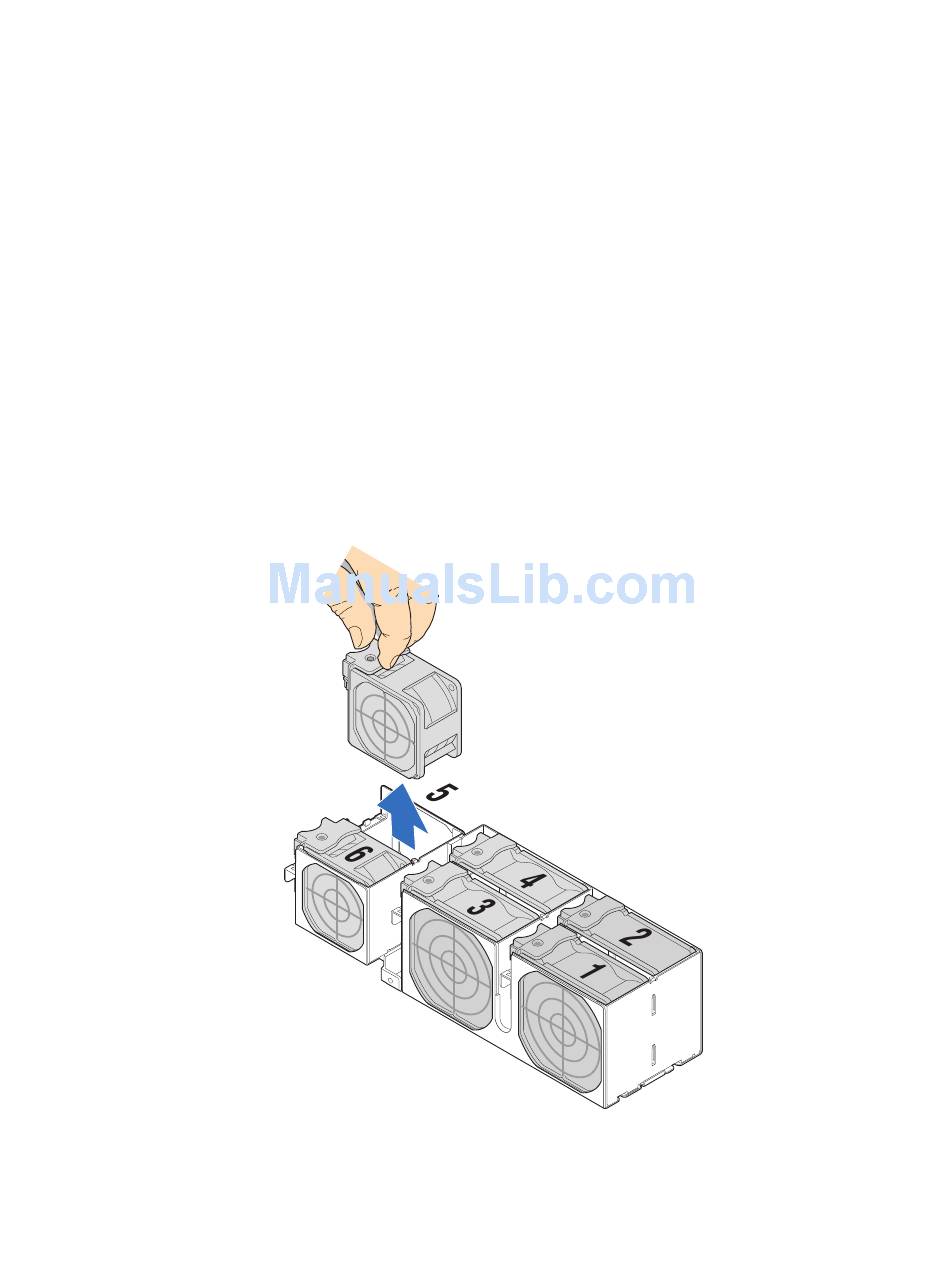

Figure 126. Removing a Fan from the Redundant Fan Module

"Installing the PCI Riser
®
Intel Server System SR2600UR/SR2625UR Service Guide
