5. Make sure the interposer board fits onto alignment pin on device tray (see letter
"A" in
6. Insert the optical device tray assembly into the server system (see letter "A" in
Figure
7. Make sure that the back end of the interposer board plugs into the matching socket
on the backplane (see letter "B" in
8. Verify that the blue release lever on the tray locks into place.
9. (Optional) For installing the optional USB floppy drive, note the location of the
backplane USB connector (see letter "C" in
documentation that came with the device.
®
Intel Server System SR2600UR/SR2625UR Service Guide
Figure 65) and attach to the tray with screw (see letter "B" in

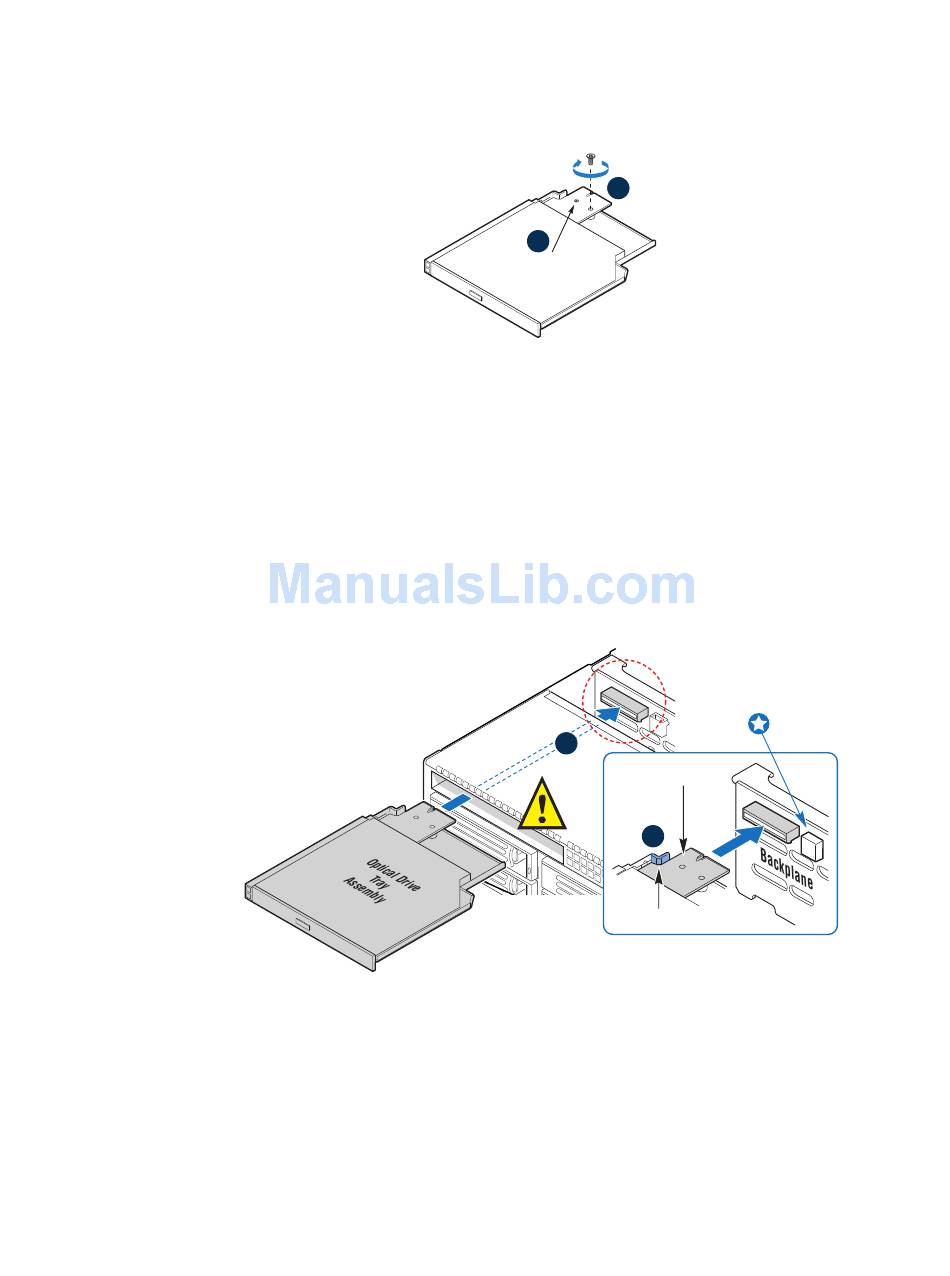

Figure 65. Securing the Interposer Board to the Device Tray

66).

Figure 66. Installing an Optical Drive Assembly into the Server System

B
A
Tray alignment pin
fits into this hole.
AF002964
Figure 66).
Figure 66) and refer to the
A
Interposer Board
B
Release Lever
Figure 65).
USB
Connector
AF002965
79
