Figure 75. Installing Tape Drive Assembly Into The Server System - Intel SR2625UR - Server System - 0 MB RAM Service Manual

4. Connect the 4-pin tape power cable to the tape drive.
5. Connect the other end of the power cable to the power connector on the back side of
the backplane.
6. SATA Tape Drive Mounting Kit comes with a power cable and two SATA
cables.Cabling for the tape drive varies depending on which midplane you have in
your system.
Depending on the midplane installed in your system, do one of the following:
•
If you have an active midplane in your system, do the following:
a. Install one end of the short SATA cable to the SATA connector on the backplane.
b. Install the other end of the short SATA cable to the SATA connector on the
•
If you have a passive midplane in your system, do the following:
a. Connect the one end of the long SATA cable to the SAS/SATA connector on the
b. Install the other end of the long SATA cable to the tape drive and route the cable
86

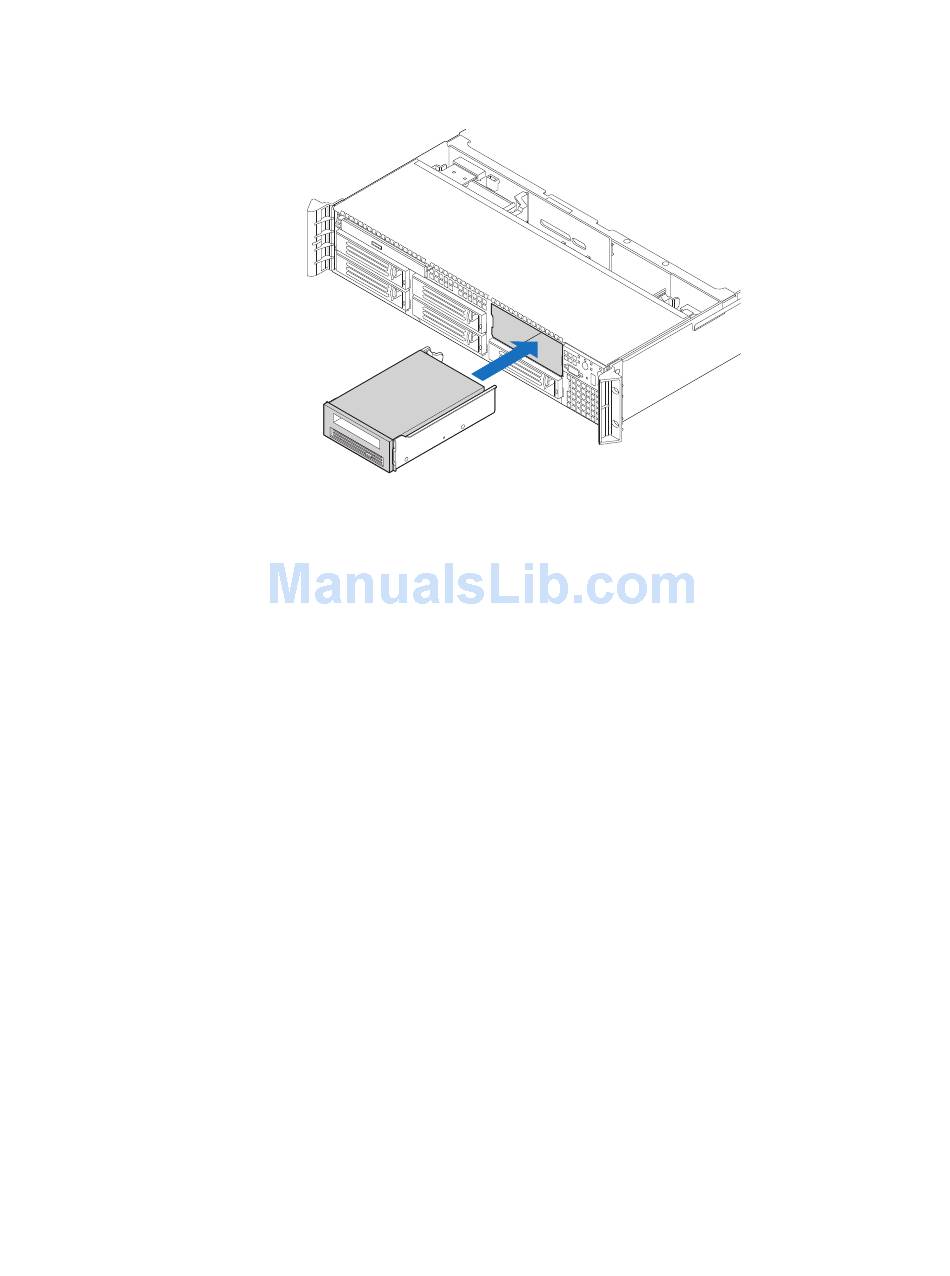

Figure 75. Installing Tape Drive Assembly into the Server System

tape drive.
server board or SAS/SATA add-in PCI card.
through the air baffle.
®
Intel Server System SR2600UR/SR2625UR Service Guide
AF000033
