Installing and Removing a Hot-swap Hard Drive (Intel
Server System SR2600UR only)
In the Intel
drives.
Cautions: If you install less than six drives or devices, empty drive bays must be occupied by
carriers with baffles to maintain proper system cooling.
To avoid possible damage to your server system, do not use older style drive carriers.
Note: The server system does not support all hard drives. For a web link to a list of supported
hard drives, see

Installing a SAS or SATA Hot-swap Hard Disk Drive

To install a SAS or SATA hot-swap hard disk drive in Intel
follow these steps:
1. Press the green latch towards the black lever and pull out on the lever to release the
hard drive carrier (see letter "A" in
2. Slide the carrier from the server system (see letter "B" in
®
Intel Server System SR2600UR/SR2625UR Service Guide

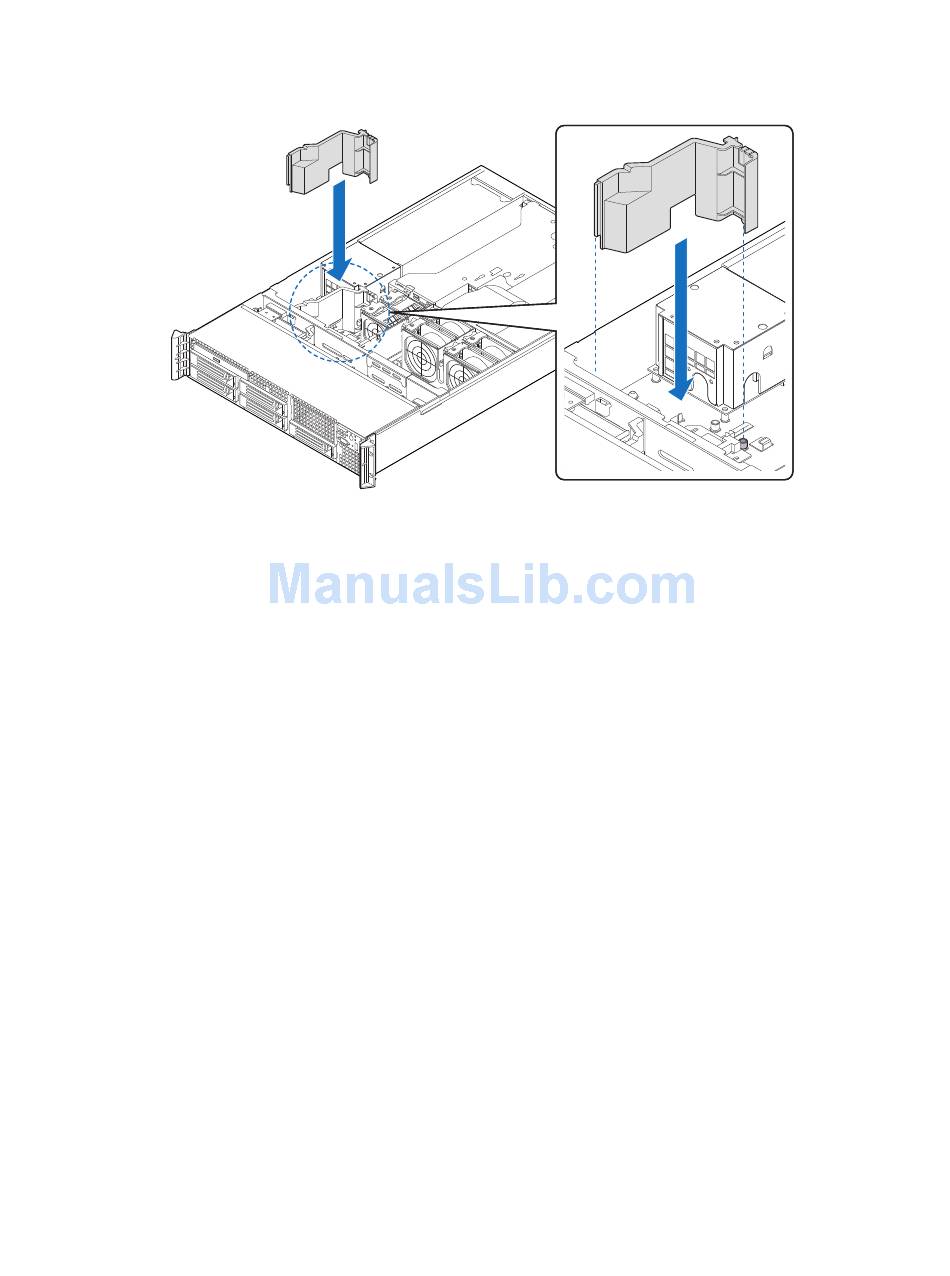

Figure 54. Installing the Large Air Baffle

®
Server System SR2600UR, you can install up to six hot-swap SAS or SATA
"Additional Information and Software" on page
®
Server System SR2600UR,
Figure 55).
Figure
AF002961
®
4.
55).
71
