Filling Empty Server System Bays (Intel ® Server System Sr2600Ur Only); Figure 85. Installing Power And Data Cables - Intel SR2625UR - Server System - 0 MB RAM Service Manual

8. Connect the other end of the data cables to the two hard disk drives (see letter "D"
in
D
Filling Empty Server System Bays (Intel
System SR2600UR only)
In the Intel
or empty drive carrier into an empty drive bay. To access the drive bays, remove the front
bezel if it is installed. For instructions, see
With the bezel removed, install the appropriate filler panel(s), drive blank, or empty hard
drive bay(s) as follows:
•
If you do not have an optical drive installed in the slimline bay, install the slimline
filler panel (see letter "A" in
•
If you have a sixth hard drive installed in the flex bay (that is, empty slot above drive
bay 4), install the sixth hard drive filler panel above the sixth drive bay (see letter
"B" in
•
If you do not have either a sixth hard drive, tape drive, or 2.5-inch fixed hard drives
installed in the flex bay, install the empty drive tray into the flex bay (that is, empty
slot above drive bay 4) (see letter "C" in
94
Figure 85).
B

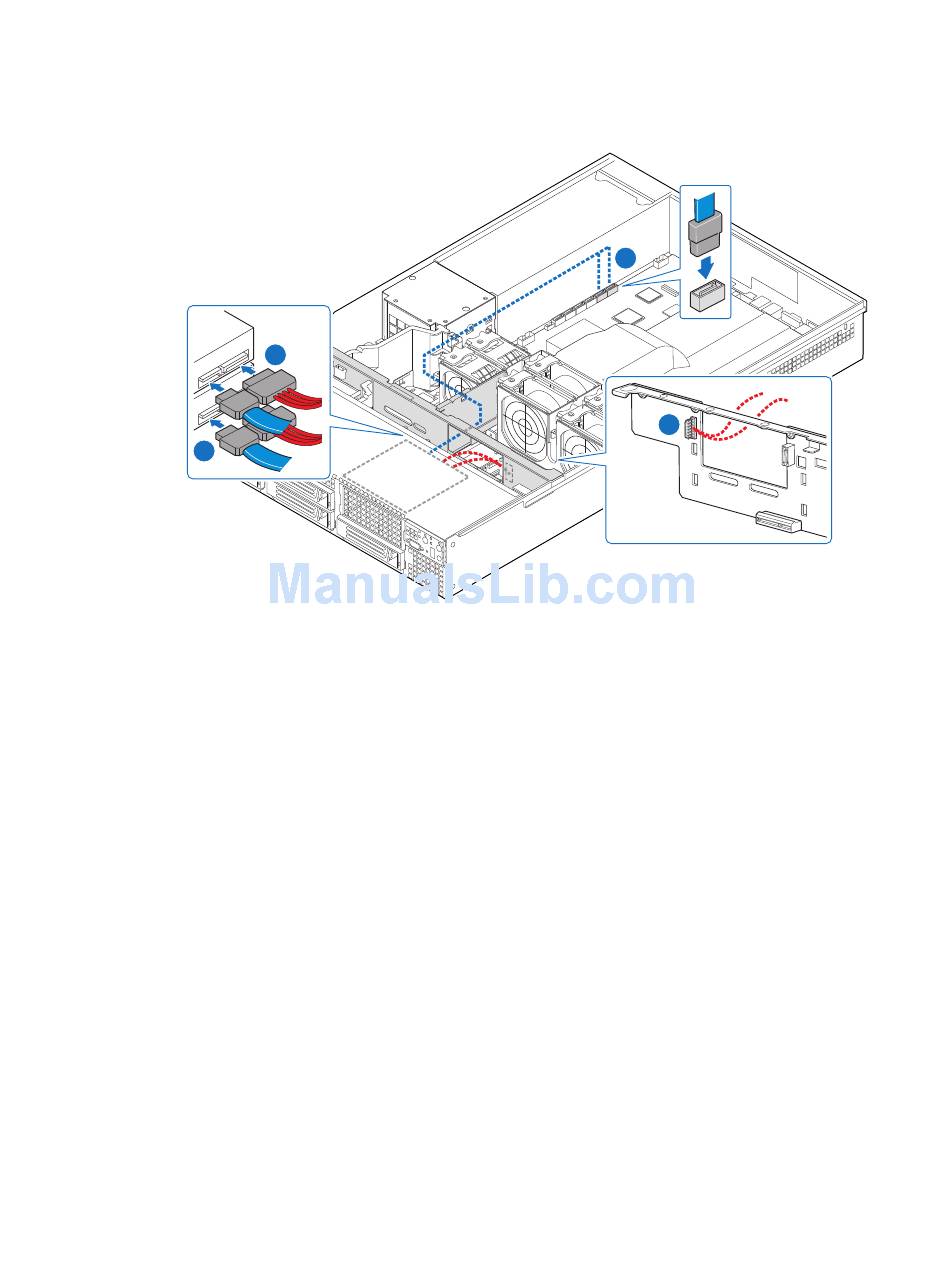

Figure 85. Installing Power and Data Cables

®
Server System SR2600UR, you must install either a filler panel, drive blank,
Figure 86).
C
"Removing the Front Bezel" on page
Figure 86).
Figure 86).
®
Intel Server System SR2600UR/SR2625UR Service Guide
A
AF003038
®
Server
46.
