Removing a Slimline Optical Drive or Internal USB Floppy

To remove a slimline optical drive or internal USB floppy from Intel
SR2600UR, follow these steps:
1. If removing an internal USB floppy, unplug it from the backplane.
2. Press the blue release lever (see letter "A" in
release the optical drive tray assembly and slide the assembly out of the server
system as shown in

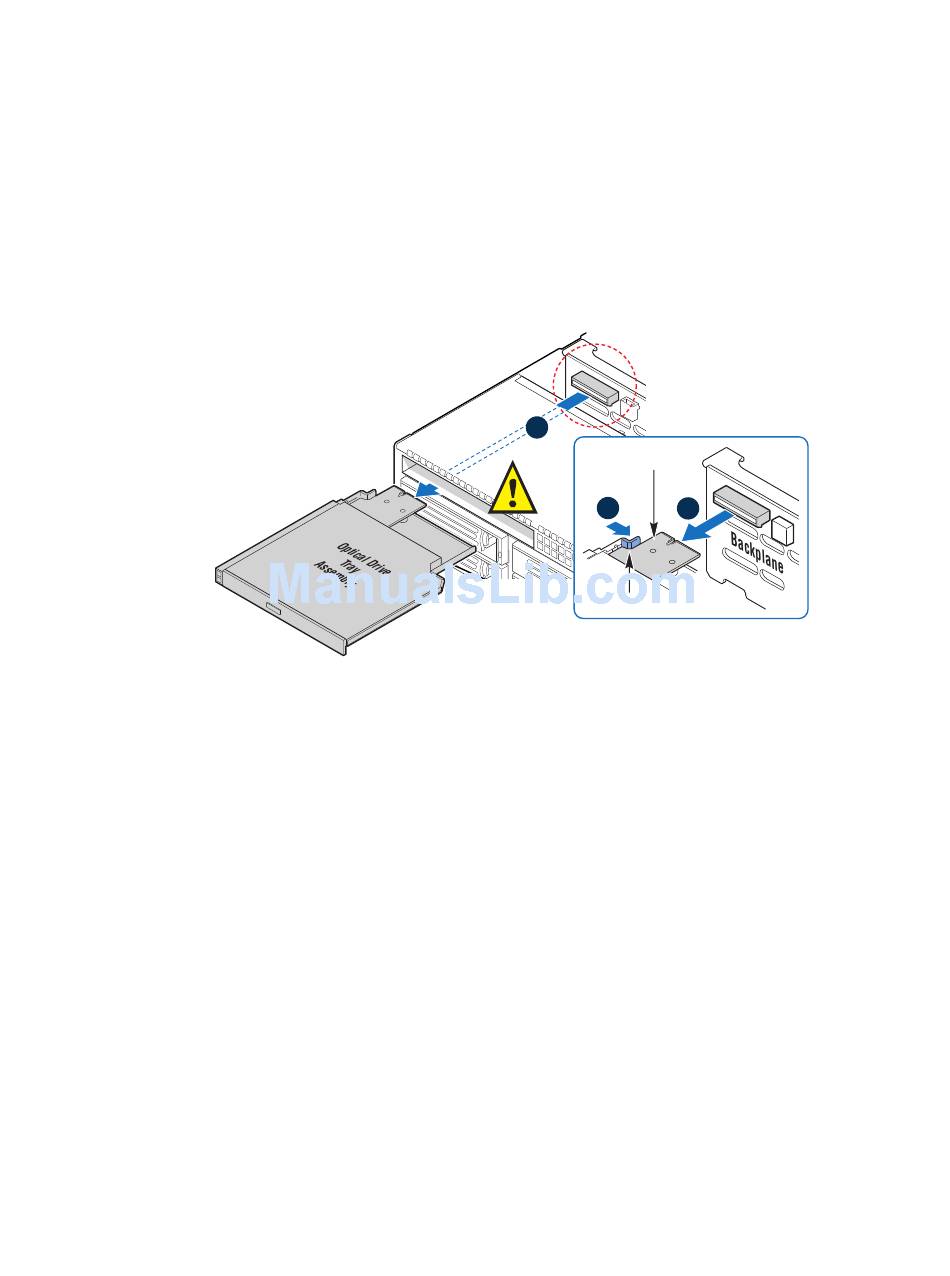

Figure 67. Removing the Optical Drive Assembly from the Server System

3. Press downward on the side of the tray (see letter "A" in
the drive from the two metal tabs on the opposite side of the tray (see letter "B" in
Figure
4. Lift up on the optical drive (see letter "C" in
80
Figure 67.
68).
Intel
Figure 67) and push it forward to
C
Interposer Board
A
Release Lever
Figure 68) to remove it from the tray.
®
Server System SR2600UR/SR2625UR Service Guide
®
Server System
B
AF002965
Figure 68) and disengage
