Installing The Fan Baffle; Figure 52. Installing The Fan Baffle - Intel SR2625UR - Server System - 0 MB RAM Service Manual

Installing the Fan Baffle

To install the fan baffle, follows these steps:
1. Lower the baffle into the server system and position the baffle into the slot between
fans 3 and 5 (to the left of the bridge board) and the backplane (see letter "A" in
Figure
Orient the baffle such that the foam edges of the baffle contact the backplane and
the bottom of the chassis.
2. Slide the baffle in the direction shown (see letter "B" in
3. Install the baffle making sure the hook on the front of the baffle is inserted into the
corresponding hole in the backplane board (see letter "C" in
is pointing to the hole in the backplane board).
®
Intel Server System SR2600UR/SR2625UR Service Guide
52).
C

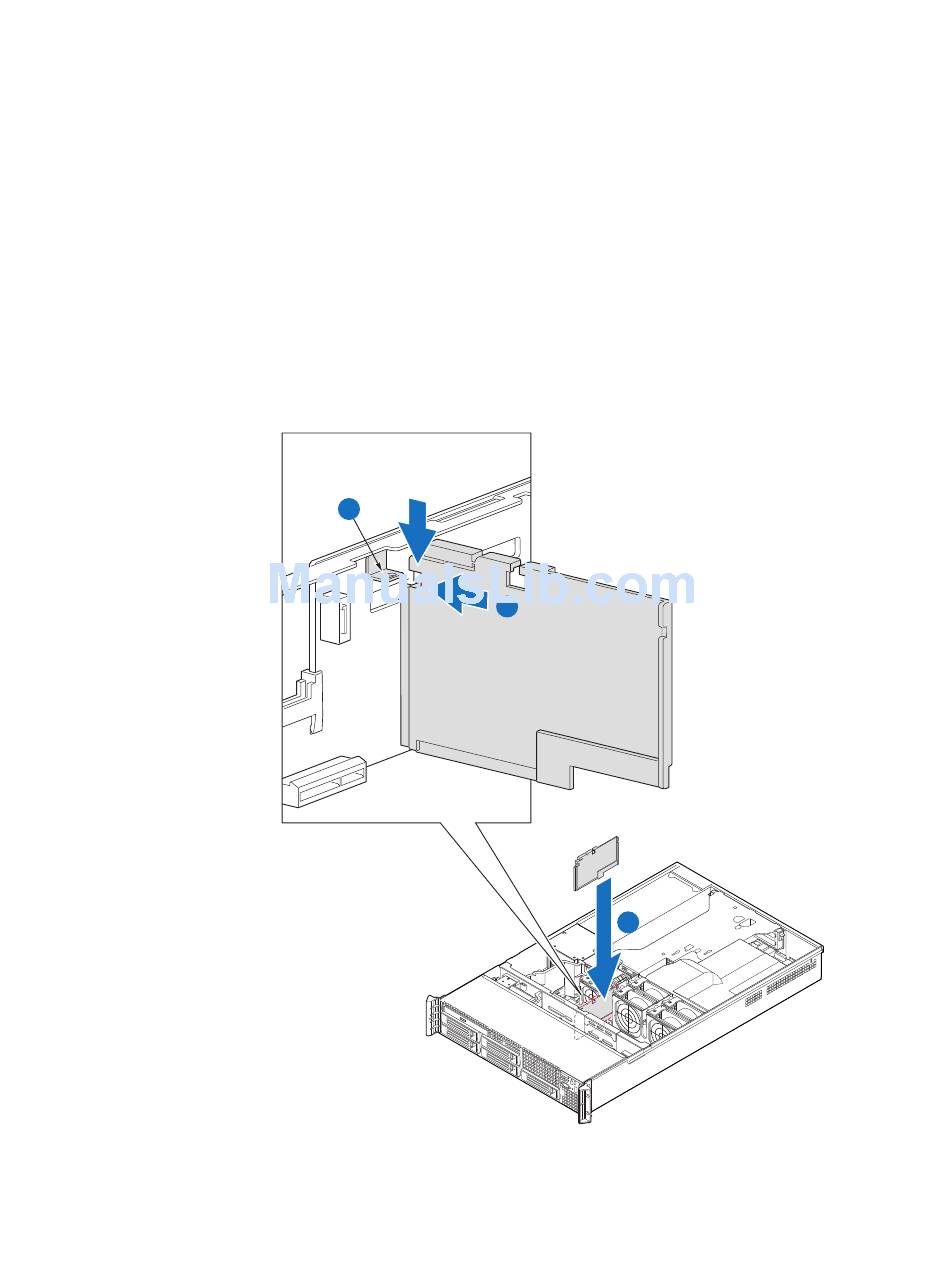

Figure 52. Installing the Fan Baffle

B
A
Figure 52).
Figure 52 - the arrow
AF003022
