Active Midplane

The following diagram show the location for each connector found on the active
midplane.
A. Optional RAID Cache Battery Backup
Connector
B. Midplane Power Connector
C. Mini-DIMM Connector
D. Fan 6 Power Connector
E. Fan 5 Power Connector
F. Bridge Board Connector
Intel® Server System SR2600UR/SR2625UR Service Guide
C
B
D
E
A
L

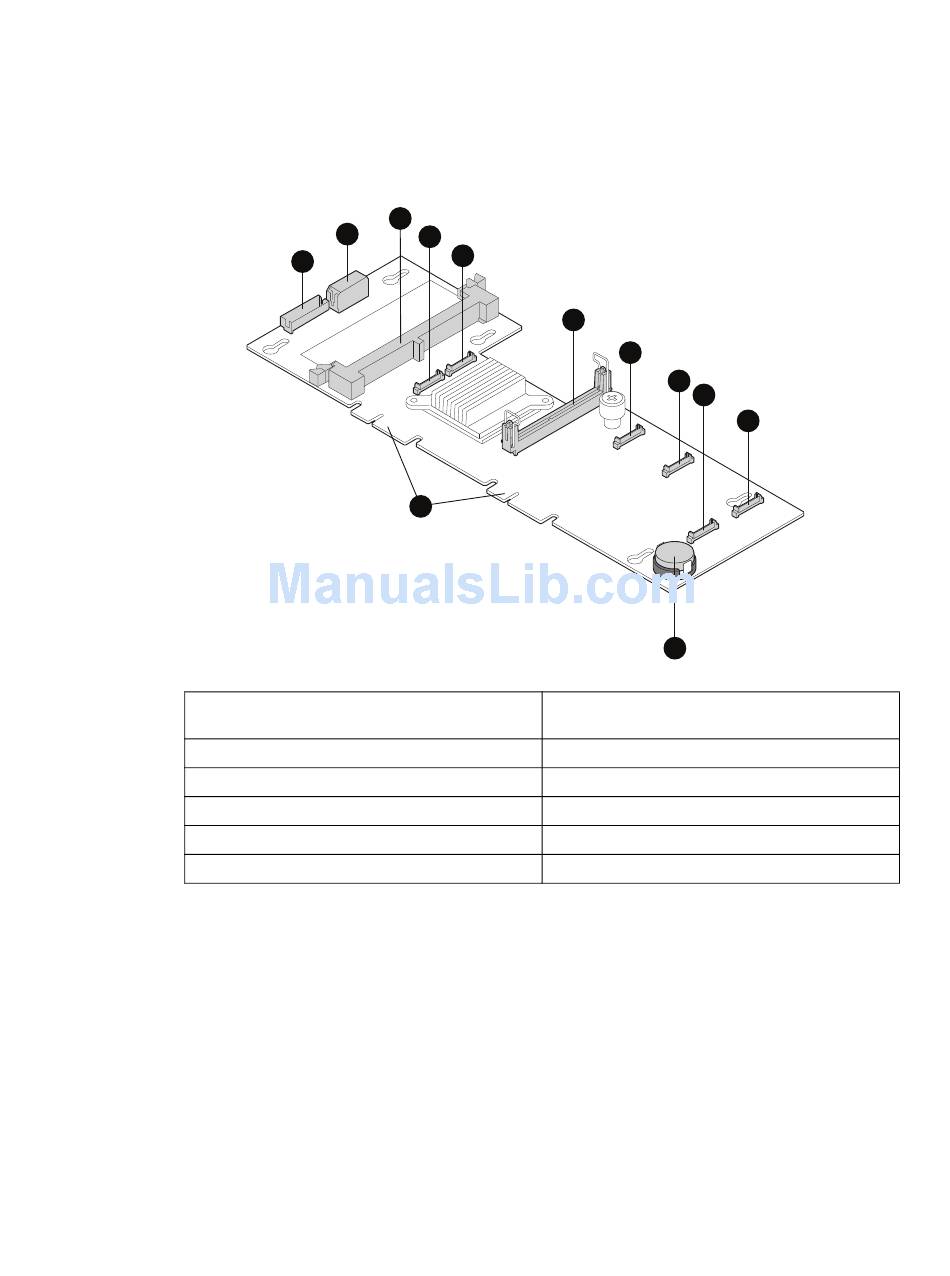

Figure 18. Active SAS/SATA RAID Midplane Components

F
G
H
I
K
G. Fan 4 Power Connector
H. Fan 3 Power Connector
I. Fan 1 Power Connector
J. Fan 2 Power Connector
K. RAID Activation Key Connector
L. Backplane Connectors
J
AF002790
