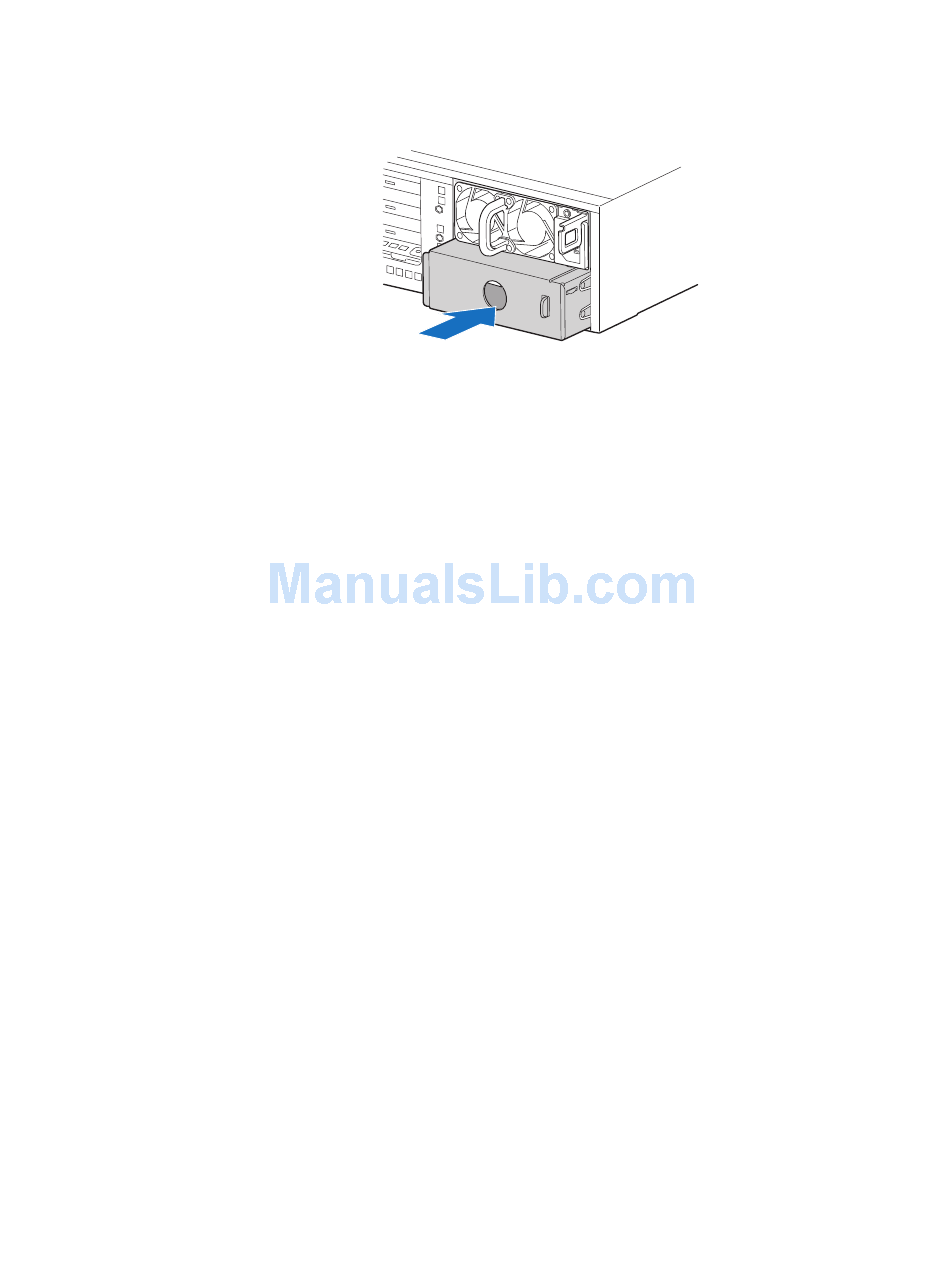

— If no power supply is to be installed, insert a power supply filler panel as shown
Figure 115. Installing Power Supply Filler Panel into the Server System
Replacing the Power Distribution Module
To replace the power distribution module, follow these steps:
1. If installed, remove the PCI riser assembly. For instructions, see
PCI Riser Assembly" on page
2. If installed, remove the processor air duct. For instructions, see
Processor Air Duct" on page
3. Remove the large air baffle. For instructions, see
on page
4. Remove the fan module assembly. For instructions, see
on page
5. Disconnect all power cables from the server board, backplane, and midplane.
6. Remove the hot-swap power supply/supplies. For instructions, see step 1 in
"Replacing the Power Supply" on page
7. Remove the two screws to release the module (see letter "A" in
®
Intel
Server System SR2600UR/SR2625UR Service Guide
in
Figure
115.
70.
128.
AF000023
50.
56.
"Removing the Large Air Baffle"
121.
"Removing the
"Removing the
"Replacing a Fan Module"
Figure
116).
121
