Figure 124. Removing The Fixed Fan Module - Intel SR2625UR - Server System - 0 MB RAM Service Manual

7. Remove the fan module assembly by lifting the assembly straight up and out of the
system (see
8. Install the replacement fan module assembly as follows:
a. Lower the fan assembly into the chassis (see letter "A" in
b. Line up the pins on the chassis floor with the matching holes on the bottom of the
130
Figure 124).

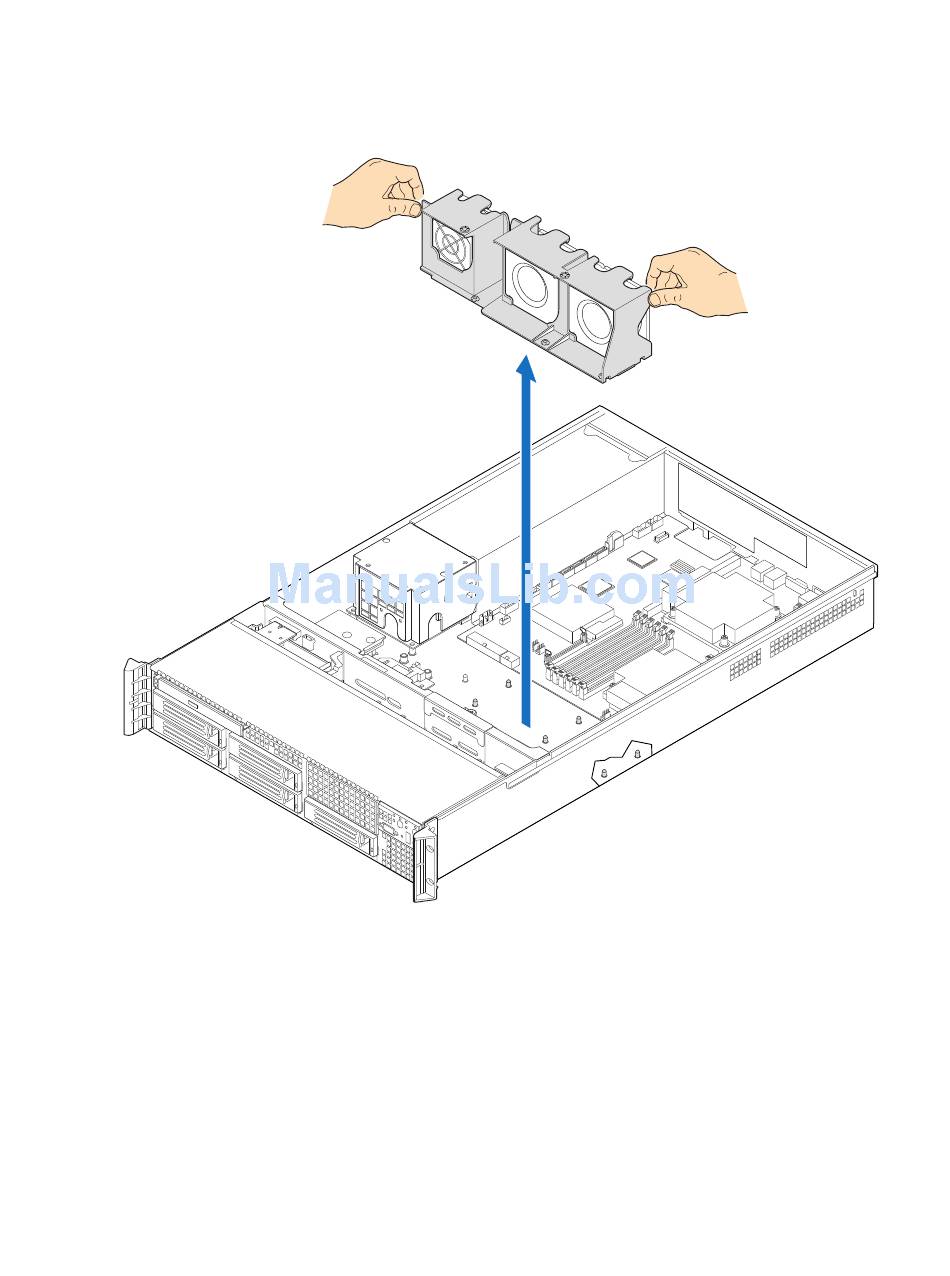

Figure 124. Removing the Fixed Fan Module

fan assembly (see letter "B" in Figure 125).
®
Intel Server System SR2600UR/SR2625UR Service Guide
Figure 125).
