Figure 40. Installing The Memory - Intel SR2625UR - Server System - 0 MB RAM Service Manual

3. Locate the DIMM sockets (see
4. Make sure the clips at either end of the DIMM socket(s) are pushed outward to the
open position (see letter "A" in
5. Holding the DIMM by the edges, remove it from its anti-static package.
6. Position the DIMM above the socket. Align the notch on the bottom edge of the
DIMM with the key in the DIMM socket (see letter "B" in
pointing to the key in the socket).
7. Insert the bottom edge of the DIMM into the socket.
8. When the DIMM is inserted, push down on the top edge of the DIMM until the
retaining clips snap into place (see letter "C" in
firmly in place (see letter "D" in
58
C
E
D
A
DIMM F1
DIMM F2
DIMM E1

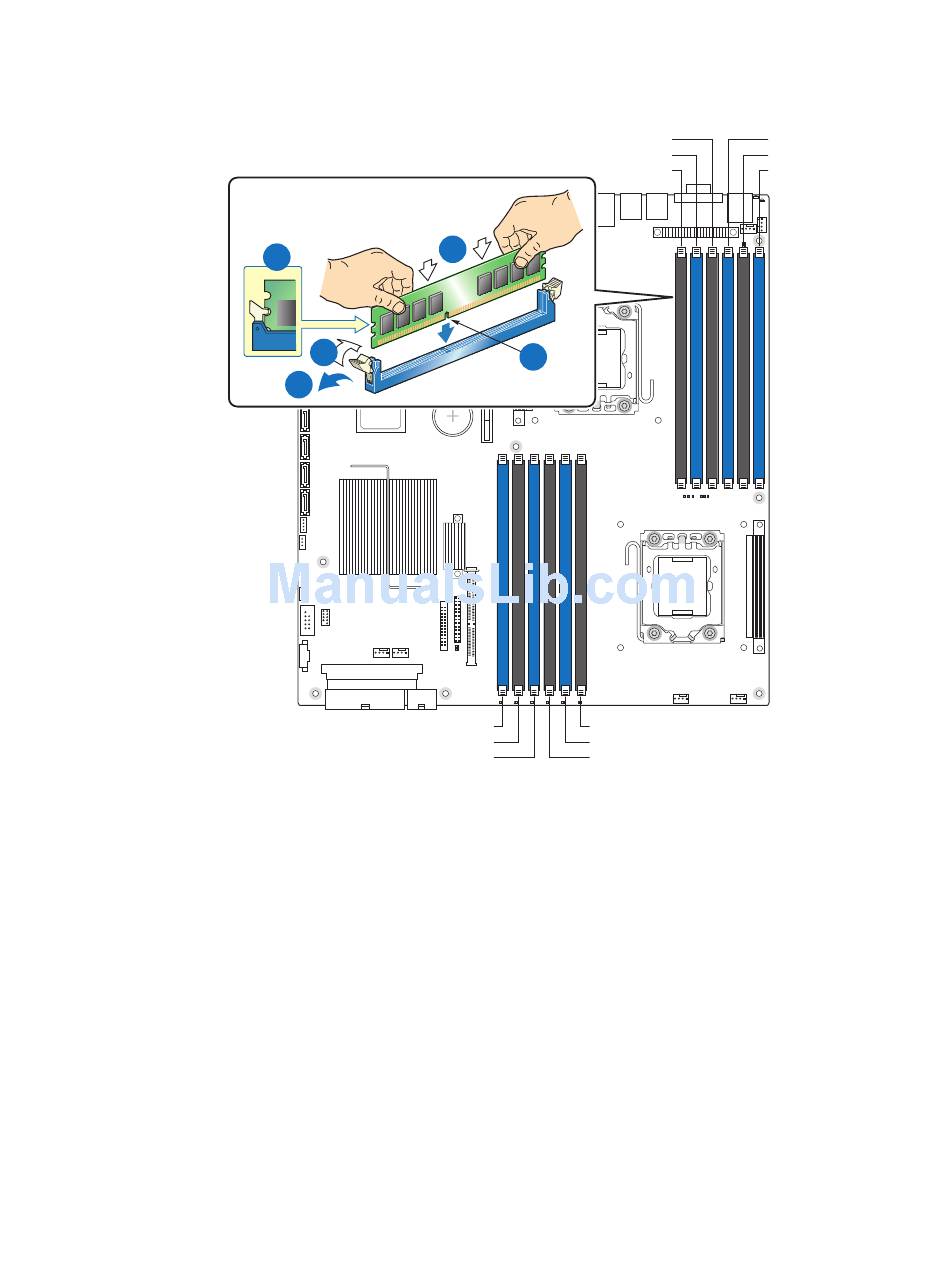

Figure 40. Installing the Memory

Figure 40).
DIMM B2
DIMM A1
DIMM A2
B
DIMM D2
DIMM D1
DIMM E2
Figure 40).
Figure
Figure 40).
®
Intel Server System SR2600UR/SR2625UR Service Guide
DIMM B1
DIMM C2
DIMM C1
AF002884
Figure 40 - the arrow is
40). Make sure the clips are
