brackets and attach each drive using four screws (see
Figure
82).
A
AF003035

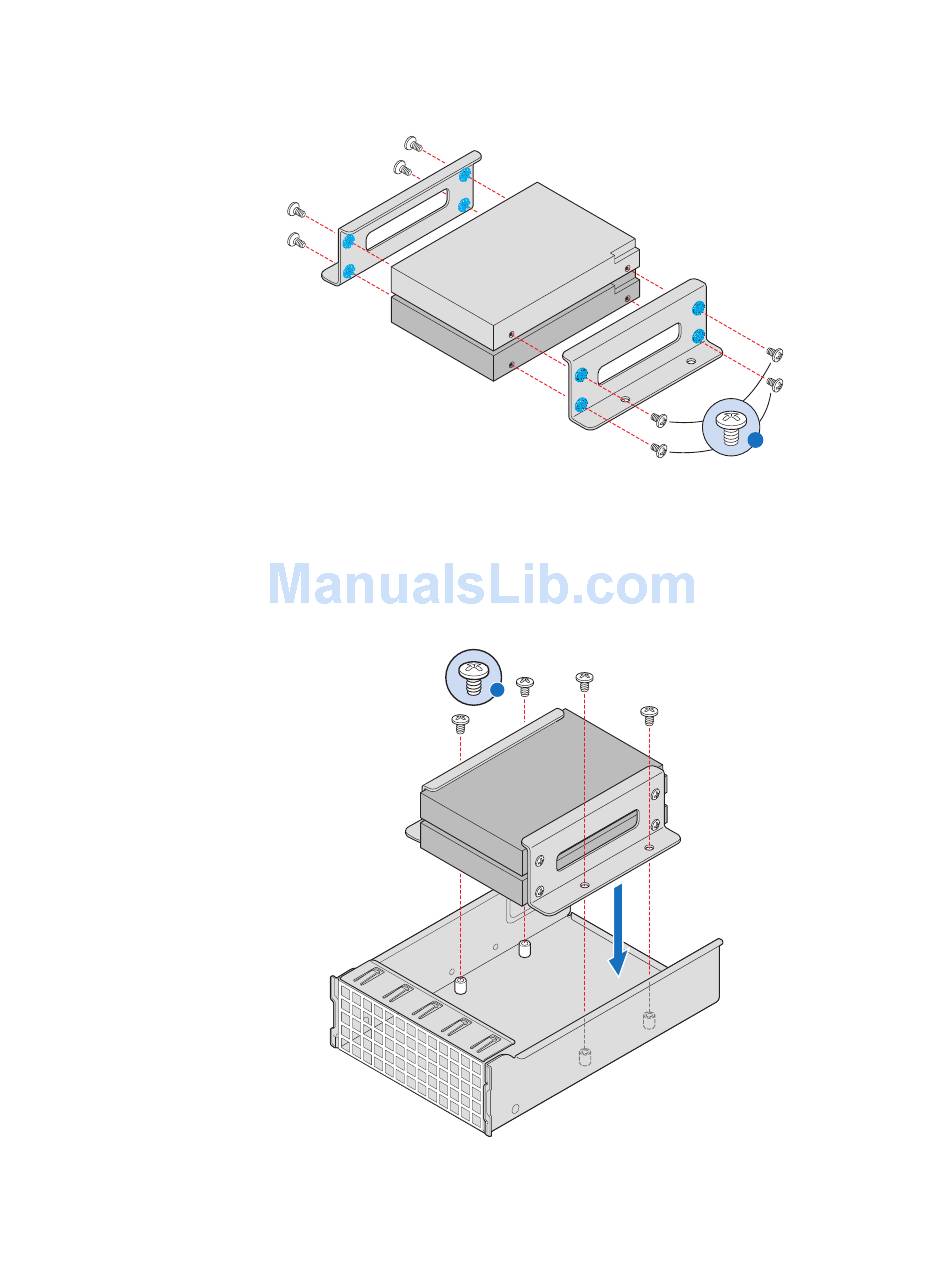

Figure 82. Attaching the 2.5-inch HDDs to the brackets
3. Attach the drive assembly containing the two installed 2.5-inch HDDs to the drive
tray using the four screws that are included with the 2.5-inch fixed hard disk drive
kit as shown in
Figure
83.
A
AF003036
Figure 83. Attaching the 2.5-inch HDD assembly to the drive tray
®
92
Intel
Server System SR2600UR/SR2625UR Service Guide
