Removing a PCI Add-in Card

To remove a PCI add-in card, follow these steps:
1. Remove the PCI riser assembly. For instructions, see
Assembly" on page
2. Open the rear retention clip by pushing the blue slide upward and rotating clip to
the fully open position (see letter "A" in
3. Open the front retention clip by rotating 90 degrees outward (see letter "B" in
Figure
4. Remove the PCI add-in card from the riser card connector (see letter "C" in
Figure
B
5. Install the filler panel (see letter "D" in
6. Close the rear retention clip. Push the blue slide upward and press the clip to lock it
into place.
7. Close the front retention clip and push the blue latch forward to lock it into place.
Note: Make sure that all empty add-in card slots have filler panels installed.
8. Install the PCI riser assembly into the server system. For instructions, see
"Installing the PCI Riser Assembly" on page
®
Intel Server System SR2600UR/SR2625UR Service Guide
50.
37).
37).

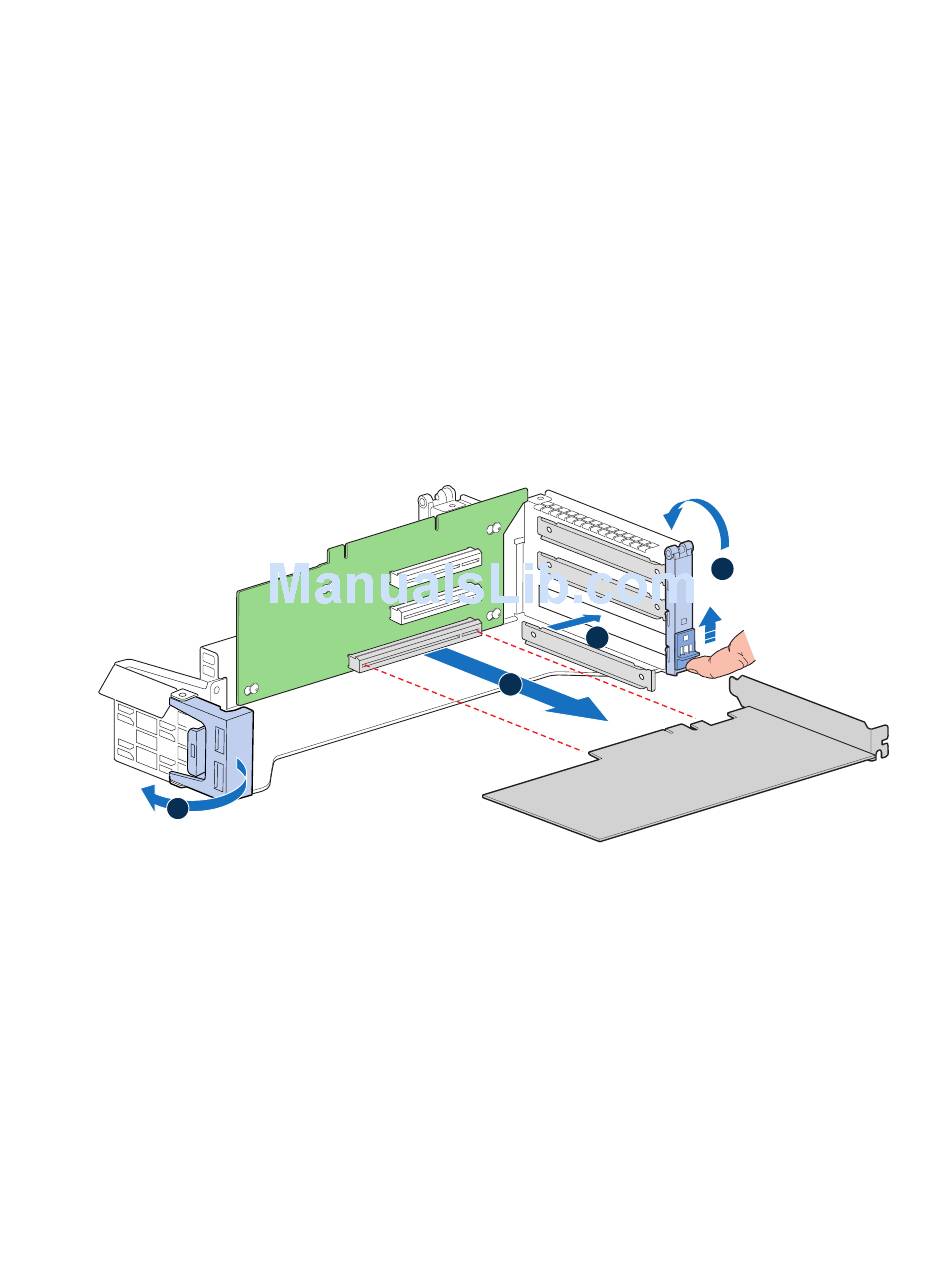

Figure 37. Removing a Full-height Add-In Card
