4. With the lever open, insert the hard disk drive assembly into the chassis, then push in the lever
to lock it into place (see letter "F").

Removing and Installing the PCI Riser Assembly

Removing the PCI Riser Assembly

Disconnect any cables attached to any add-in cards. Grasp the riser assembly with both hands
and pull up to remove from system.
®®
Intel
Server System R1000GZ/GL Service Guide

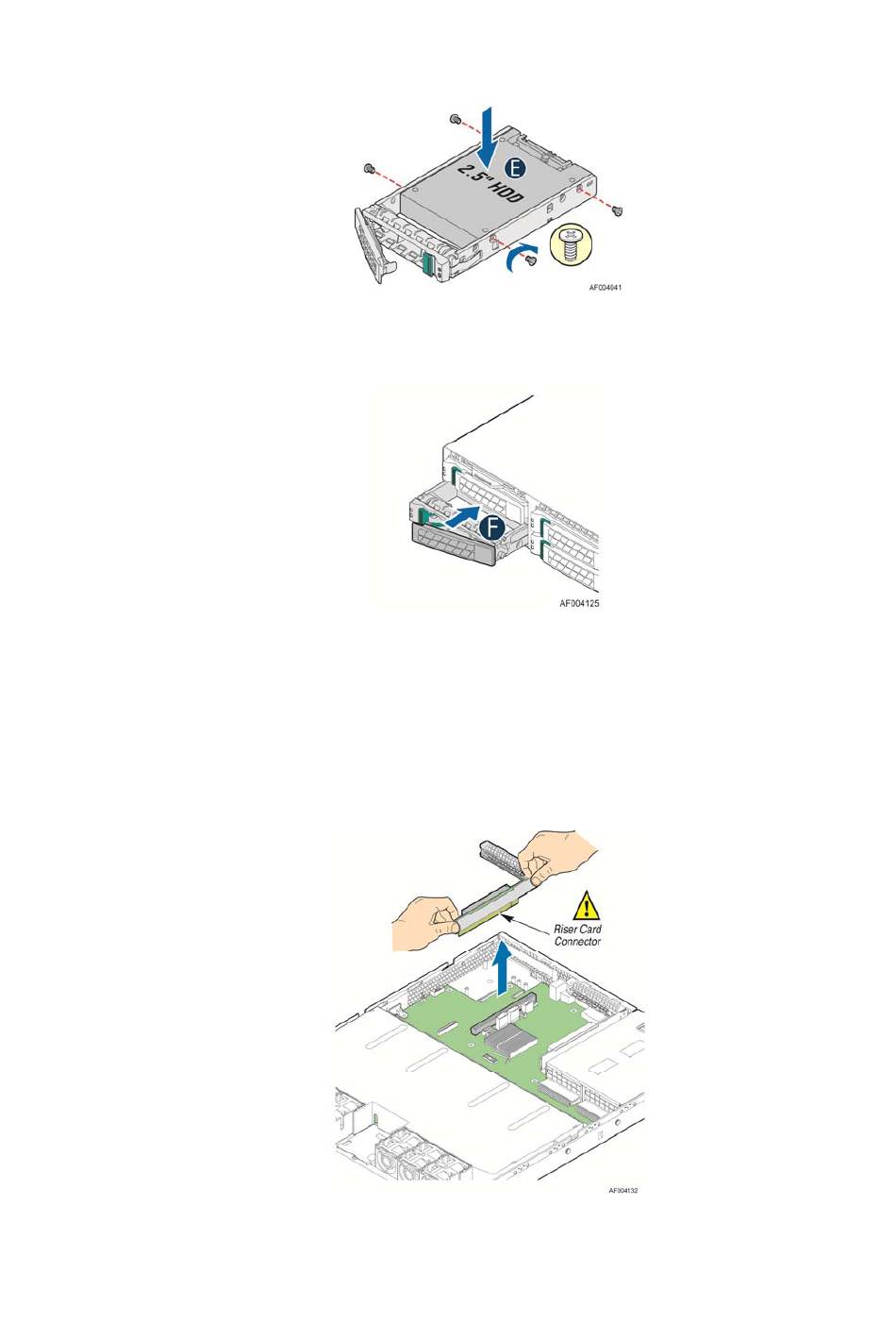

Figure 42. Installing Hard Disk Drive – Installing 2.5" HDD
Figure 43. Installing Hard Disk Drive – Inserting 2.5" HDD assembly

Figure 44. Removing PCI Riser Assembly

Hardware Installations and Upgrades
27
