Cluster Configuration

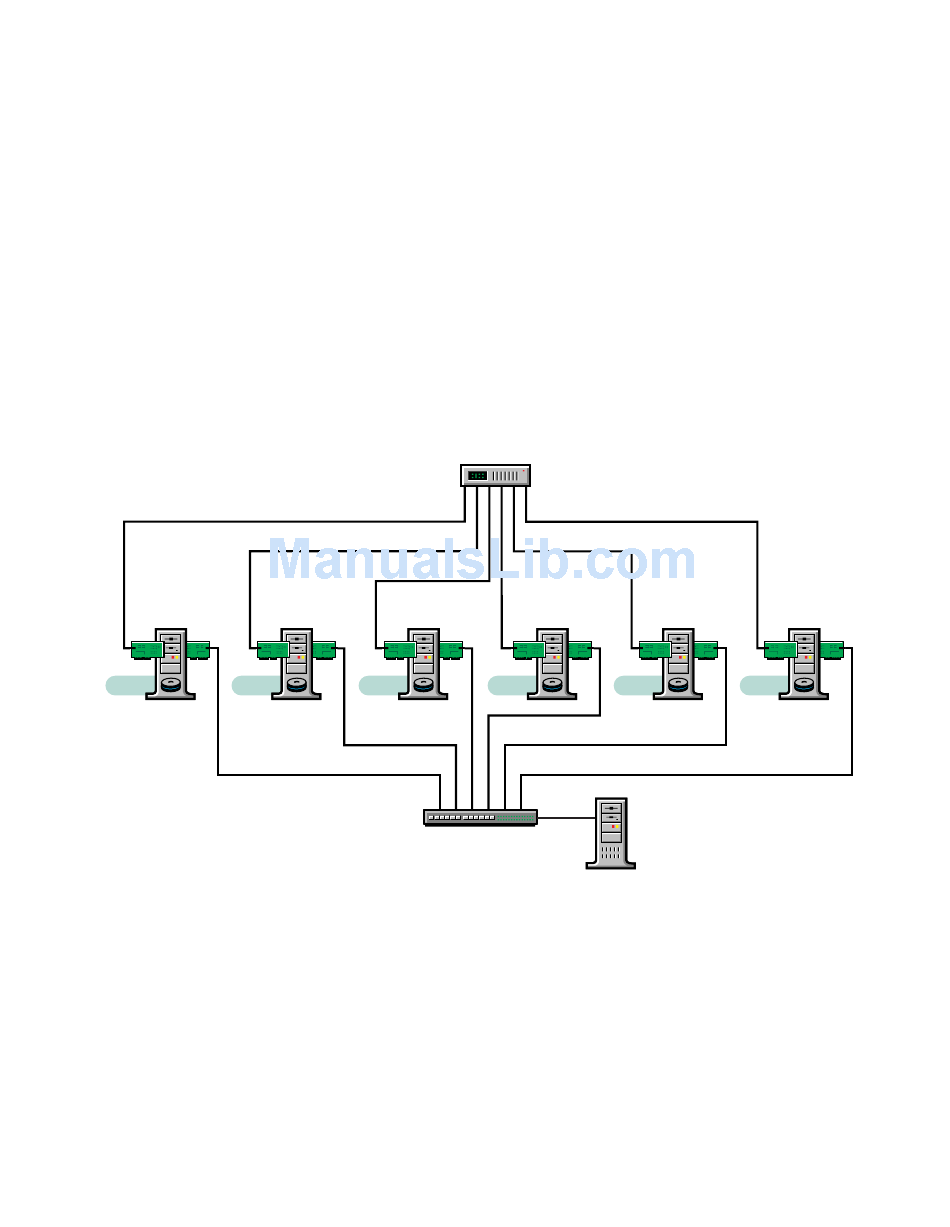

Figure 3 Typical Fiber Channel Cluster Configuration
Server 1
Network
Interface
Card(s)
Sys
Typical cluster configurations normally include a shared disk subsystem
connected to all servers in the cluster. The shared disk subsystem can be
connected via high-speed fiber channel cards, cables, and switches, or be
configured to use shared SCSI. If a server fails, another designated server in
the cluster automatically mounts the shared disk volumes previously mounted
on the failed server. This gives network users continuous access to the
volumes on the shared disk subsystem.
Typical resources might include data (volumes), applications, server licenses,
and services. The following figure shows how a typical fiber channel cluster
configuration might look.
Server 2 Server 3
Sys Sys
Fiber Channel Switch
Although fiber channel is the recommended configuration, you can configure
your cluster to use shared SCSI. The following figure shows how a typical
shared SCSI cluster configuration might look.
Network Hub
Server 4
Sys Sys
Shared Disk
System
Server 5 Server 6
Sys
Overview
Fiber
Channel
Card(s)
1 3
