3.1.2 Connecting Power to Panel

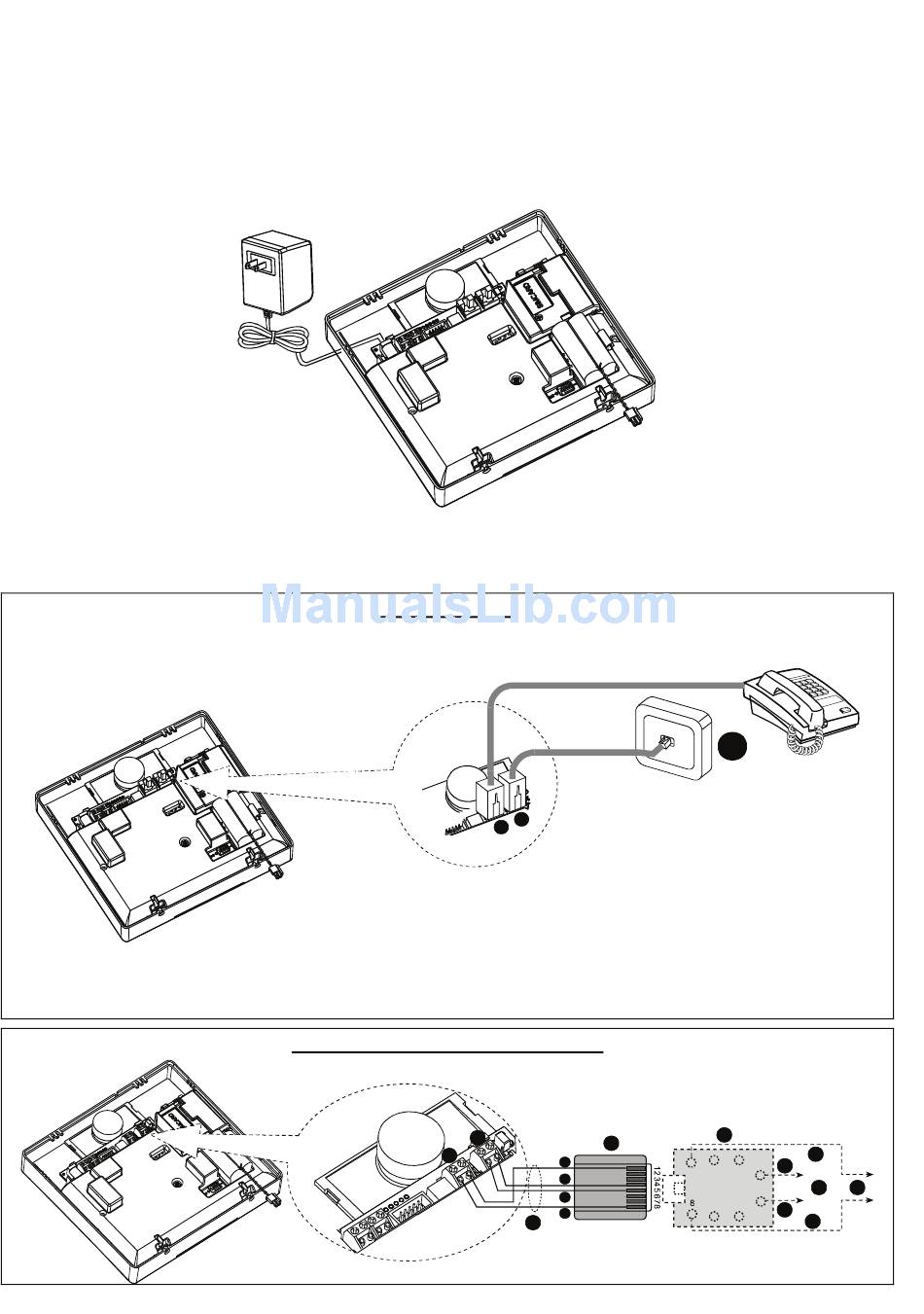

Connect the power cable and close the control panel as shown below. Electrical socket-outlet shall be installed
near the equipment and shall be easily accessible.
WARNING! DO NOT USE AN OUTLET CONTROLLED BY A WALL SWITCH.
Note: This equipment should be installed in accordance with Chapter 2 of the National Fire Alarm Code, ANSI/NFPA
72, (National Fire Protection Association).
Connect the power adapter to the power connector.

3.1.3 Telephone Wiring

Connect the telephone cable to the SET connector and connect the telephone line cable to the LINE connector
(through the desired wiring cable entry). Note: The telephone cable should be no longer than 3 meters.
A. SET
B. LINE
C. Tel line wall jack
D-302756
Fig. 3.2 - Power Cable Connection
PHONE WIRING
PHONE WIRING IN NORTH AMERICA
A
B
A
B
D
E
F
G
H
C
C
I
E
F
2 3 4
1
J K
RJ-31X
5
7
6
G
H
7
