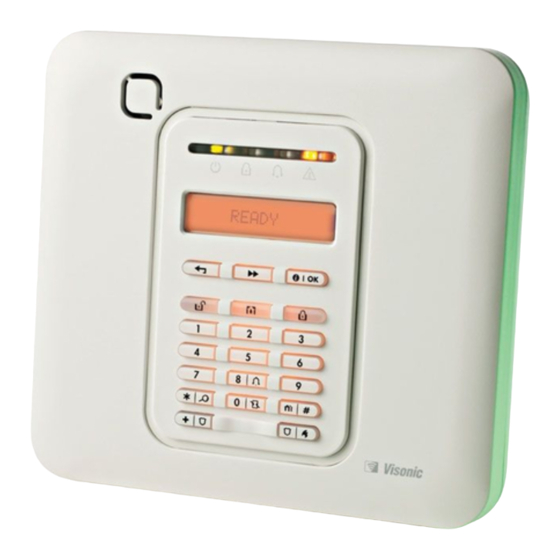

Visonic PowerMaster-10 G2 Installer's Manual

Fully supervised wireless alarm control system
Hide thumbs Also See for PowerMaster-10 G2:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Quick User Manual
INSTALLER GUIDE
PowerMaster-10 G2
Fully supervised wireless alarm control system
www.visonic.com

Advertisement

Table of Contents
loading

Related Manuals for Visonic PowerMaster-10 G2

Summary of Contents for Visonic PowerMaster-10 G2

  • Page 1 INSTALLER GUIDE PowerMaster-10 G2 Fully supervised wireless alarm control system www.visonic.com...

  • Page 2: Table Of Contents

    5.1.1 Navigation ........... 27 2. CHOOSING THE INSTALLATION LOCATION ... 7 5.1.2 Feedback Sounds ....... 27 3. POWERMASTER-10 G2 INSTALLATION ... 8 5.2 Entering the "Installer Mode" and Selecting a Menu Option ........... 27 3.1 Opening the PowerMaster-10 G2 Control 5.2.1 Entering the "Installer Mode"...
  • Page 3 5.6.1 General Guidance – "Communication" 7.3 Replacing the Backup Battery ....66 Flow-Chart & Menu Options ......43 7.4 Fuse Replacement ........66 5.6.2 Configuring PSTN (landline phone) 7.5 Replacing/Relocating Detectors ....66 Connection ........... 45 7.6 Annual System Check ........ 67 5.6.3 Configuring GSM-GPRS (IP) - SMS Cellular Connection ........

  • Page 4: Version

    PowerMaster-10 G2 and PowerMaster-30 G2 are PowerG-enabled professional all-in-one wireless security, fire and safety systems supporting advanced applications and Visonic's new revolutionary PowerG™ Two-Way, Time Division Multiple Access (TDMA) and Frequency Hopping Spread Spectrum (FHSS) wireless technology. This offers unmatched wireless robustness, superior range and long battery life;...
  • Page 5 1. INTRODUCTION Device Configuration Device parameters and related system To configure devices from the control behavior can be configured from the control panel: see Chapter 5 Programming and also panel or from a remote location. the individual device's Installation Instructions. Each PowerG device has its own settings which can be configured through the control To configure devices from a remote...
  • Page 6 3.6 Adding Wired Zones or PGM site's guard or Monitoring Station's guard in Device, Figure 3.6b (PowerMaster-10 G2) / the event of an alarm. section 4.7 Optional Expander Module Mounting, Figure 4.8b (PowerMaster-30 G2) 2.
  • Page 7 MC-302 PG2 PG2 Motion Motion Two-way KF-235 PG2 Magnetic Detector Detector Keypad Two-way Contact Mirror Detector with Camera PowerMaster-10 G2 Keyfobs Safety Detectors SMD-426 PG2 SMD-427 PG2 TMD-560 PG2 Smoke & Heat Temperature Smoke Detector KP-160 PG2 Keyprox Detector Detector Sirens...

  • Page 8: Choosing The Installation Location

    2. CHOOSING THE INSTALLATION LOCATION 2. CHOOSING THE INSTALLATION LOCATION To ensure the best possible mounting location of the PowerMaster control panel, the following points should be observed:  The selected location should be approximately in the center of the installation site between all the transmitters, preferably in a hidden location.

  • Page 9: Powermaster-10 G2 Installation

    WARNING! When plugging SIREN & ZONE terminals back into place, be sure to align them carefully with the pins on the PCB. Misaligned or reverse insertion of terminals may cause internal damage to the PowerMaster-10 G2! D-303222 PowerMaster-10/30 G2 Installer's Guide...

  • Page 10: Connecting To The Telephone Line

    In the case that RJ31X is not available (consult your telephone company or a qualified installer), the telephone line should be connected to the PowerMaster-10 G2 unit first and then all other home equipment should be connected to the PowerMaster-10 G2 "Phone" outlet.

  • Page 11: System Planning & Programming

    3.4 GSM Module Installation The internal GSM 350 module enables the PowerMaster-10 G2 system to operate over a GSM/GPRS cellular network (for further details, see the GSM 350 PG2 Installation Instructions). The GSM modem auto detection feature enables automatic enrollment of the GSM modem into the PowerMaster-10 G2 control panel memory.

  • Page 12: Pgm-5 Installation

    (for further details see the PGM-5 Installation Instructions). The PGM-5 provides 5 solid state relay contact outputs and is designed to be used as a plug-in internal add-on module with the PowerMaster-10 G2 control panel. Notes: 1. The PGM-5 will be active only if the PGM-5 option was enabled in the factory default of the control panel.

  • Page 13: Adding Wired Zones Or Pgm Device

    3. POWERMASTER-10 G2 INSTALLATION 3.6 Adding Wired Zones or PGM Device Required tools: Cutter and slotted screwdriver - 3 mm blade. PowerMaster-10 G2 wiring is shown in Figures 3.6a – 3.7b. CABLES ROUTING GUIDE A. Cables entry options B. Back unit C.

  • Page 14: Connecting Power To The Control Panel

    3. POWERMASTER-10 G2 INSTALLATION PGM AND ZONE WIRING Note: A. PGM output The wired detector should be installed at least 2 meters away from the Vmax=30v control panel. Imax=100mA Regarding the wired zone, the control panel classifies the events according B.
  • Page 15 3. POWERMASTER-10 G2 INSTALLATION Notes for UL installations: 1. A device that is connected to PGM terminal should not be programmed to be activated during standby. 2. The system shall be installed in accordance with CSA C22.1 Canadian Electrical Code, Part 1.
  • Page 16 3. POWERMASTER-10 G2 INSTALLATION CONNECTING AC POWER USING INTERNAL AC/DC POWER SUPPLY UNIT PERFORM STEPS 1 and 2 ON A WORKBENCH BEFORE THE MOUNTING 1. Extract either plastic segment (will be used later) 7. Fasten power cable by clamp (extracted in step 2) 2.

  • Page 17: Supplying Power To The Unit

    3. POWERMASTER-10 G2 INSTALLATION 3.8 Supplying Power to the Unit Connect power to the PowerMaster-10 G2 temporarily (see Figure 3.7a). Alternatively, you may power up from the backup battery, as shown in Figure 3.8. Disregard any “trouble” indications pertaining to lack of battery or lack of telephone line connection.

  • Page 18: Powermaster-30 G2 Installation

    4. POWERMASTER-30 G2 INSTALLATION 4. POWERMASTER-30 G2 INSTALLATION Required tool: Philips screwdriver #2. PowerMaster-30 G2 mounting process is shown in Figures 4.1 - 4.13. 4.1 PowerMaster-30 G2 Wiring Diagram A. Expander Module Flat B. Wired Zone / Special C. Battery Connector D.

  • Page 19: Opening The Powermaster-30 G2 Control Panel And Bracket Mounting

    4. POWERMASTER-30 G2 INSTALLATION 4.2 Opening the PowerMaster-30 G2 Control Panel and Bracket Mounting To Mount the Unit: A. Mounting surface 1. Release the screws B. Back unit 2. Remove the front cover C. Screws , then 3. Mark 4 drilling points on the mounting surface and then drill 4 holes and insert wall anchors fasten...

  • Page 20: Connecting Wired Zone And Siren (Detail "B" In Figure 4.1)

    4. POWERMASTER-30 G2 INSTALLATION PHONE WIRING IN NORTH AMERICA A. LINE D. 8-position RJ-31X plug G. Green J. Line from street B. SET E. Brown H. Gray K. House phones F. Red RJ-31X jack C. RJ-31X cord Figure 4.3b – Phone Wiring in North America Phone wiring in the UK: Line terminals must be connected to pins 2 and 5 of the wall jack.

  • Page 21: Gsm Module Installation (Detail "N" In Figure 4.1)

    4. POWERMASTER-30 G2 INSTALLATION 4.6 GSM Module Installation (detail "N" in Figure 4.1) Plug in the GSM module and fasten it as shown in the above Insert the SIM card into the GSM module as shown in drawing. the above drawing. A.
  • Page 22 Figure 4.7. A. DUAL RS-232 Module B. Connector for PC C. Connector for PC D. Visonic PC cable E. Flat cable with one strain relief clip E1. This side for front unit E2. This side for back unit F.

  • Page 23: Optional Expander Module (Detail "K" In Figure 4.1)

    4. POWERMASTER-30 G2 INSTALLATION A. PowerMaster-30 G2 connector B. Front unit C. PGM-5 Module D. Back unit E. Wiring Cable F. Flat cable F1. This side for front unit F2. This side for back unit G. PGM-5 flat cable receptacle Figure 4.8 –...
  • Page 24 4. POWERMASTER-30 G2 INSTALLATION OPTIONAL EXPANDER MODULE, ZONES, SIRENS, AUDIO BOX AND WIRED DETECTORS WIRING A. Back Unit Notes: B. Expander 1. The E.O.L resistors are 2.2 kΩ resistors of 1/4 W, C. Internal siren or strobe 6-12 VDC, 5% supplied with the panel and are UL listed 150 mA Max.

  • Page 25: Connecting Power To The Control Panel

    4. POWERMASTER-30 G2 INSTALLATION The 12V and "GND" terminals can be connected to a siren (for constant DC power supply). The.12V supply to the PGM device is fused. Current is limited to 100 mA. WARNING! When plugging terminals back into place, be sure to align them carefully with the pins on the PCB. Misaligned or reverse insertion of terminals may damage internal PowerMaster-30 G2 circuits! IMPORTANT! The terminals for internal and external sirens are DC outputs intended for 12V sirens.

  • Page 26: Battery Insertion

    4. POWERMASTER-30 G2 INSTALLATION EXTERNAL POWER CONNECTION Connect the power adaptor to the front panel power connector. Figure 4.10b – External Power Connection 4.11 Battery Insertion Open battery compartment cover. Insert one 6-battery pack or 8-battery pack and connect its connector as shown in Figure 4.11.

  • Page 27: Closing The Powermaster-30 G2 Control Panel

    4. POWERMASTER-30 G2 INSTALLATION 4.13 Closing the PowerMaster-30 G2 Control Panel Control panel final closure is shown below. To Close the Control Panel: 1. Connect the flat cables, between front and back units, in their respective connectors (up to 3, according to options).

  • Page 28: Programming

    5. PROGRAMMING 5. PROGRAMMING 5.1 General Guidance This chapter explains the Installer programming (configuration) options of your PowerMaster system and how to customize its operation to your particular needs and end user requirements. The control panel includes a partition feature. Partitioning allows you to have up to three independently controllable areas with different user codes assigned to each partition.

  • Page 29: Entering The "Installer Mode" If "User Permit" Is Enabled

    5. PROGRAMMING To enter the "Installer Mode" and select an Installer Menu Option proceed as follows: Step 1  Step 2  Step 3  Step 4 Select "INSTALLER Enter Select "Installer Menu" Option MODE" Option Installer Code   ...

  • Page 30: Setting Installer Codes

    5. PROGRAMMING The system exits the “INSTALLER MODE" menu and returns to the normal disarm state while showing the READY display. 5.3 Setting Installer Codes The PowerMaster system provides two installer permission levels with separate installer codes, as follows:  Master Installer: The "Master Installer"...

  • Page 31: Zones / Devices

    5. PROGRAMMING (b) i) Change the Installer Code to a temporary code, ii) exit the Installer Mode, iii) enter the Installer Mode again using the Master Installer code (the Master Installer Code will now be accepted), iv) change the Master Installer code to a different code, v) and change the NON-Master Installer Code back again (in other words, undo the change to the temporary code) so that the NON-Master Installer can still enter the system.
  • Page 32 5. PROGRAMMING The display shows the device details and the first available free Zone number for example: "Z01:Motion Sensor > ID No. 120-1254" (or "K01:Keyfob / S01:Siren etc. depending on the type of the enrolled device). Both Wireless and wired detectors can be enrolled in any zone number. To change the zone number, click the button or type in the zone number, and then press to confirm.
  • Page 33 5. PROGRAMMING - Configuring New Devices   Location (name) setting: To review or change the Location (name) setting, press the button, otherwise scroll to the next option. To change the Location name, enter the menu and select the name from the "Location List" below. You can assign additional custom names using the "06.CUSTOM NAMES"...
  • Page 34 5. PROGRAMMING Zone Type List Zone Type Description Exit/Entry 1 This Zone starts the exit time when the user arms the system or the entry time when the system is armed. To configure the Exit/Entry 1 time, see sections 5.5.1 & 5.5.2 - Installer (∗) menu "03.CONTROL PANEL"...

  • Page 35: Deleting A Device

    5. PROGRAMMING 5.4.3 Deleting a Device Step 1  Step 2  Step 3  Step 4  Step 5 Select "DELETE Select the respective Select exact device To delete the device: DEVICES" Option device Group you wish to delete press the ...

  • Page 36: Defining Configuration Defaults For "Device Settings

    5. PROGRAMMING To Replace, a device proceed as follows: Step 1 Step 2 Step 3 Step 4 Step 5     Select "REPLACE Select the respective Select exact device Enroll the new device DEVICES" Option device Group you wish to replace ...

  • Page 37: Updating Devices After Exiting Installer Mode

    5. PROGRAMMING 5.4.7 Updating Devices after Exiting Installer Mode When exiting the "Installer mode", the PowerMaster panel communicates with all devices in the system and updates them with the changes that have been performed in their "Device Settings" configuration. During the updating period, the display indicates "DEV UPDATING 018"...

  • Page 38: Configuring Arming/Disarming And Exit/Entry Procedures

    5. PROGRAMMING Miscellaneous 5.5.8 91:USER PERMIT 92:BATTERY TYPE 5.5.2 Configuring Arming/Disarming and Exit/Entry Procedures The following table provides you with a detailed description of each option and its configuration settings. To select an option and change its configuration – refer to section 5.5.1. Option Configuration Instructions 01:ENTRY DELAY1...

  • Page 39: Configuring Zones Functionality

    This feature is active only when the system is armed AWAY and only with respect to the following zone couples: 18+19, 20+21, 22+23, 24+25, 26+27 in PowerMaster-10 G2 system / 40+41, 42+43, 44+45, 46+47, 48+49, 50+51, 52+53, 54+55, 56+57, 58+59, 60+61, 62+63 in PowerMaster-30 G2 system.

  • Page 40: Configuring Alarms & Troubles

    5. PROGRAMMING Option Configuration Instructions 3. CP-01 was tested and certified by ETL/Intertek. 4. CP-01 features not to be enabled in UL Listed product. Important! Do not define "cross zoning" to any other zone types such as Fire, Emergency, 24h audible, 24h silent etc. 5.5.4 Configuring Alarms &...

  • Page 41: Configuring Sirens Functionality

    5. PROGRAMMING Option Configuration Instructions disarms the system within the delay time, the alarm is aborted. You can activate the feature and select the "Abort Time" interval. Options: in 00 (default in USA)/15/30 (default)/45/60 seconds; in 2/3/4 minutes Note: To comply with UL or CP-01 requirements, the abort time must not exceed 45 sec. CP-01 features not to be enabled in UL Listed product.

  • Page 42: Configuring Audible & Visual User Interface

    5. PROGRAMMING 45:STROBE TIME Define the length of time the strobe light will flash upon alarm. Options: 5/10/20 (default)/40/60 minutes Determine if the siren will be activated when the phone line fails and the system is armed. 46:SIREN ON LINE Options: disable on fail (default) or enable on fail.

  • Page 43: Configuring Jamming And Supervision (Missing Device)

    5. PROGRAMMING Option Configuration Instructions 56:SCREEN SAVER The Screen Saver option (when activated) replaces the status display with “POWERMASTER-10” / “POWERMASTER-30” display if no key is pressed during more With Partition disabled than 30 seconds. You can activate the Screen Saver and determine whether the status display will resume following any key press (refresh by Key) or by entering a code (refresh by Code).

  • Page 44: Configuring Miscellaneous Features

    5. PROGRAMMING "SUPERVISION" Options: after 1/2/4/8/12 (default) hour(s); and disabled. Notes: 1. To comply with EN requirements, 1 hour or 2 hours must be selected. 2. For UL installations, set to “4 hours” or less. 3. For UL/ULC Residential Fire and Burglary Installations, the wireless supervision window shall be enabled.
  • Page 45 5. PROGRAMMING Contains configurable features and parameters related to Motion Cameras for 5.6.6 5:MOTION CAMERA Video Alarm Verification and forwarding of image clips to the Monitoring Station and other remote subscribers via e-mail and/or MMS network. Contains configurable connection information, access permission and security 5.6.7 6:UP/DOWNLOAD codes related to the Upload/Download procedures via PSTN or GPRS.

  • Page 46: Configuring Pstn (Landline Phone) Connection

    5. PROGRAMMING 5.6.2 Configuring PSTN (landline phone) Connection The PowerMaster panels include a telephone dialer for reporting to Monitoring Stations using several optional Alarm Formats (see section 5.6.4 option 41) and to Private Telephones (see section 5.6.5 " "). Here you VOICE REPORT configure necessary parameters related to the PSTN telephone line to which the PowerMaster is connected.
  • Page 47 5. PROGRAMMING SIM PIN CODE Enter the PIN code of the SIM card installed in the GSM module (up to 8 numerical digits). Note: To enter the numerical PIN code, use the numerical keyboard. GPRS PASSWORD Enter the Password of the APN used for GPRS communications (up to 16 digits string). Note: To enter the Password, use the "String Editor"...

  • Page 48: Configuring Events Reporting To Monitoring Stations

    5. PROGRAMMING 5.6.4 Configuring Events Reporting to Monitoring Stations The PowerMaster control panel is designed to report alarm, alerts, troubles and other events and messages to two Monitoring Stations C.S.1 and C.S.2 via PSTN telephone line, Cellular i.e. GSM voice (analog), GPRS (IP) & SMS or Broadband IP communications channels.
  • Page 49 22:IP RCVR 2 to report the event messages defined in Report Events option (option 01) to two IP Receivers, Visonic PowerManage model. IP reporting can be performed via GPRS (IP) channel using SIA Master Installer only IP format or via Broadband IP channel using SIA IP or Visonic PowerNet format.
  • Page 50 5. PROGRAMMING Option Configuration Instructions Note: For UL installations, the communication formats used are SIA and Contact ID and the compatible receivers are the ones mentioned above. 46:PSTN RETRIES Define the number of times the system will retry to report to the Monitoring Station in case of failure to report via the PSTN telephone line connection.
  • Page 51 5. PROGRAMMING Option Configuration Instructions  Voice <- -> C.S. Station (to turn the Monitoring Station from data communication to voice communication  Ringback time state) by using pre-selected SIA or Contact-ID communication format only.  Voice <--> C.S.: Select the timeout for 2-way voice communication with Monitoring Stations, or Ambient level enable the Monitoring Station to ring back for 2-way voice function.

  • Page 52: Configuring Events Reporting To Private Users

    If equipped with a GSM/GPRS module, the PowerMaster can communicate to Monitoring Stations (equipped with Visonic PowerManage server) via the GPRS network, also with image clips captured by Motion Cameras (models Next CAM PG2 & Next-K9 CAM PG2). The Monitoring Station can use the video clips for verification of Burglary alarms detected by the Motion Cameras.

  • Page 53: Configuring Upload / Download Remote Programming Access Permission

    "PSTN UP/DOWNLOAD" menu – see table below. For further information refer to the "PowerMaster Remote Programmer Software User's Guide". Remote programming via GPRS is performed using a Visonic PowerManage server and related Remote Programmer PC software. The PowerManage server calls from a cellular modem to the Panel's SIM card number. The panel checks the caller ID and if identical with any of the two callers ID 1 or 2 programmed in the "GPRS UP/DOWNLOAD"...

  • Page 54: Pgm Output

    Enter the "LOCKOUT TIME" menu and enter the daytime limits through which the PGM device will turn off, even when the associated sensors are triggered. In PowerMaster-10 G2, this is always available. In PowerMaster-30 G2, this is optional only when the expansion module is installed. D-303222 PowerMaster-10/30 G2 Installer's Guide...

  • Page 55: Pgm Output Configuration

    5. PROGRAMMING 5.7.5 PGM Output Configuration Option Configuration Instructions PGM: BY ARM AWAY Determine to activate the PGM output upon arming Away / Home / Disarm. PGM: BY ARM HOME Options: disable (default); turn ON; turn OFF; activate PULSE. PGM: BY DISARM Determine to activate the PGM output upon registration of an alarm in the memory.

  • Page 56: Record Speech

    5. PROGRAMMING Option Configuration Instructions CUST. ZONES NAME Enter the five Custom Location names you wish to use instead of the "Custom 1" to "Custom 5" names in the Location List in Section 5.4.2. TEXT LOC. #05 1 To program: TEXT LOC.

  • Page 57: Voice Box Mode

    5. PROGRAMMING 5.8.3 Voice Box Mode This mode allows you to determine whether two-way voice communication is to be sounded either via an external speakerphone, via the control panel, or via both. For the two-way voice communication procedure, follow the instructions below. Additional details and guidance are provided in section 5.2.

  • Page 58: Testing The Gsm Module

    5. PROGRAMMING Option Instructions You can test all devices automatically, one after the other. TEST ALL DEVICES While in "TEST ALL DEVICES", press to initiate the test. The devices are tested in the following order: wall-mounted devices, keyfobs and handheld devices.

  • Page 59: User Settings

    5. PROGRAMMING The following table presents the test result messages Message Description Unit is OK GSM / GPRS is functioning correctly GSM comm. loss GSM/GPRS module does not communicate with the Panel Pin code fail Missing or wrong PIN code. (Only if SIM card PIN code is enabled.) GSM net.

  • Page 60: Start Ul/Dl

    5. PROGRAMMING 5.13 Start UL/DL Note: This option is only used during the installation of panels monitored by compatible Monitoring Stations. The "START UL/DL" menu enables the installer to initiate a call to the upload/download server. The server uploads the PowerMaster configuration to its database and can download predefined parameters to the PowerMaster.

  • Page 61: Select Between En-50131, Dd243 And Bs8243

    5. PROGRAMMING 5.15.2 Select between EN-50131, DD243 and BS8243 To select the desired operation mode, proceed as follows: Step 1 Step 2 Step 3 Step 4 Select "13:OPERATION MOD" menu Enter "01:SELECT MODE" Select "EN-50131", "DD243" or "BS8243"   ...

  • Page 62: Dd243 Setup

    5. PROGRAMMING Option Configuration Instructions 06:CONFIRM PANIC A confirmed panic alarm is reported if one of the following occurs within the confirmation time: a) A second panic device is activated. b) A second panic alarm on the same device is activated. c) A tamper event is activated (not from the zone / device that initiated the panic alarm).

  • Page 63: Periodic Test

    6. PERIODIC TEST Option Configuration Instructions 04:FOB/KP PANIC Define the devices that cannot trigger a panic alarm. DD243 – MCT-234. all - All devices can trigger a panic alarm 05:CONFIRM ALARM Define a specific time period that if 2 successive alarms occur, the second alarm will be considered as a confirmed alarm, (see REPORT CNFRM ALARM below).

  • Page 64: Conducting A Periodic Test

    6. PERIODIC TEST 6.2 Conducting a Periodic Test The PowerMaster enables you to conduct the periodic test in four parts: Siren Test: Each siren of the system is automatically activated for 3 seconds (outdoor sirens with low volume). Temperature Sensor Test: When Temperature Sensors are enrolled in the system, the control panel displays the temperature of each zone in Celsius or Fahrenheit.
  • Page 65 6. PERIODIC TEST Option Instructions 1. Press to view details of the next untested device. 2. Press to exit the test process. During testing, you can also check the signal strength indication of each device, (for further details, refer to the device Installation Instructions). After all devices have been tested, the control panel reads "DEVICE TESTS END".

  • Page 66: Maintenance

    7. MAINTENANCE Option Instructions 3. Press continuously to navigate to a different zone number.  "SHOCK NOT 4. Press ; the following screens will appear: "Zxx ACTIVATE NOW"   ACTIV." "CNTACT NOT ACTIV" "AUXIL. NOT ACTIV". Note: The above screens are the full range of screens that can appear and indicate the inputs that have not yet been activated.

  • Page 67: Dismounting The Control Panel

    A. Remove the screw that fastens the front unit to the back unit, see Figure 3.1 (PowerMaster-10 G2) / 4.1 (PowerMaster-30 G2). B. Remove the 4 screws that fasten the back unit to the mounting surface - see Figure 3.1 (PowerMaster-10 G2) / 4.1 (PowerMaster-30 G2) - and remove the control panel.

  • Page 68: Annual System Check

    Note: Up to 250 events (PowerMaster-10 G2) / 1000 events (PowerMaster-30 G2) are stored in the event log that can be reviewed via the Remote Programmer PC software application or by the remote PowerManage server.

  • Page 69: Appendix A. Specifications

    APPENDIX A. Specifications APPENDIX A. Specifications A1. Functional PowerMaster-10 G2 PowerMaster-30 G2 Zones Number 30 wireless zones (including 1 hard-wired Up to 64 wireless zones, (including 2 hard- input). wired inputs). Hard-wired Zone 2.2 kE.O.L. resistance (max. resistance of 2.2 kE.O.L. resistance (max. resistance of wires 220 ...

  • Page 70: A2. Wireless

    APPENDIX A. Specifications PowerMaster-10 G2 PowerMaster-30 G2 Real Time Clock The control panel keeps and displays time and The control panel keeps and displays time and (RTC) date. This feature is also used for the log file by date. This feature is also used for the log file by...

  • Page 71: A4. Communication

    Local Computer Report 2 Monitoring Stations, 4 private telephones 2 Monitoring Stations, 4 private telephones Destinations Reporting Format SIA, Contact ID, Scancom, SIA IP, Visonic SIA, Contact ID, Scancom, SIA IP, Visonic Options PowerNet. PowerNet. Note: For UL Listed product, the...

  • Page 72: A6. Peripherals And Accessory Devices

    658g (23 Oz) (with battery) 1.44Kg (3.2 pounds) (with battery) Color White White A6. Peripherals and Accessory Devices PowerMaster-10 G2 PowerMaster-30 G2 Modules GSM/GPRS, IP (future use) GSM/GPRS, IP (future use) Additional 30 detectors, 8 keyfobs, 8 keypads, 4 sirens,...

  • Page 73: B2. Common Areas

    APPENDIX C. Detector Deployment & Transmitter Assignments B2. Common Areas Common areas are areas used as walkthrough zones to areas of 2 or more partitions. There may be more than one common area in an installation depending on the layout of the property. A common area is not the same as a partition; it cannot be armed / disarmed directly.
  • Page 74 Notes: All zones are chime off by default. Enter your own choice in the last column and program accordingly. There is only 1 hard-wired zone in PowerMaster-10 G2 and 2 hard-wired zones in PowerMaster-30 G2. D-303222 PowerMaster-10/30 G2 Installer's Guide...

  • Page 75: C2. Keyfob Transmitter List

    APPENDIX D. Event Codes C2. Keyfob Transmitter List Transmitter Data AUX button Assignments Skip exit delay or Arming “instant” Type Holder Type Holder Indicate the desired function (if any)  Skip exit delay Arming “instant”  C3. Emergency Transmitter List Tx # Transmitter Type Enrolled to Zone...

  • Page 76: D2. Sia Event Codes

    APPENDIX D. Event Codes Panic Fire detector trouble Duress Sensor trouble Silent Inactive event Audible Sensor tamper Perimeter RF low battery Interior Fire detector clean me Entry/Exit O/C by user Tamper/CP Auto arm Burglary verified Cancel Gas alarm Quick arm Freezer alert Door open event Flood alarm...

  • Page 77: D3. Understanding The Scancom Reporting Protocol Data Format

    APPENDIX E. Sabbath Mode D3. Understanding the Scancom Reporting Protocol Data Format The SCANCOM data format consists of Account Channels Channels 13 decimal digits divided into 4 groups, Code 1 - 4 5 - 8 from left to right, as shown on the right. System Status: Each channel is associated with a aaaa...

  • Page 78: E3. Arming The System By Sabbath Clock

    APPENDIX F. Glossary Wiring Setup A. MC-302E device B. Wired magnetic contact C. Fixed frame D. Moving part E. Open/close switch E1. Closed E2. Open E3. Arming the System by Sabbath Clock 1. Enroll an MC-302E to the PowerMaster control panel (see section 5.4.2). 2.
  • Page 79 APPENDIX F. Glossary Disarming: The opposite of arming - an action that restores the control panel to the normal standby state. In this state, only fire and 24-hour zones will sound an alarm if violated, but a “panic alarm” may also be initiated. Disturbed Zone: A zone in a state of alarm (this may be caused by an open window or door or by motion in the field of view of a motion detector).

  • Page 80: Appendix G. Compliance With Standards

    APPENDIX G. Compliance with Standards APPENDIX G. Compliance with Standards Hereby, Visonic Group declares that the PowerG series of central units and accessories are designed to Compliance with comply with:  Standards  U.S. Standards: (FCC) CFR 47 part 15 and part 68, UL 1023 and UL 985 ...
  • Page 81 APPENDIX G. Compliance with Standards WARRANTY Visonic Limited (the “Manufacturer") warrants this product only (the "Product") to the original However, if the Manufacturer is held liable, whether directly or indirectly, for any loss or purchaser only (the “Purchaser”) against defective workmanship and materials under normal...
  • Page 82 INSTALLER GUIDE PowerMaster-30 G2 Fully supervised wireless alarm control system www.visonic.com...
