A. SET
B. LINE
C. RJ-31X cord
D. 8-position RJ-31X plug
E. Gray
F. Red
G. Green
H. Brown
I. RJ-31X jack
J. Line from street
K. House phones
This equipment is designed to be connected to the
telephone network using RJ11 connector which
complies with Part 68 rules and requirements adopted
by ACTA and properly installed RJ31X connector. See
drawing below for details.
A
B

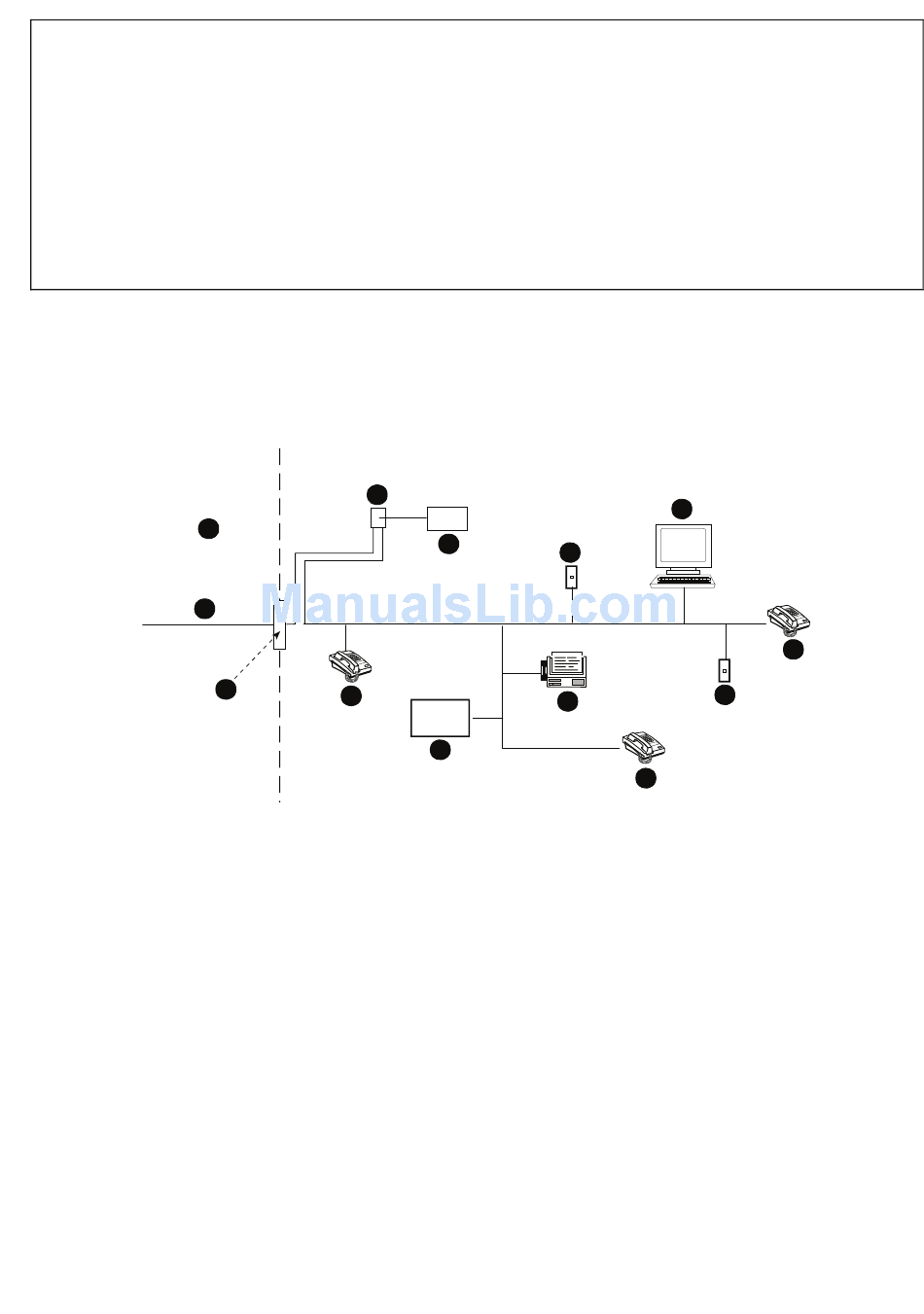

A. Network Service Provider's Facilities
B. Telephone Line
C. Network Demarcation Point
D. RJ-31X Jack
E. Telephone
F. Alarm Dialing Equipment
G. Answering System
H. Unused RJ-11 Jack
I. Fax Machine
J. Computer
Note: The REN is used to determine the number of devices that may be connected to a telephone line. Excessive
RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all
areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be
connected to a line, as determined by the total RENs, contact the local telephone company.
Connection to telephone company provided coin service is prohibited. Connection to party lines service is
subject to state tariffs.
3.2 System Planning & Programming
It pays to plan ahead - use the tables in appendices A and B at the end of this guide to register the intended
location of each detector, the holder and assignment of each transmitter.
8
Customer Premises Equipment And Wiring
D
C
E
In the case that RJ31X is not available (consult your
telephone company or a qualified installer), the
telephone line
PowerMaster-10 unit first and then all other home
equipment should be connected to PowerMaster-10
"Phone"
F
H
I
G
should be connected
J
E
H
E
to the
outlet.
D-302756
